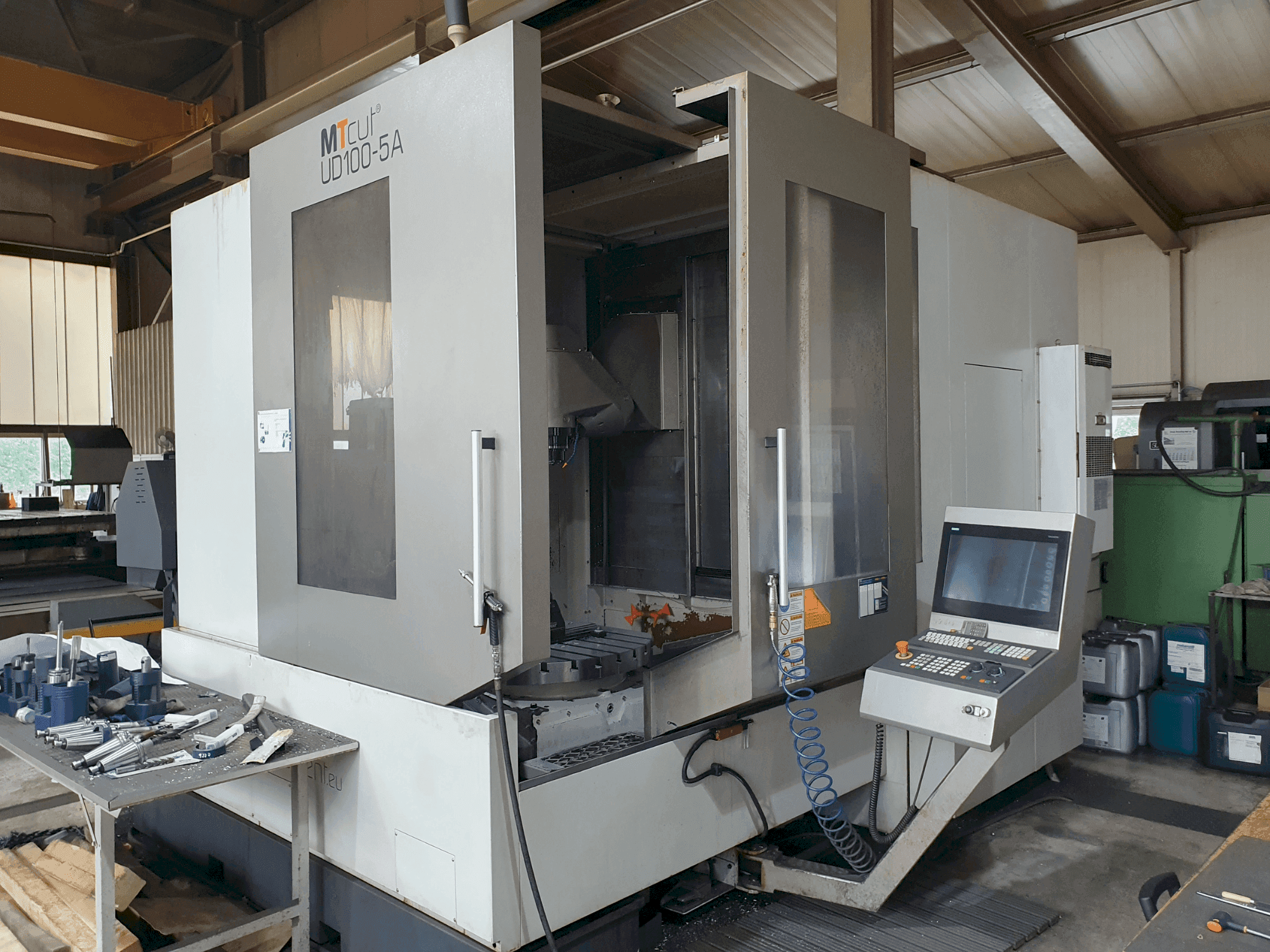

This 5-axis MTcut UD100-5A was manufactured in 2017 and features a robust design with a 1,000 mm X-axis, 800 mm Y-axis, and 700 mm Z-axis. It includes a 52-position tool changer, integrated rotary table, and a milling swivelling head with a 14,000 rpm spindle. Ideal for complex machining tasks, the MTcut UD100-5A machining center we have for sale is immediately available. Contact us for further details regarding this machining center.
Overview
- brand: MTcut
- year: 2017
- MODEL: UD100-5A
- application type: Milling
- Location: Germany
- machine type: Machining centers (universal)
- availability: Sold
Technical Information - MTcut UD100-5A
Main drive
- Number of spindles: 1
- Spindle speed range: 14000 rpm 1/MIN
- Spindle motor power: 29 kW
- Number of axis: 5
Movement
- X-AXIS Movement: 1000 mm
- Y-AXIS Movement: 800 mm
- Z-AXIS Movement: 700 mm
- B-AXIS Movement: 0-180º MM
- C-AXIS Movement: 0.001 x 360º MM
Tools
- Type of tool holder: SK40
Additional Information
- Technical Machine Benefits:
- - Torque: 160 nm // milling swivelling head features: torque motor, hydraulic clamping, swivelling range 0-180º, infinitely variable, 14,000 rpm, 160 nm torque, drive power 29 kw, separate spindle cooling
- - Spindle nose to table distance: 5-750 mm
- - Machine table dimensions: Ø 1,000 mm x 800 mm
- - T-slots in the table: 7 // t-slot width: 18 mm h8 // t-slot spacing: 100 mm
- - Feed rate: 1-20,000 mm/min
- - Positioning accuracy: ± 0. 005 mm/300 mm // repeat accuracy: ± 0. 003 mm
- - Integrated rotary table features: 360º stepless, hydraulic clamping, Ø1000mm x 800mm
- - General features: 52-position tool changer with double arm gripper, coolant and compressed air gun, chip conveyor, coolant device, electronic handwheel, work area light
- - Spindle cooling: water cooled
- - Ell gear x/y/z: 24/24/24 m/min
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
