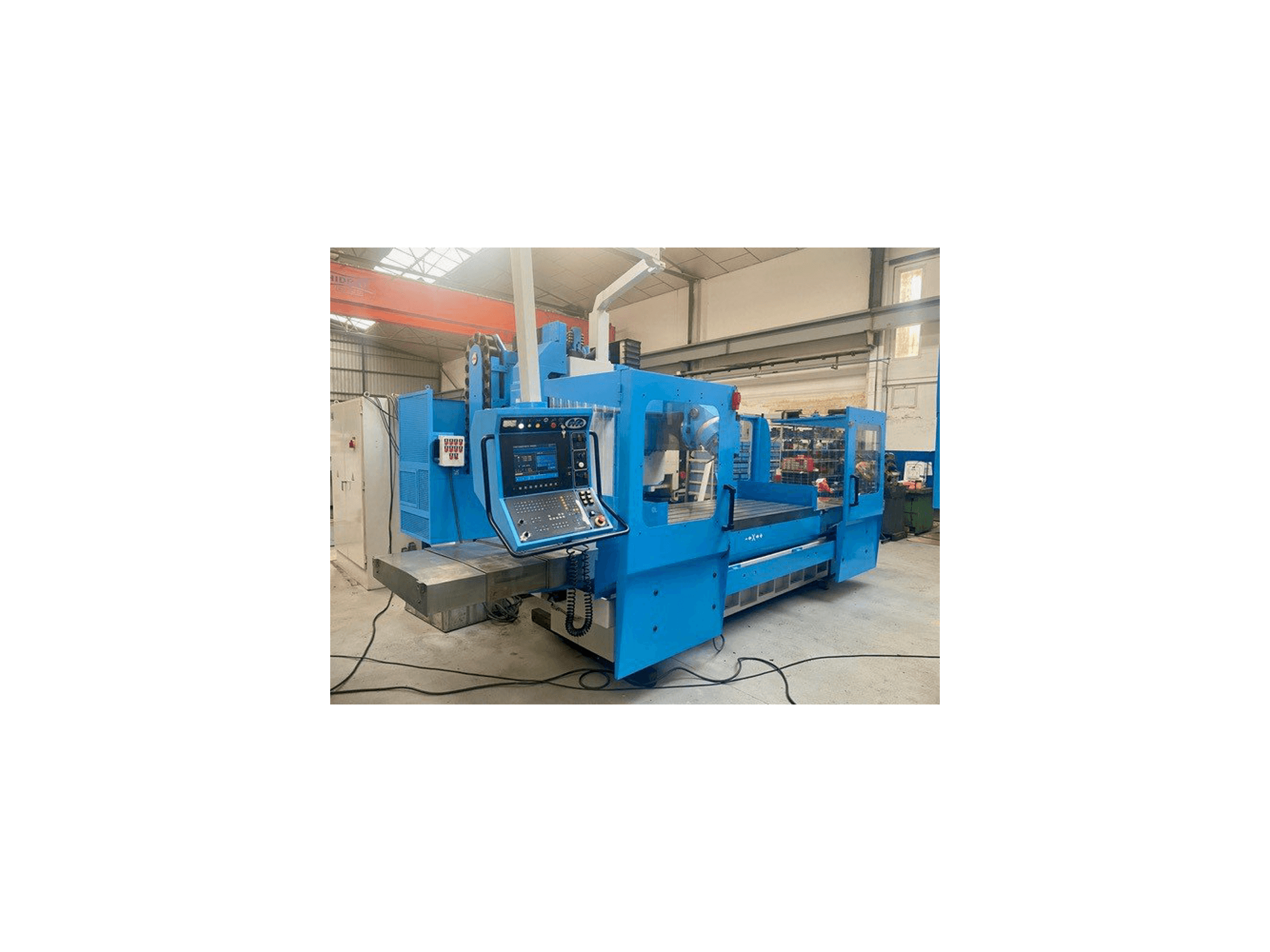

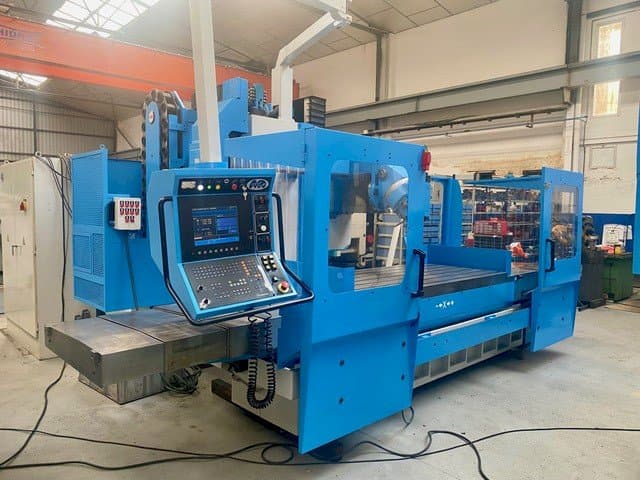

MTE BF 2200 Milling machine

This MTE BF 2200 Milling machine was made in 1997 in Spain. It is equipped with a Heidenhain TNC 407 control unit and has 5 axis. The machine has a spindle speed of 2500 rpm and an Automatic Head.

Overview

brand: MTE
year: 1997
MODEL: BF 2200
application type: Milling
Location: Spain
machine type: Gantry Milling Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - MTE BF 2200

General Data

Measurements width: 5800 mm
Measurements depth: 3960 mm
Measurements height: 3000 mm
Machine weight: 14500 kg

Control Unit

Model: TNC 407
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 2500 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 2000 mm
Y-AXIS Movement: 1000 mm
Z-AXIS Movement: 1000 mm

Table

Outer length: 2200 mm
Outer width: 1000 mm

Tools

Slots in storage: 24
Max tool diameter: 250 mm
Max tool length: 350 mm
Type of tool holder: BT-50

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Automatic spindle
- - Electronic handweell
- - Automatic head.
Qualitative Machine Benefits:
- - Totally review
- - Good status

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
