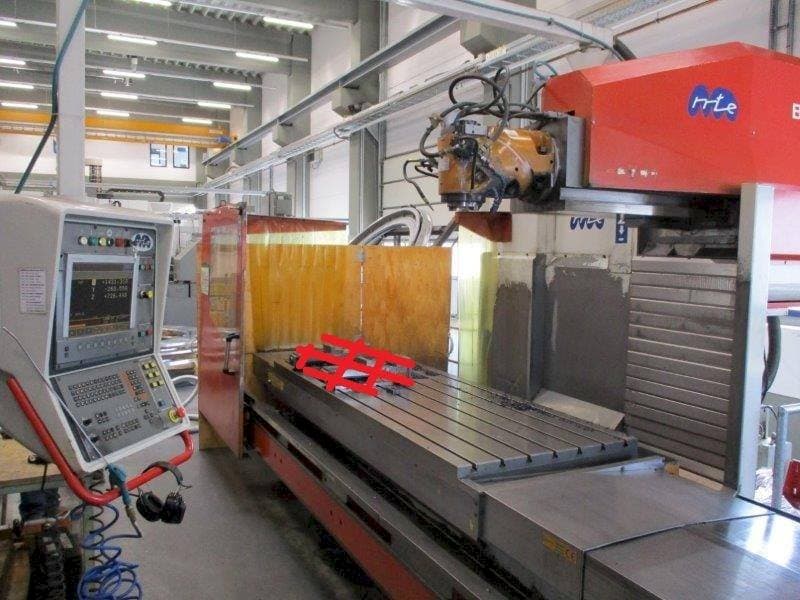

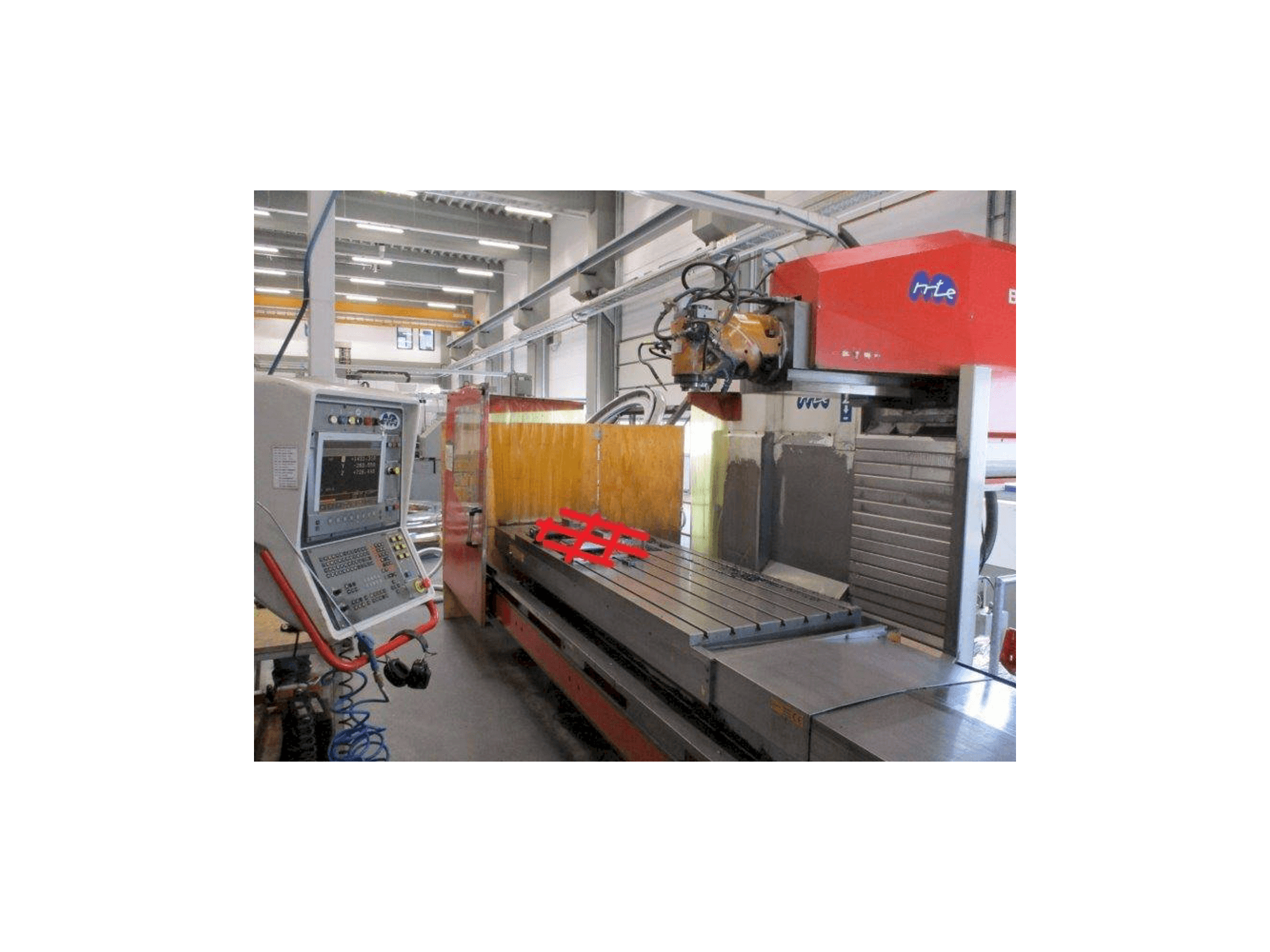

This MTE BF-2700 Milling Machine was manufactured in the year 2001 and overhauled in 2019. It has a total record of 116498 hours, of which 30637 are power on hours and 8079 are running time. It is operated through a Heidenhain TNC 426 control unit. This model counts with a spindle speed up to 3000 rpm and a table dimension of 2700 x 1000 mm. It includes an electronic handwheel and a coolant device.

Overview

brand: MTE
year: 2001
MODEL: BF-2700
production hours: 116498
application type: Milling
Location: Germany
machine type: Gantry Milling Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - MTE BF-2700

General Data

Measurements width: 7000 MM
Measurements depth: 3000 MM
Measurements height: 3000 MM

Control Unit

Model: TNC 426
Brand: HEIDENHAIN

Main drive

Spindle speed range: 3000 1/MIN
Tool taper: SK 50
Number of axis: 2

Movement

X-AXIS Movement: 2500 mm
Y-AXIS Movement: 1000 mm
Z-AXIS Movement: 1000 mm

Table

Outer length: 2700 mm
Outer width: 1000 mm

Media

Power consumption: 40 kW

Additional Equipment

- Electronic handwheel
- Coolant device
- Accessories approx. 5 LM

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Working area: 2500 x 1000 x 1000 mm
- - Space requirement approx. 8000 x 5000 x 3000 mm
- - Spindle cooling
- - Switch cabinet
Qualitative Machine Benefits:
- - Overhaul in 2019

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
