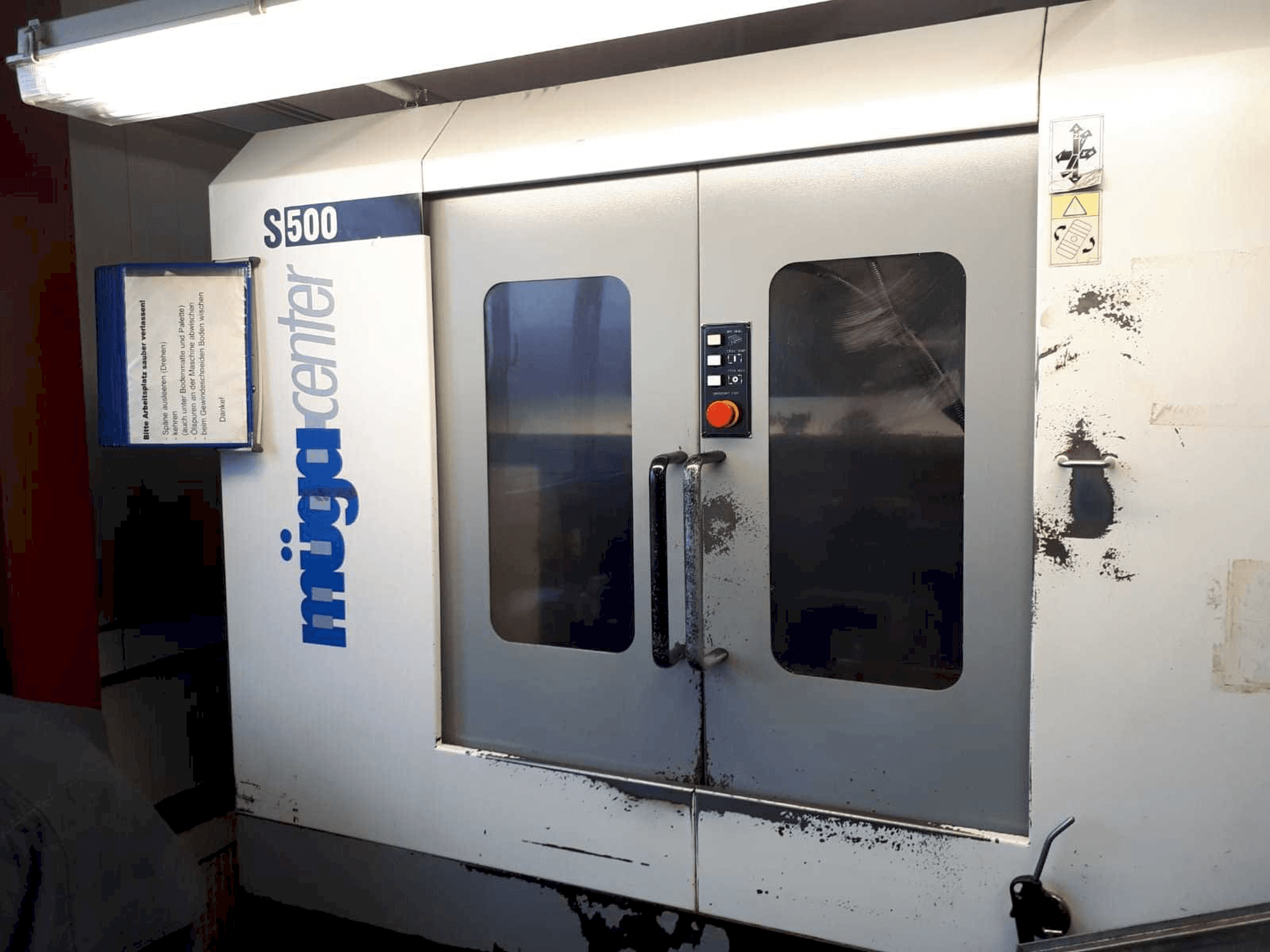

Müga S500 Vertical Machining Center

This Müga S500 Vertical Machining Center was built in 2004. This machine is operated through a control unit of the same brand. This 3 + 4 axis machine can work with a spindle speed range of 60 - 12000 rpm.

Overview

brand: Muga
year: 2004
MODEL: S500
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold

Technical Information - Muga S500

General Data

Measurements width: 1996 mm
Measurements depth: 4130 mm
Measurements height: 2370 mm
Machine weight: 5250 kg

Main drive

Number of spindles: 1
Spindle speed range: 60 - 12000 1/MIN
Number of axis: 3 + 4

Movement

X-AXIS Movement: 500 mm
X-AXIS Rapid traverse: 36 m/min
Y-AXIS Movement: 400 mm
Y-AXIS Rapid traverse: 36 m/min
Z-AXIS Movement: 350 mm
Z-AXIS Rapid traverse: 30 m/min

Tools

Type of tool holder: BT 30

Media

Main electronic connection: 400V - 3 phases 50Hz
Power consumption: 30 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Axes: 3 + 4 axes
- - Feeder: 4x10 mm2

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

müga - center S500 Platzbedarf .pdf
