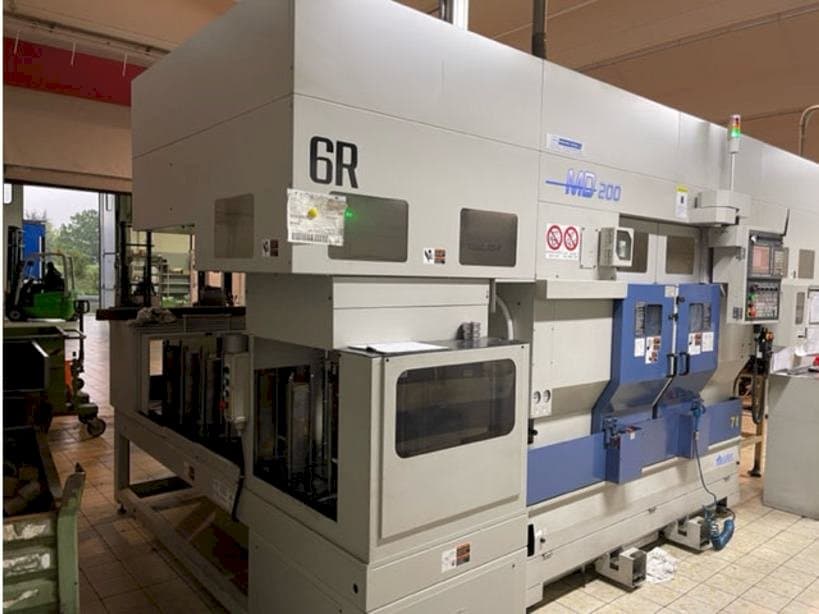

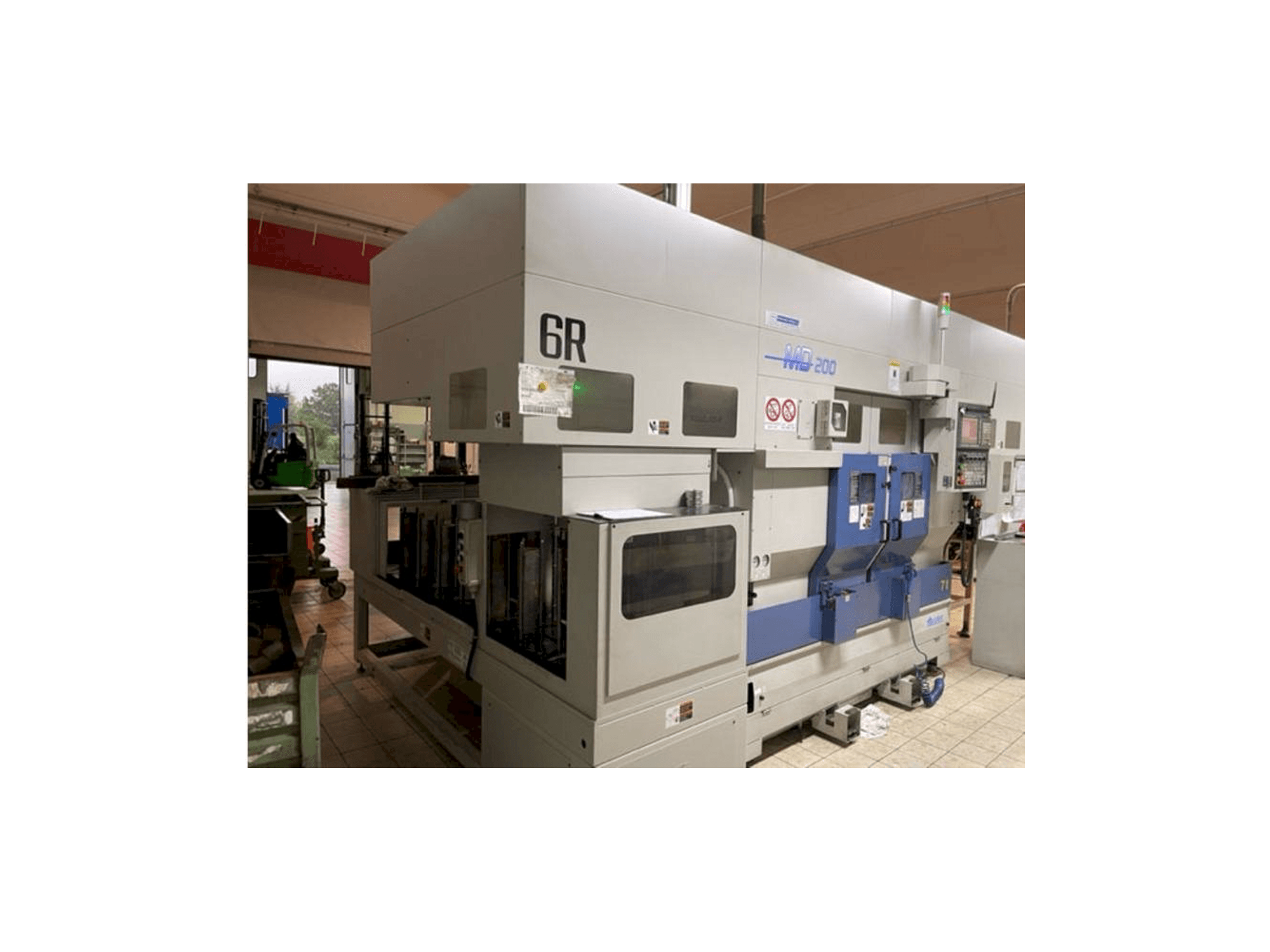

Muratec MD 200 Lathe

This Muratec MD 200 Lathe was manufactured in the year 2017 in Japan. It is equipped with a Fanuc CNC control unit. The machine has a spindle speed of 2000 rpm, is in good condition and well maintained.

Overview

brand: Muratec
year: 2017
MODEL: MD 200
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Muratec MD 200

General Data

Measurements width: 3200 mm
Measurements depth: 4840 mm
Measurements height: 2200 mm
Machine weight: 7400 Kg

Control Unit

Model: CNC
Brand: FANUC

Main drive

Spindle speed range: 2000 1/MIN
Spindle motor power: 11 kW

Media

Power consumption: 73 kVa

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle nose asa 6
- - Turnable diameter 200 mm
- - Self-centering diameter 254 mm
- - Distance between spindles 440 mm
- - Bar passage 65 mm
- - Turnable length 100 mm
- - Number of secondary spindle revolutions 2000
- - Number of tool places in the first turret 12
- - Motorized number of first turret 12
- - X axis travel first turret 190 mm z axis travel first turret 170 mm
Qualitative Machine Benefits:
- - Number of second turret tool places 12
- - Second turret motorized number 12
- - X axis travel second turret 190 mm
- - Z axis travel second turret 170 mm rapid feeds linear axes x y z 18 m / min
- - Gantry loader yes
- - Maximum capacity of the gantry 8 x 2 kg maximum diameter of the piece that can be transported 200 mm
- - Maximum transportable piece length 100 mm
- - Stoker or blanks warehouse yes
- - Pallet number 14
- - Chip conveyor belt

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
