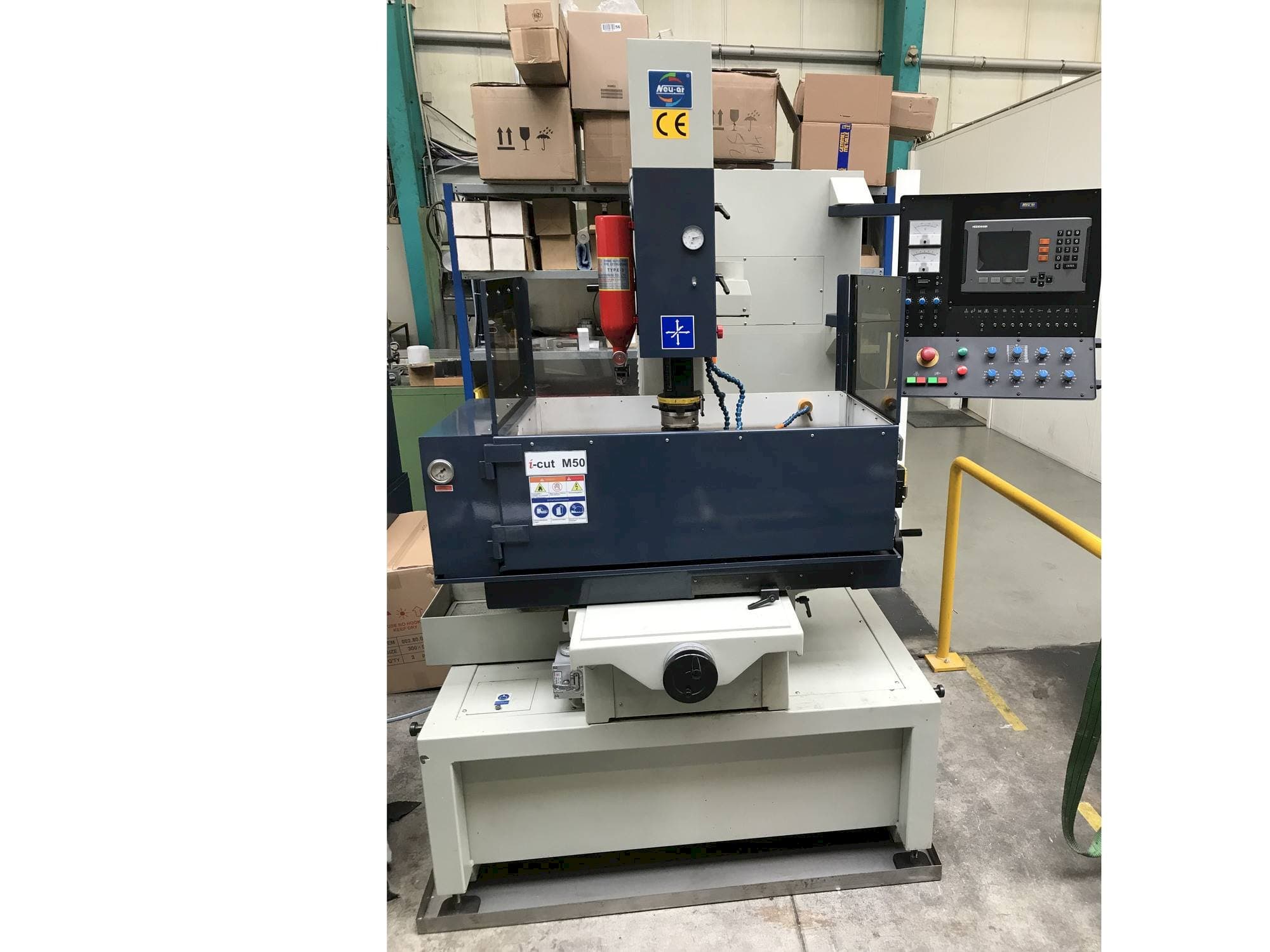

Neuar i-cut M50 Erosion machine

This Neuar i-cut M50 Erosion machine was manufactured in 2014. It is operated through a Heidenhain control unit. This 3 axis machine counts with a table dimensions of 630 x 360 mm, and can work with a max. workpiece weight 500 kg.

Overview

brand: Neuar
year: 2014
MODEL: i-cut M50
application type: EDM
Location: Germany
machine type: Wire EDM Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Neuar i-cut M50

General Data

Measurements width: 1400 mm
Measurements depth: 1380 mm
Measurements height: 2200 mm
Machine weight: 1350 kg

Control Unit

Brand: HEIDENHAIN

Main drive

Number of axis: 3

Movement

X-AXIS Movement: 350 mm
Y-AXIS Movement: 250 mm
Z-AXIS Movement: 200 mm

Workpiece

Workpiece weight: 500 kg

Table

Outer length: 630 mm
Outer width: 360 mm

Media

Main electronic connection: 400V, 3 phases, 50Hz
Power consumption: 3.3 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Working tank dimensions 940 x 530 x 350 mm
- - Distance z-axis and work table 520 mm
- - Manual additional travel in z 200 mm
- - Max. Electrode weight 50 kg
- - Dielectric quantity in filter system 300 liters
- - Max. Removal rate 420 mm3 / min
- - Min. Wear < 0. 1 %
- - Best achievable surface finish < ra 0. 18 μm
- - Max. Working current 50 a

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
