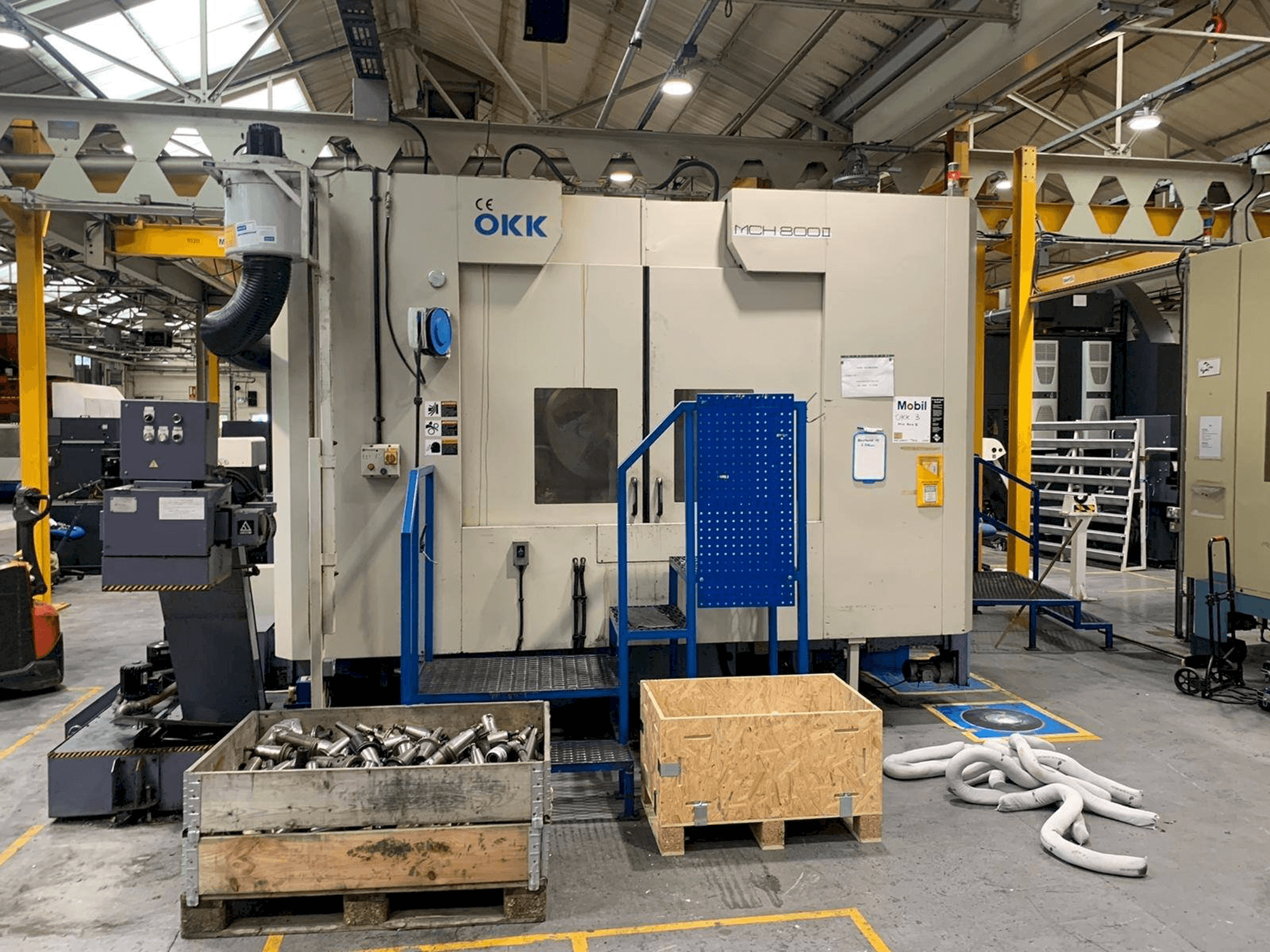

OKK MCH 800II Horizontal Machining Center

This OKK MCH 800II Horizontal Machining Center was manufactured in 2002. This reliable machine incorporates a 5-axis single pallet, a swarf conveyor and a gearbox among other technical benefits.

Overview

brand: OKK
year: 2002
MODEL: MCH 800II
application type: Milling
Location: United Kingdom
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - OKK MCH 800II

Control Unit

Model: 16 IM
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 4500 1/MIN
Spindle motor power: 18.5 kW

Movement

X-AXIS Movement: 1220 mm
X-AXIS Working Feed: 5m/min
X-AXIS Rapid traverse: 12M/MIN
Y-AXIS Movement: 1020 mm
Y-AXIS Working Feed: 5m/min
Y-AXIS Rapid traverse: 12M/MIN
Z-AXIS Movement: 920 mm
Z-AXIS Working Feed: 5m/min
Z-AXIS Rapid traverse: 12M/MIN

Table

Outer length: 800 mm
Outer width: 800 mm

Tools

Slots in storage: 60
Max weight: 25 kg
Max tool diameter: 120/240 mm
Max tool length: 500 mm
Type of tool holder: DIN50

Media

Chip conveyor: Yes

Additional Equipment

- tooling accesories

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 5-axis single pallet
- - Swarf conveyor
- - Through spindle coolant
- - Faceplate size 530 mm
- - Center height 445 mm
- - Gearbox
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
