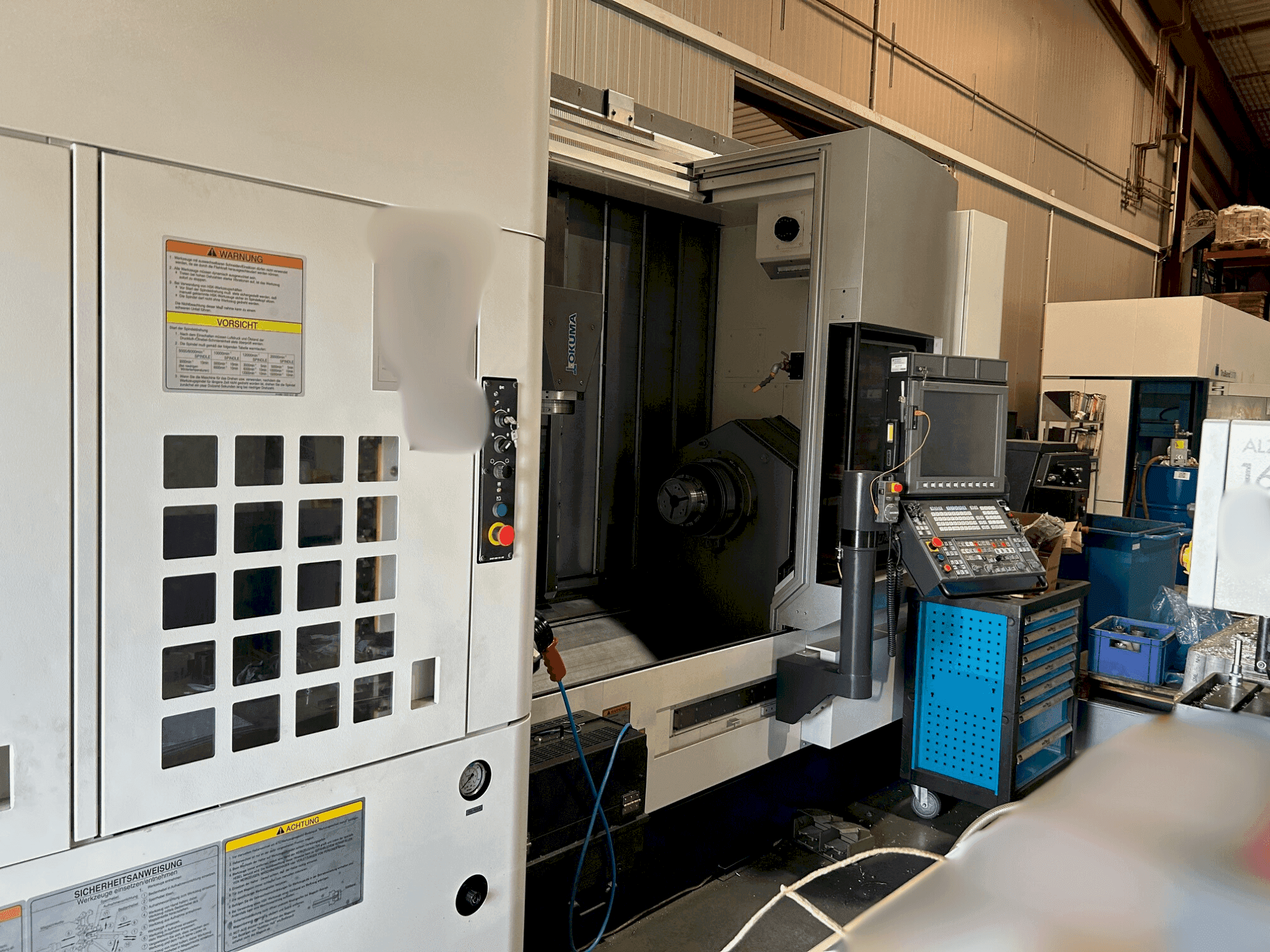

Okuma - Multus U3000 1SW 1500DE-MIL-OKU-2023-00001

Additional Equipment

• - Capto C6 tool system for H1 turret
• - Internal coolant supply for rotating tools, pump with pressure max 20 bar including bag filter, external cooling of tool spindle, pump with pressure max 3 bar
• - Tool magazine with 80 pockets
• - External air supply and through the tool spindle for turning holders and rotating tools
• - Hinge belt tensioner Interlit ISF
• - Drum trough filter TMF 300 with clean tank 980
• - Workpiece gripper programmable, for workpiece size ø 70 x 150 mm
• - 80 tool positions
• - Spindle front bearing diameter 140mm / Spindle bore diameter 91mm
• - Counter spindle 420 Nm; 5000 1/minSpindle front bearing diameter 120mm

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Swing over saddle: 650 mm
  • - Distance between centres: 1500 mm / turning length approx. 1500 mm
  • - Large swing over saddle (ø650 mm) and maximum machining diameter (650 mm)
  • - Extensive travel ranges for versatile machining operations
  • - Torque 427nm / h1 turret / b axis 0. 001° / y=250mm
  • - Hollow clamping cylinder diameter 86mm
  • - Spindle bore diameter 80mm / travelling on w-axis
  • - C axis 360°; positioning accuracy 0. 001° / y axis with stroke +125 / -125 = 250mm / b axis 240°; positioning in 0. 001°
• Qualitative Machine Benefits:
  • - Robust and precise with a large floor space and significant mass for stability
  • - Tool spindle / 120 nm; 12,000 1/min / ikz; 20 bar / machine management macman
  • - Tool height compensation in y / circular thread milling x/z/y/b/ hi-cut pro high-speed control
  • - 10 workpiece zero points / electrical spindle orientation / capto c6 / hinged belt chip conveyor interlit isf
  • - Drum trough filter; clean tank 980l / interface bar loading magazine / workpiece collecting device for diameter 70 x 150mm
  • - Robot loader interface / in-process measuring renishaw rmp60 / control extension unit kit one-touch igf m d
  • - 3d machine mode

Extra information

• - Machine still under power
