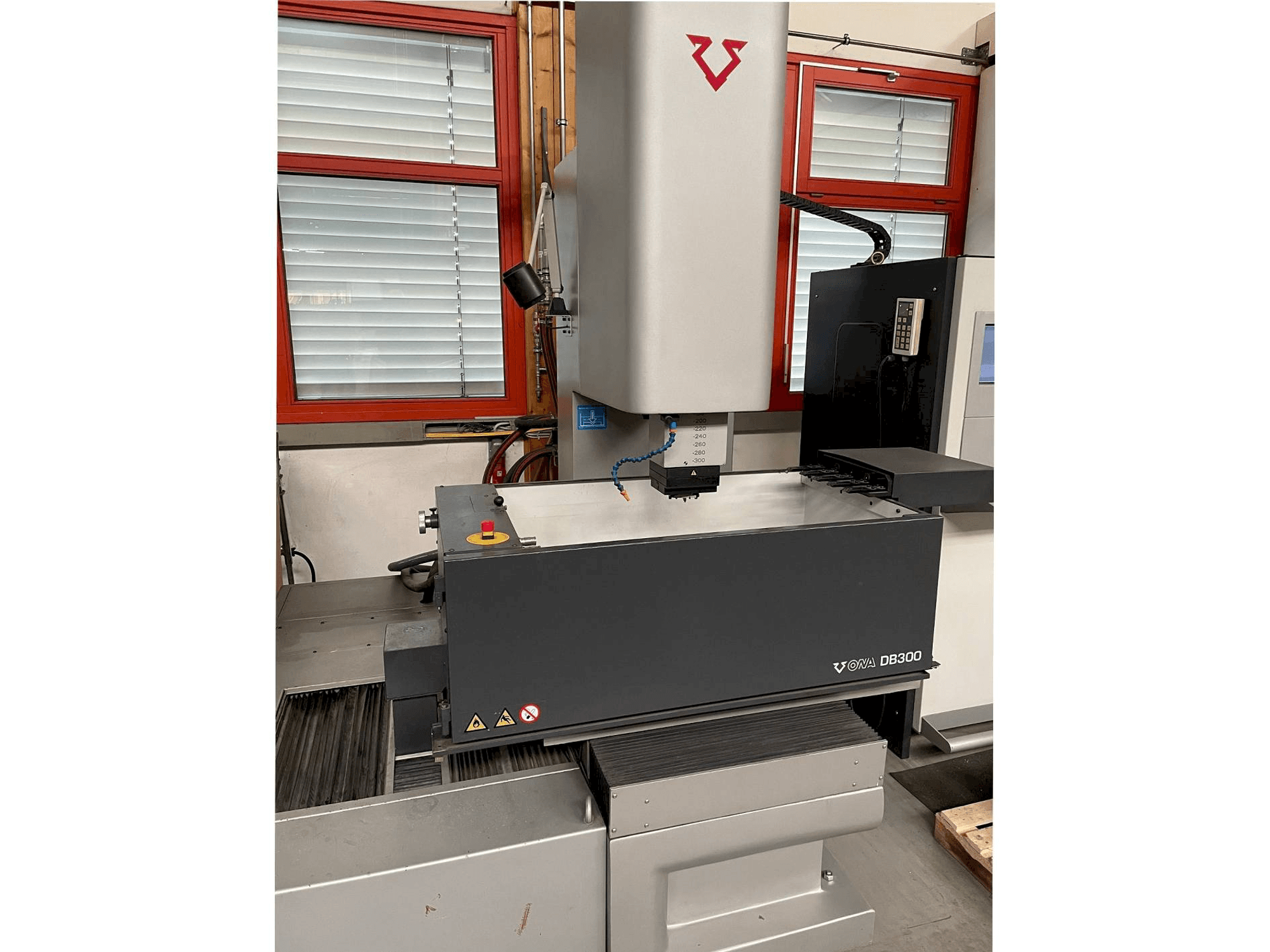

ONA D830 erosion machine

This ONA DB300 erosion machine was manufactured in 2005 in Spain. It is operated through a control unit of the same brand. This 2 axis machine has been working for 3200 hours. It can work with a workpiece weight of 750 kg and a workpiece height of 265 mm. Includes an electrode holder travel of 300 mm.

Overview

brand: ONA
year: 2005
MODEL: DB300
production hours: 3200
application type: EDM
Location: Germany
machine type: Wire EDM Machine
availability: Sold

Technical Information - ONA DB300

General Data

Measurements height: 2500 mm
Machine weight: 1700 kg

Main drive

Number of axis: 4

Movement

X-AXIS Movement: 400 mm
Y-AXIS Movement: 300 mm
Z-AXIS Movement: 300 mm

Workpiece

Workpiece weight: 750 kg

Table

Outer length: 650 mm
Outer width: 400 mm
Height adjustment: 265 mm

Additional Equipment

- Programmable C-axis
- 3 pressure and 1 suction flushing
- Internal flushing by C-axis
- Manual remote control
- 5-fold electrode changer
- Special program for deep slots
- Special program for sprue tunnel
- Automatic wear compensation
- Generator with VDI 0 stage for polishing
- EROWA chuck for electrodes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Electrode holder travel 300 mm
- - Maximun electrode weight 100 kg
- - Maximun static electrode weight on c-axis 50 kg
- - Maximun electrode weight on c-axis dynamic 12 kg
- - Maximun distance between electrode holder and table without c-axis/with c-axis 550/470 mm
- - Dimensions of the working container 1000x600x350 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
