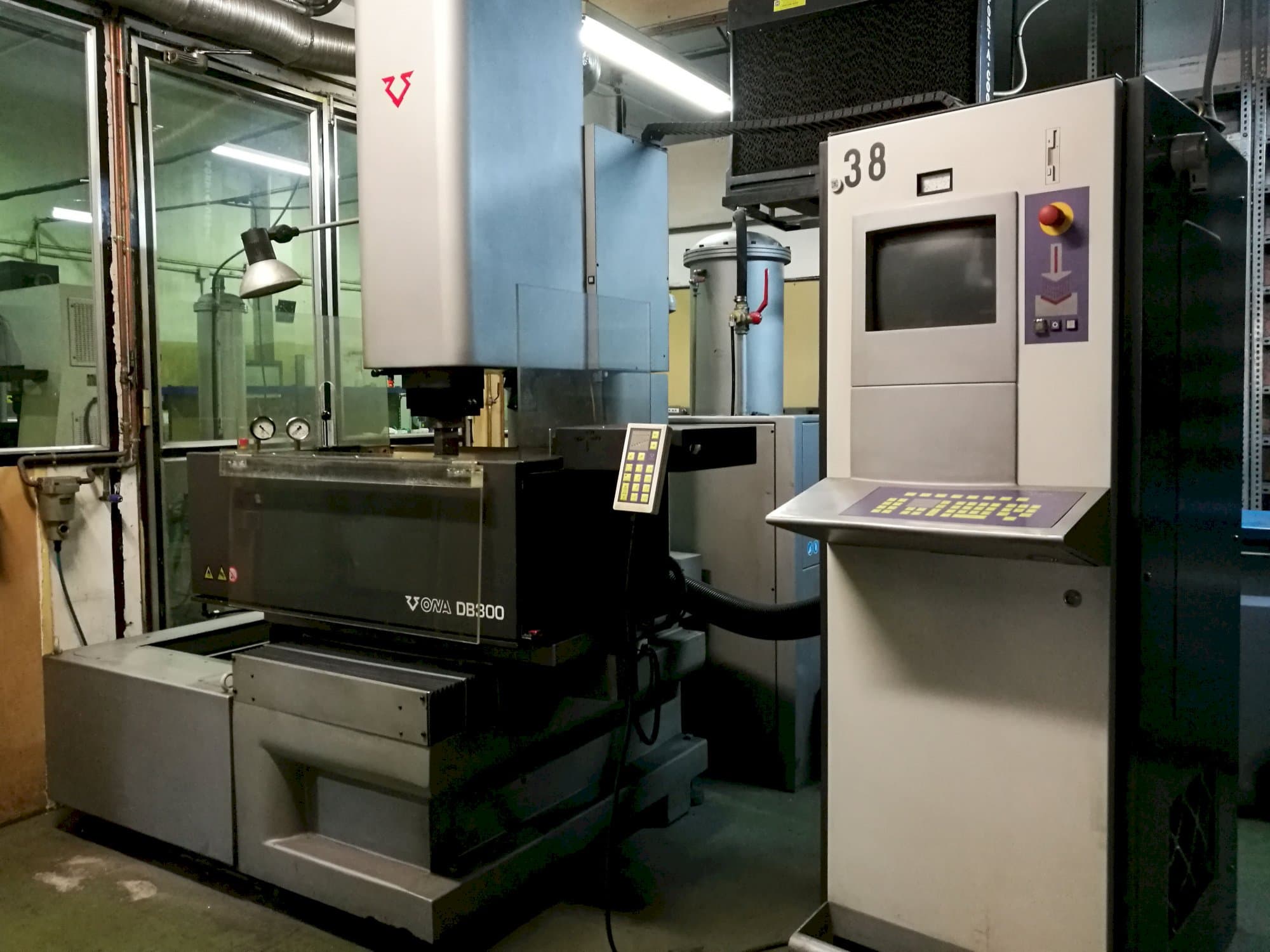

This ONA DB300 Erosion Machine from 2003 was manufactured in Spain and has a production history of 36591 working hours. Operated through an ONA Control unit, this machine counts with a moving table. During the past, it has mainly worked with steel producing moulds for the manufacturing industry.
Overview
- brand: ONA
- year: 2003
- MODEL: DB300
- production hours: 36591
- application type: EDM
- Location: Spain
- machine type: Wire EDM Machine
- availability: Sold
- control unit brand: FANUC
Technical Information - ONA DB300
General Data
- Measurements width: 3090 mm
- Measurements depth: 1950 mm
- Measurements height: 2500 mm
- Machine weight: 2610 mm KG
Control Unit
- CNC main language: Spanish
- CNC language customizable: Yes
- Brand: FANUC
Main drive
- Working current: 12.5 A
Movement
- X-AXIS Movement: 400 mm
- Y-AXIS Movement: 300 mm
Workpiece
- Workpiece z: 265 mm
- Workpiece weight: 350 kg
Table
- Outer length: 650 mm
- Outer width: 400 mm
Media
- Main electronic connection: 400 V
- Power consumption: 8.5 kVA
Additional Equipment
- - Tools
- - Collets
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
