ONA - KE 450ES-EDM-ONA-2004-00002

Name: ONA KE 450
Brand: ONA
SKU: ES-EDM-ONA-2004-00002
Price: 32000 EUR
Availability: InStock

32,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used ONA KE 450 - Wire EDM For Sale | gindumac.com

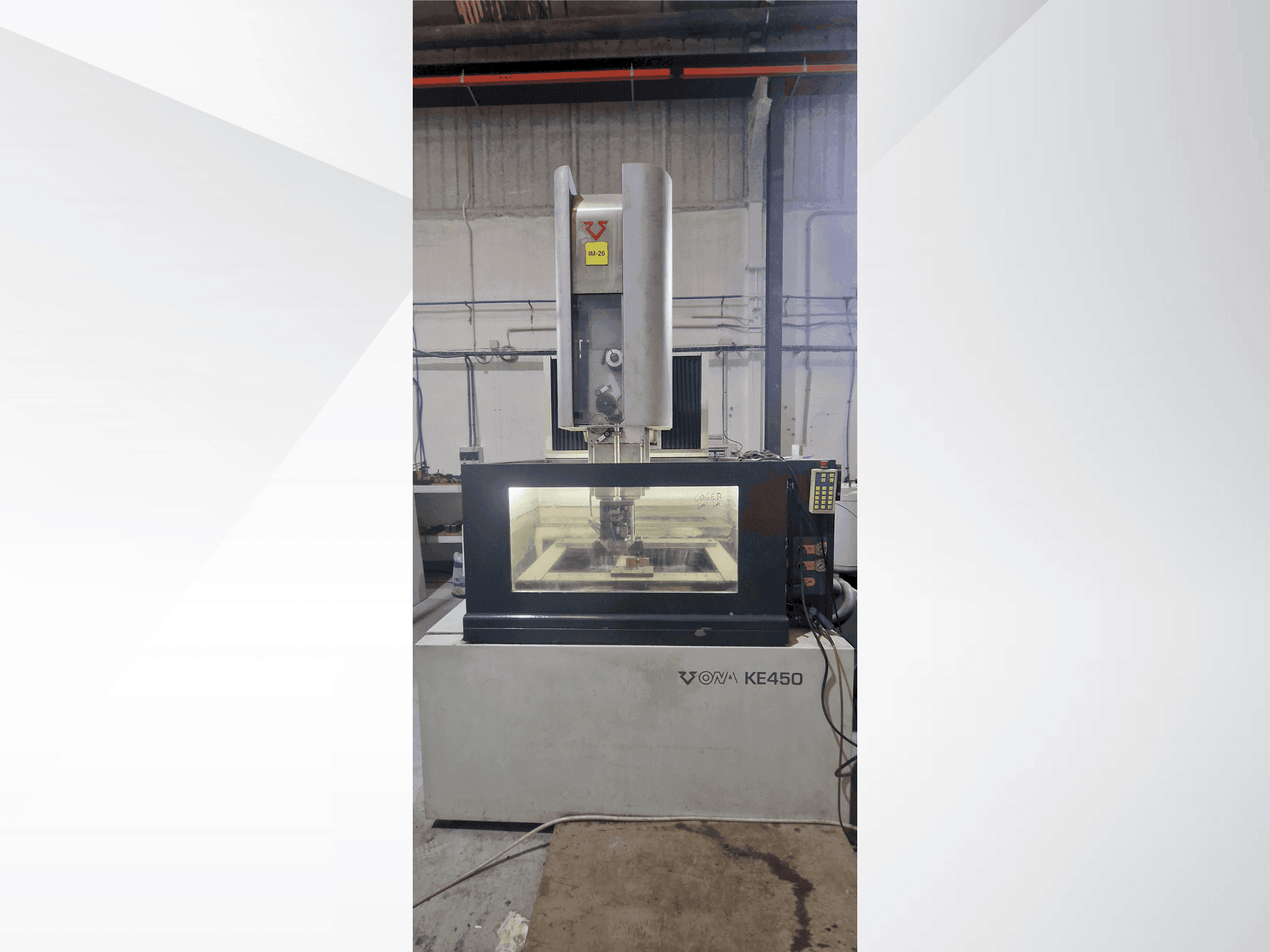

This 5-axis ONA KE 450 wire edm machine was manufactured in 2004. It offers precision and versatility for complex machining tasks. If you are looking to get high-quality EDM capabilities, consider the ONA KE 450 machine we have for sale. Contact us for more information.

Overview

brand: ONA
year: 2004
MODEL: KE 450
application type: EDM
Location: Spain
machine type: Wire EDM Machine
availability: Immediately

Technical Information - ONA KE 450

Main drive

Number of axis: 5

Movement

X-AXIS Movement: 700 MM
Y-AXIS Movement: 500 MM
Z-AXIS Movement: 400 MM
U/V Movement: 140 x 140 MM

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum workpiece size (x, y, z) (mm): 1200 x 950 x 400
- - Wire diameter (mm): 0. 10 - 0. 30
- - Wire spool compatibility: din 100 - din 125 - din 160 - din 200 - din 355
- - Taper cutting capability (at max z height): ±9° / 400 mm
- - Maximum taper angle: ±30° / 95 mm
- - Guide type: precision diamond-closed guide
- - Positioning resolution (x, y, u, v, z) (mm): 0. 001
- - Minimum achievable roughness (mm): 0. 001

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
