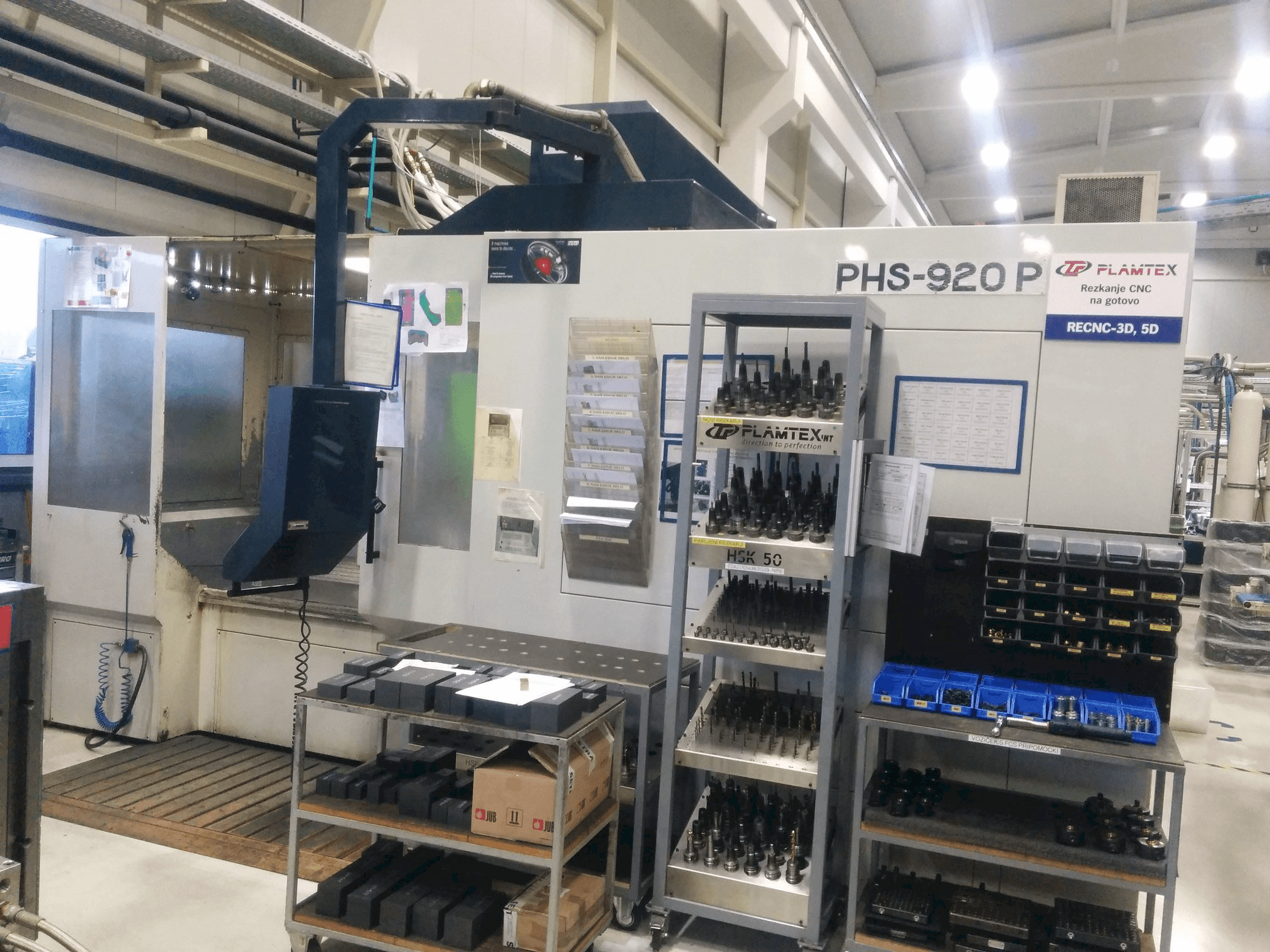

Parpas PHS 920P Milling Machine

This Parpas PHS 920P Milling Machine was manufactured in Italy in the year 2003 and has been working for 48386 hours. This 5 axis machine is capable of working with a spindle speed up to 2000 rpm. This machine stands out for its table load of 4000 kg.

Overview

brand: Parpas
year: 2003
MODEL: PHS 920P
production hours: 48386
application type: Milling
Location: Slovenia
machine type: Gantry Milling Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Parpas PHS 920P

General Data

Measurements width: 2570 mm
Measurements depth: 5200 mm
Measurements height: 3300 mm
Machine weight: 12000 kg

Control Unit

Model: 530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 20000 1/MIN
Spindle motor power: 15 kW
Number of axis: 5

Movement

X-AXIS Movement: 2000 mm
Y-AXIS Movement: 1200 mm
Z-AXIS Movement: 500 mm

Table

Outer length: 2100 mm
Outer width: 850 mm
Number of tslots: 7
Distance between: 120 mm
Min distance between vertical spindle and table: 45 mm
Max distance between vertical spindle and table: 545 mm
Table load: 4000 kg

Tools

Max weight: 3 kg
Max tool diameter: 50 mm
Max tool length: 150 mm
Type of tool holder: HSK A50

Additional Equipment

- Chiller
- Air Dryer for spindle

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Atc with 20 positions with a heidenhain tool measuring system
- - Portal design optimised with fem analyze
- - 5 axis simultaneous machining
- - Spindle with direct drive, cooled with air/water and cnc controlled thermal
- - Compensation of z axis
- - Heidenhain touch probe for piece presenting and measuring
- - Feedrates: max 30m/min
Qualitative Machine Benefits:
- - Very rigid machine structure-portal design

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
