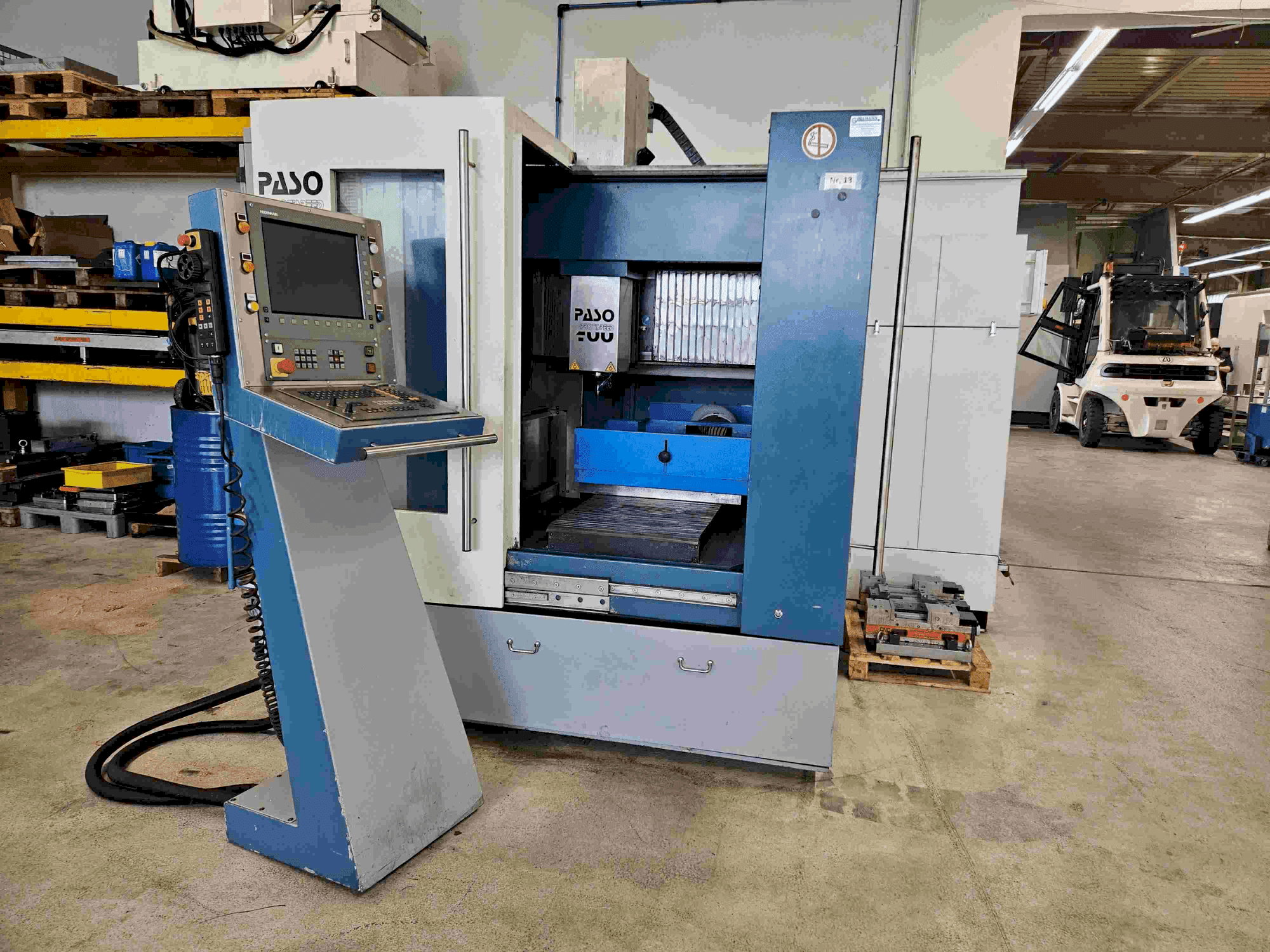

➤ Used PASO PS400 - 2004 - Vertical machining centre

This 3-Axis PASO PS400 was manufactured in 2004. A vertical machining centre that offers X-axis travel of 700mm, Y-axis of 440mm, and Z-axis of 400mm. It features a spindle speed range of 1000 to 24000 rpm and a 16-fold tool magazine. The work table measures 700x400mm and can handle a maximum load of 650 kg. The machine is also equipped with a dust removal system, ideal for milling graphite electrodes. Reach out for further details regarding this machine.

Overview

brand: PASO
year: 2004
MODEL: PS400
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold

Technical Information - PASO PS400

General Data

Measurements width: 1300 mm
Measurements depth: 1100 mm
Measurements height: 2450 mm
Machine weight: 4000 kg

Main drive

Number of spindles: 1
Spindle speed range: 1000-24000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 700 mm
Y-AXIS Movement: 440 mm
Z-AXIS Movement: https://gindumacgmbh.zendesk.com/sales/deals/171245964#:~:text=mm%20Z%2DAxis%3A-,400%20mm,-Workpiece%0AWorkpiece%20weight

Table

Outer length: 700 mm
Outer width: 400 mm
Table load: 650 kg

Additional Equipment

- Machine Specific Data
- Dust removal system

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Suitable for milling graphite electrodes due to dust removal system

Extra information

- Control system replaced in October 2022

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
