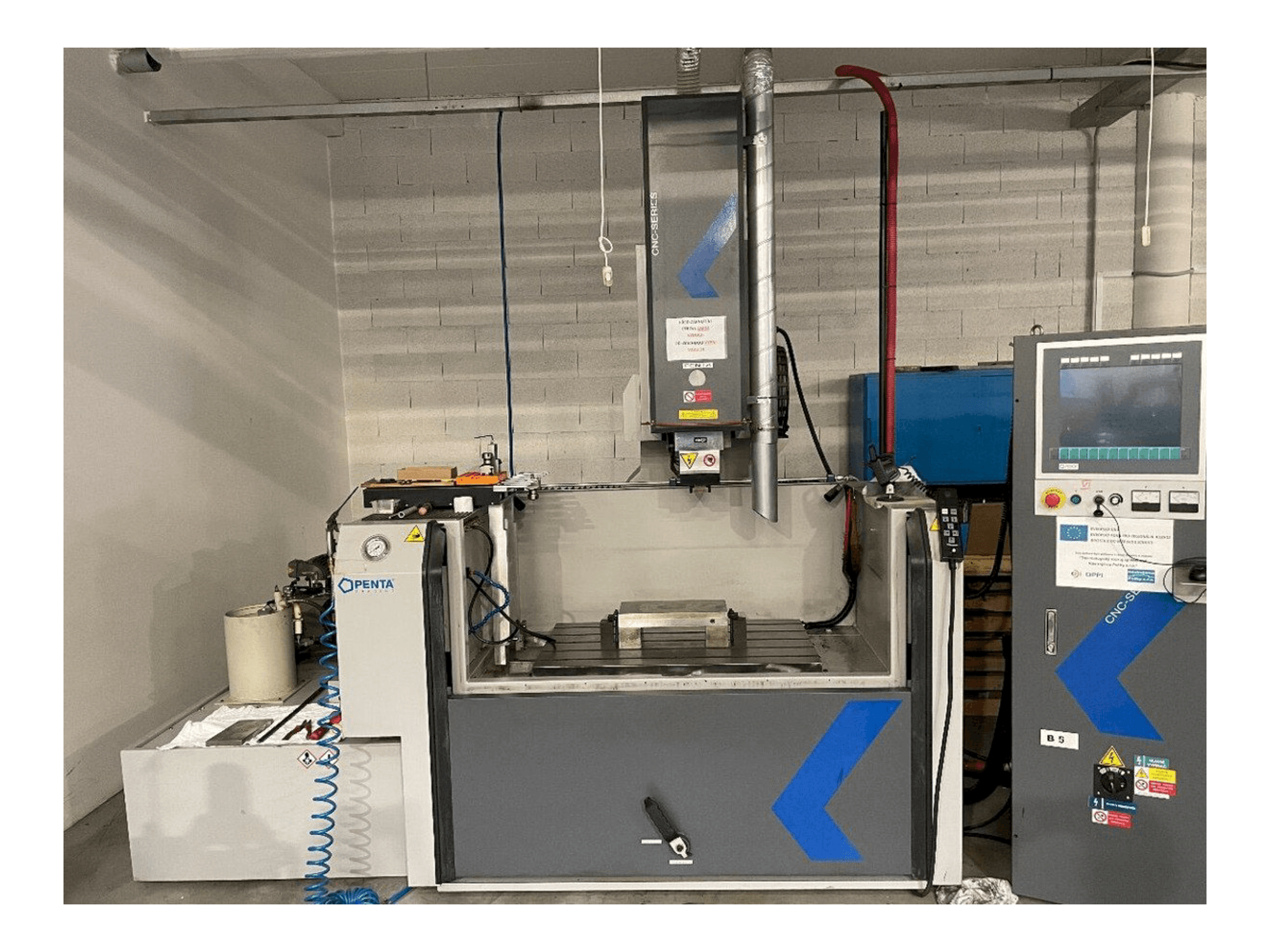

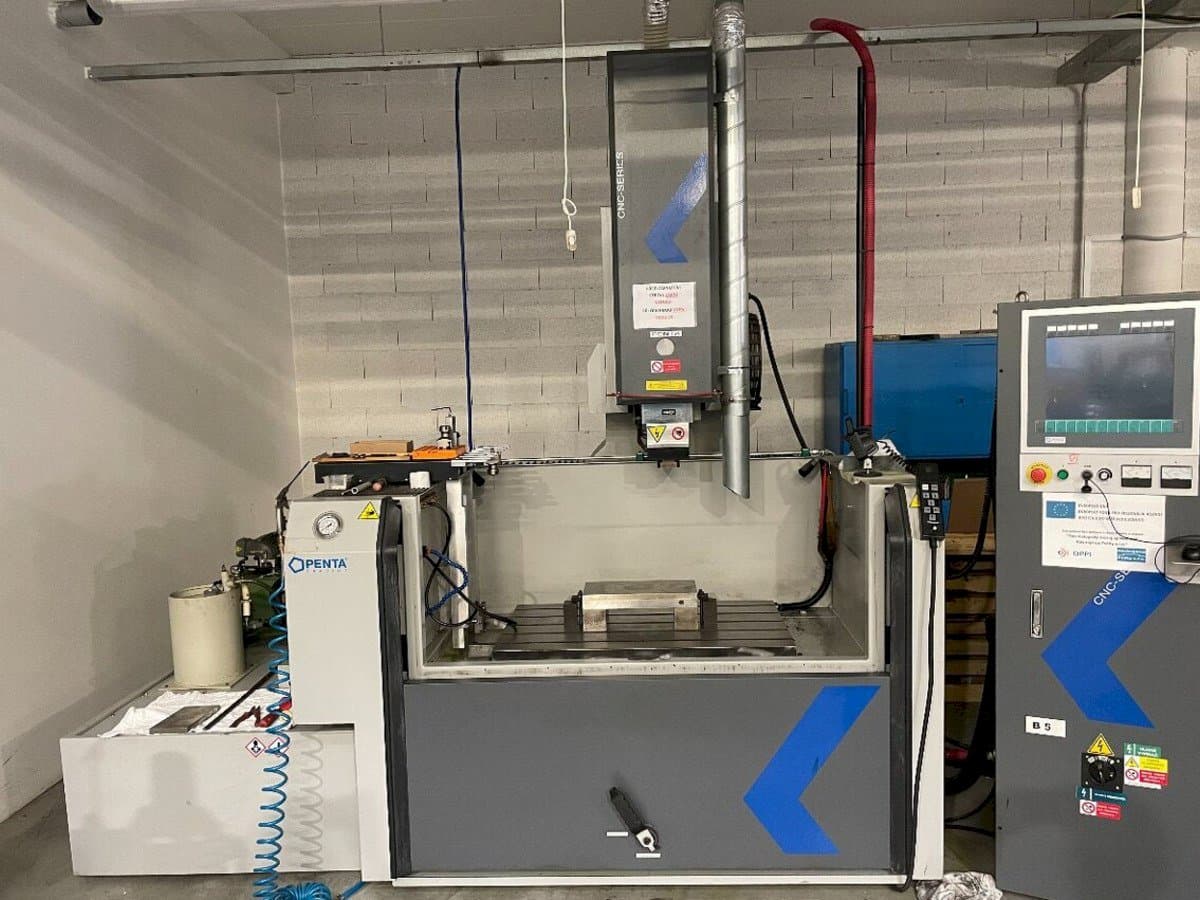

Penta 650G CNC Erosion machine

This Penta 650G CNC Erosion machine was manufactured in the year 2015 in Czech republic.

Overview

brand: PENTA
year: 2015
MODEL: 650G CNC
application type: EDM
Location: Czech Republic
machine type: Wire EDM Machine
availability: Sold

Technical Information - PENTA 650G CNC

General Data

Measurements width: 3200 mm
Measurements depth: 2700 mm
Measurements height: 2647 mm
Machine weight: 6300 kg

Movement

X-AXIS Movement: 600 mm
Y-AXIS Movement: 500 mm
Z-AXIS Movement: 500 mm

Workpiece

Workpiece weight: 4000 kg

Table

Outer length: 1000 mm
Outer width: 600 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tank dimensions x x y x z : 1400 × 800 × 500 mm
- - Table - spindle distance (min. - max. ): 220 - 720 mm
- - Dielectric (l): 720
- - Max. Weight of the electrode on the pinole: 400 kg
- - Filtration equipment, basic clamping set, central lubrication, new fillings
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
