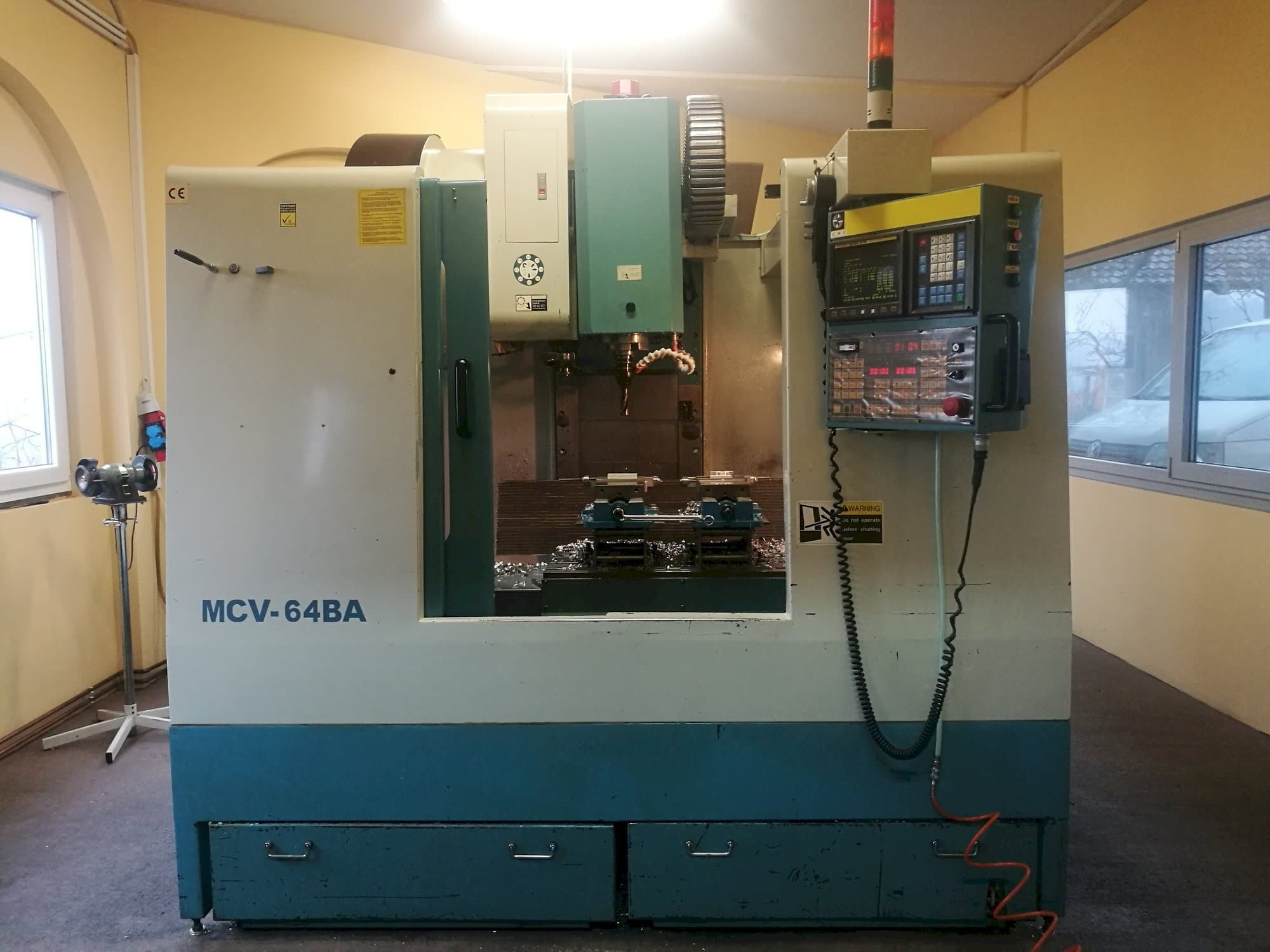

PJM MCV-64BA Vertical Machining Center

This PJM MCV-64BA Vertical Machining Center from 2000 was built in Taiwan and has a production time of 30000 hours. Operated through a FANUC 0-M Control unit, this machine can perform with a spindle speed up to 8000 rpm. During the past, it has mainly been working with aluminum for the automotive industry. It incorporates box guideways and presents perfectly good conditions.

Overview

brand: PJM
year: 2000
MODEL: MCV-64BA
production hours: 30000
application type: Milling
Location: Croatia
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - PJM MCV-64BA

General Data

Measurements width: 2200 mm
Measurements depth: 3000 mm
Measurements height: 2550 mm
Machine weight: 6000 kg

Control Unit

Model: 0-M
CNC main language: English
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 8000 rpm 1/MIN

Movement

X-AXIS Movement: 640 mm
Y-AXIS Movement: 500 mm
Z-AXIS Movement: 500 mm

Table

Outer length: 800 mm
Outer width: 450 mm
Number of tslots: 4
Distance between: 100 mm

Tools

Slots in storage: 24
Type of tool holder: BT40

Media

Main electronic connection: 380V / 50Hz / 3P
Power consumption: 15 kVA

Additional Equipment

- chip baskets
- RS232 for program transfer

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
