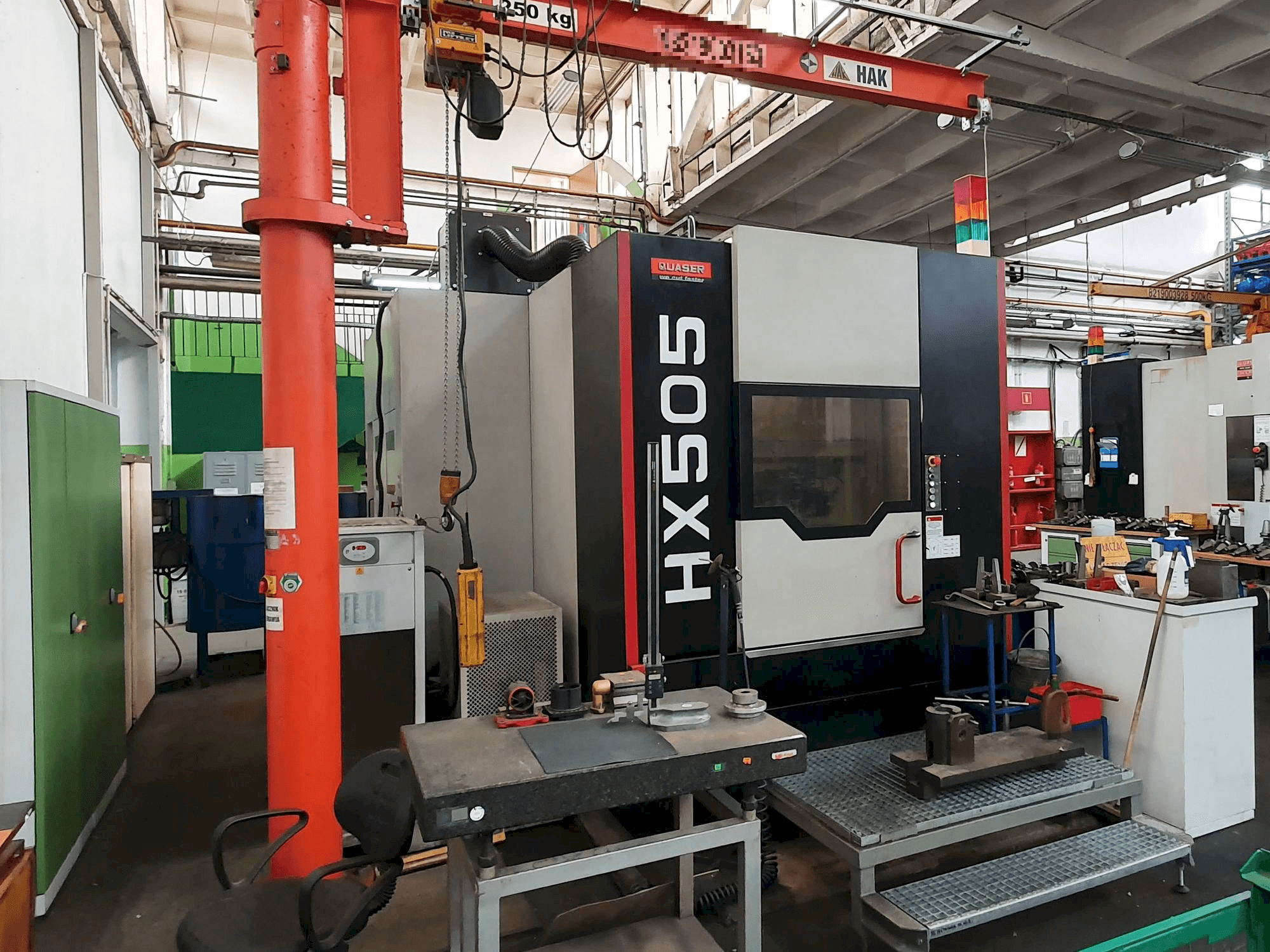

Quaser HX505 AP / 6B Horizontal Machining Center

This Quaser HX505 AP / 6B Horizontal Machining Center was built in Taiwan in the year 2014. It has a working record of 10328 production hours. It is operated with a FANUC Series 31i-B control unit. This machine can work with a spindle speed up to 6000 rpm.

Overview

brand: Quaser
year: 2014
MODEL: HX505 AP / 6B
production hours: 10328
application type: Milling
Location: Poland
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - Quaser HX505 AP / 6B

General Data

Measurements width: 3040 mm
Measurements depth: 4835 mm
Measurements height: 3030 mm
Machine weight: 13500 kg

Control Unit

Model: Series 31i-B
Brand: FANUC

Main drive

Spindle speed range: 6000 1/MIN
Spindle motor power: 27 kW
Tool taper: Taper BBT50

Movement

X-AXIS Movement: 762 mm
Y-AXIS Movement: 640 mm
Z-AXIS Movement: 840 mm

Table

Outer length: 500 mm
Outer width: 500 mm
Table load: 500 kg

Additional Information

Machine history

End product: Production of many spare parts
Industries: Automotive industry

Machine Benefits

Technical Machine Benefits:
- - Table index (º)1 (ops. 0,001)
- - Max. Workpiece (mm)Ø800xh900
- - Team magazine capacity (pieces)30 (opt. 40)
Qualitative Machine Benefits:
- - Full service documentation

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
