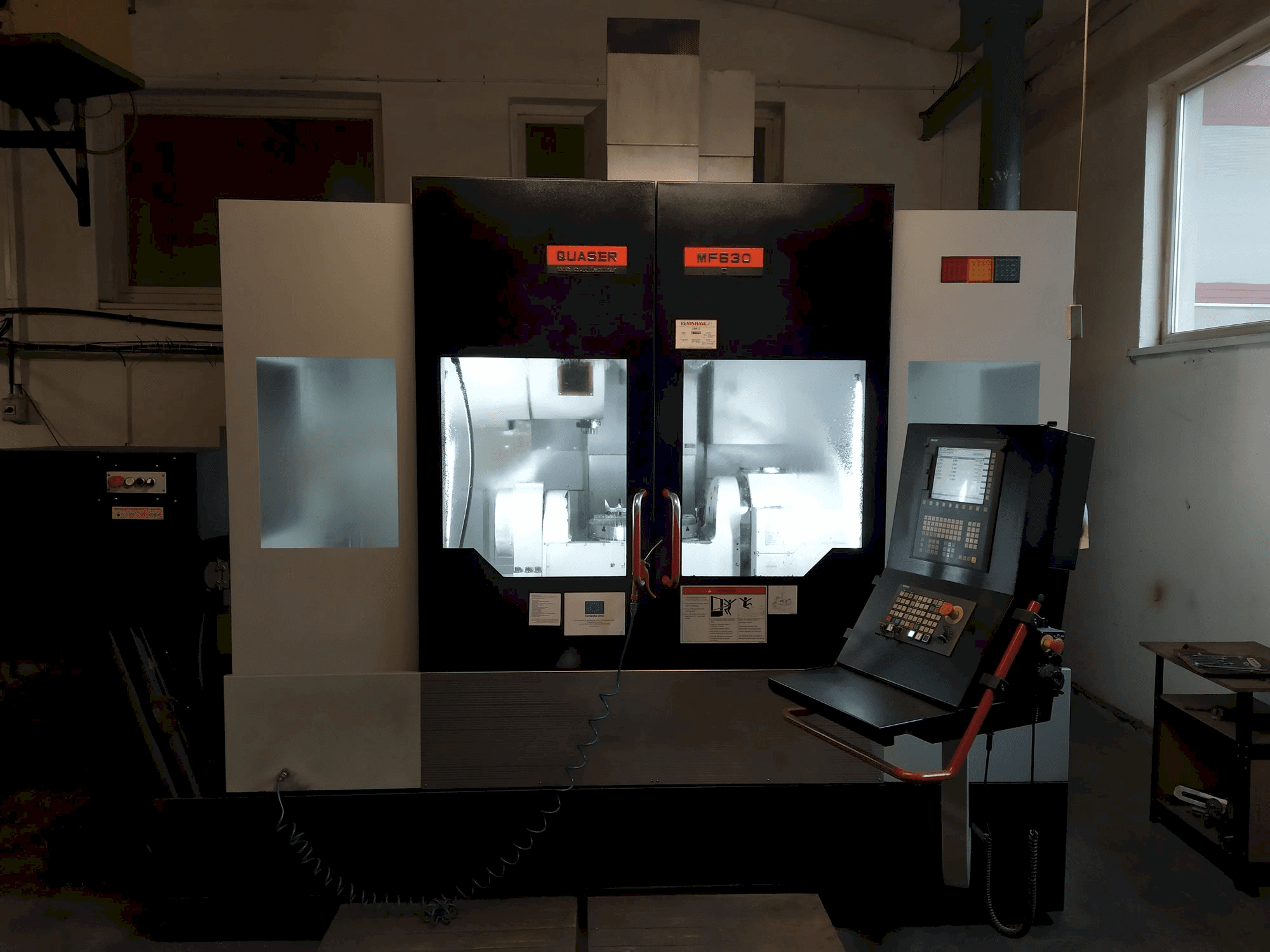

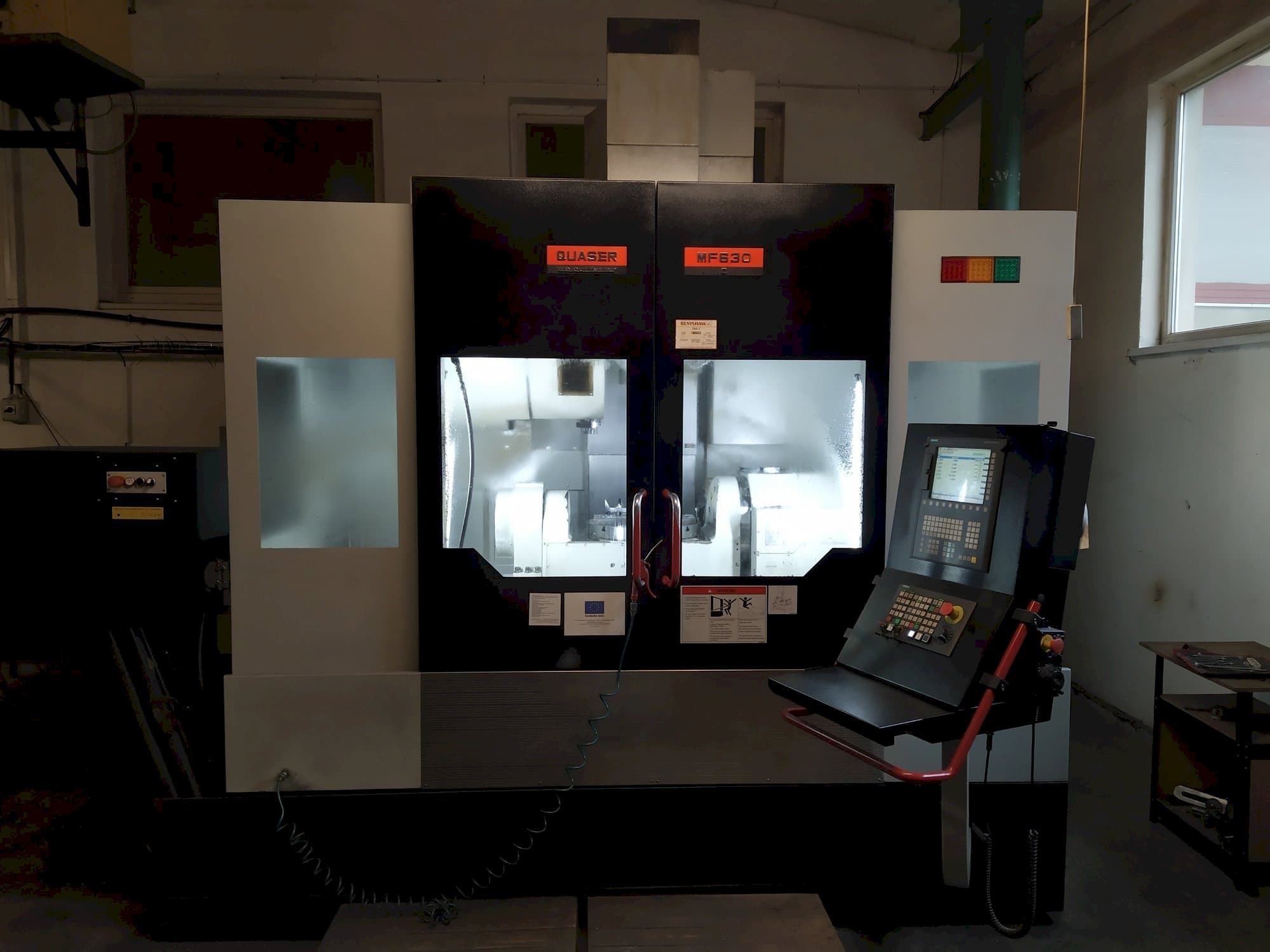

Quaser MF 630C Vertical Machining center

This Quaser MF 630C Vertical Machining center was manufactured in the year 2015 in Taiwain and has 4761 production hours. It is equipped with a SIEMENS Sinumerik 828D control unit and has 5 axis. The machine has a spindle speed of 12000 rpm.

Overview

brand: Quaser
year: 2015
MODEL: MF 630C
production hours: 4761
application type: Milling
Location: Slovakia
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - Quaser MF 630C

General Data

Measurements width: 3705 mm
Measurements depth: 2520 mm
Measurements height: 3230 mm
Machine weight: 8750 kg

Control Unit

Model: Sinumerik 828D
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 800 mm
Y-AXIS Movement: 700 mm
Z-AXIS Movement: 610 mm

Workpiece

Workpiece drm: 630 mm
Workpiece weight: 300 kg

Table

Outer length: 500 mm
Outer width: 500 mm

Tools

Slots in storage: 30
Max weight: 7 kg
Max tool diameter: 76/125 mm
Max tool length: 280 mm
Type of tool holder: SK 40

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - C axis 360 deg. (continual)
- - Table a axis +30 / -120 degrees
- - Rapid feedrate x / y / z axis (m / min) 32/32/16
- - Distance table surface-spindle face (mm) 25 – 585
- - Workpiece probe renishaw omp40
- - Washgun, workspace rinsing
Qualitative Machine Benefits:
- - Very good condition, low hours

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
