➤ Used Quaser MV 204 CP For sale | gindumac.com

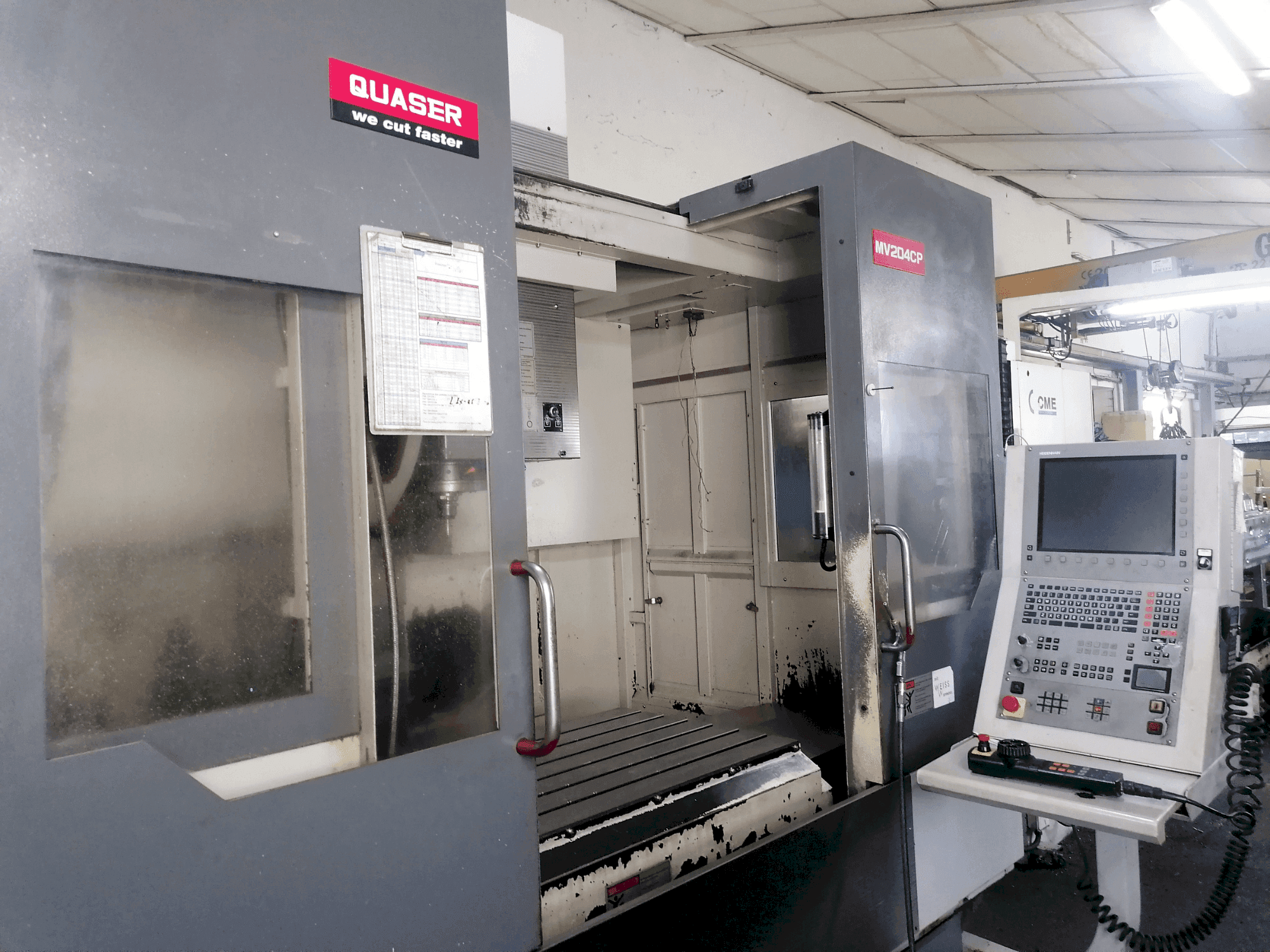

This 3-axis Quaser MV 204 CP was manufactured in 2008. A robust vertical machining centre featuring a table size of 1400 x 700 mm and travels of 1270 mm in X, 700 mm in Y, and 610 mm in Z. It includes a 40 Taper spindle capable of 12,000 rpm and a 30-slot tool changer. Ideal for precise, heavy-duty machining. For more information about this machining centre, please reach out to us.

Overview

brand: Quaser
year: 2008
MODEL: MV 204 CP
application type: Milling
Location: Portugal
machine type: Vertical Machining Centre
availability: Sold

Technical Information - Quaser MV 204 CP

General Data

Measurements width: 2530 MM
Measurements depth: 3700 MM
Measurements height: 3050 mm
Machine weight: 10100 kg

Main drive

Number of spindles: 1
Spindle speed range: 12000 rpm 1/MIN

Movement

X-AXIS Movement: 1270 mm
Y-AXIS Movement: 700 mm
Z-AXIS Movement: 610 mm

Table

Outer length: 1400 mm
Outer width: 700 mm

Tools

Number of index: 30
Max weight: 7 kg
Max tool diameter: 76.2 mm
Max tool length: 300 mm

Additional Equipment

- Tool changer with a capacity of 30 tools
- Random tool selection feature

Additional Information

Machine Benefits

Technical Machine Benefits:
- - High spindle speed up to 12,000 rpm suitable for various milling operations.
- - Large table size and extensive travel range on x, y, and z axes for handling sizable workpieces.
- - Maximum tool specifications include a diameter of 76. 2 mm without adjacent tool, length up to 300 mm, and weight up to 7 kg, facilitating versatile tooling options.
Qualitative Machine Benefits:
- - Precision machining with bbt40 spindle taper ensuring better tool stability and cutting accuracy.
- - Efficient tool management with a 30-slot tool changer and random tool selection capability.
- - The machine is equipped with a spindle model 40 taper, enhancing its capability for heavy-duty milling tasks.

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
