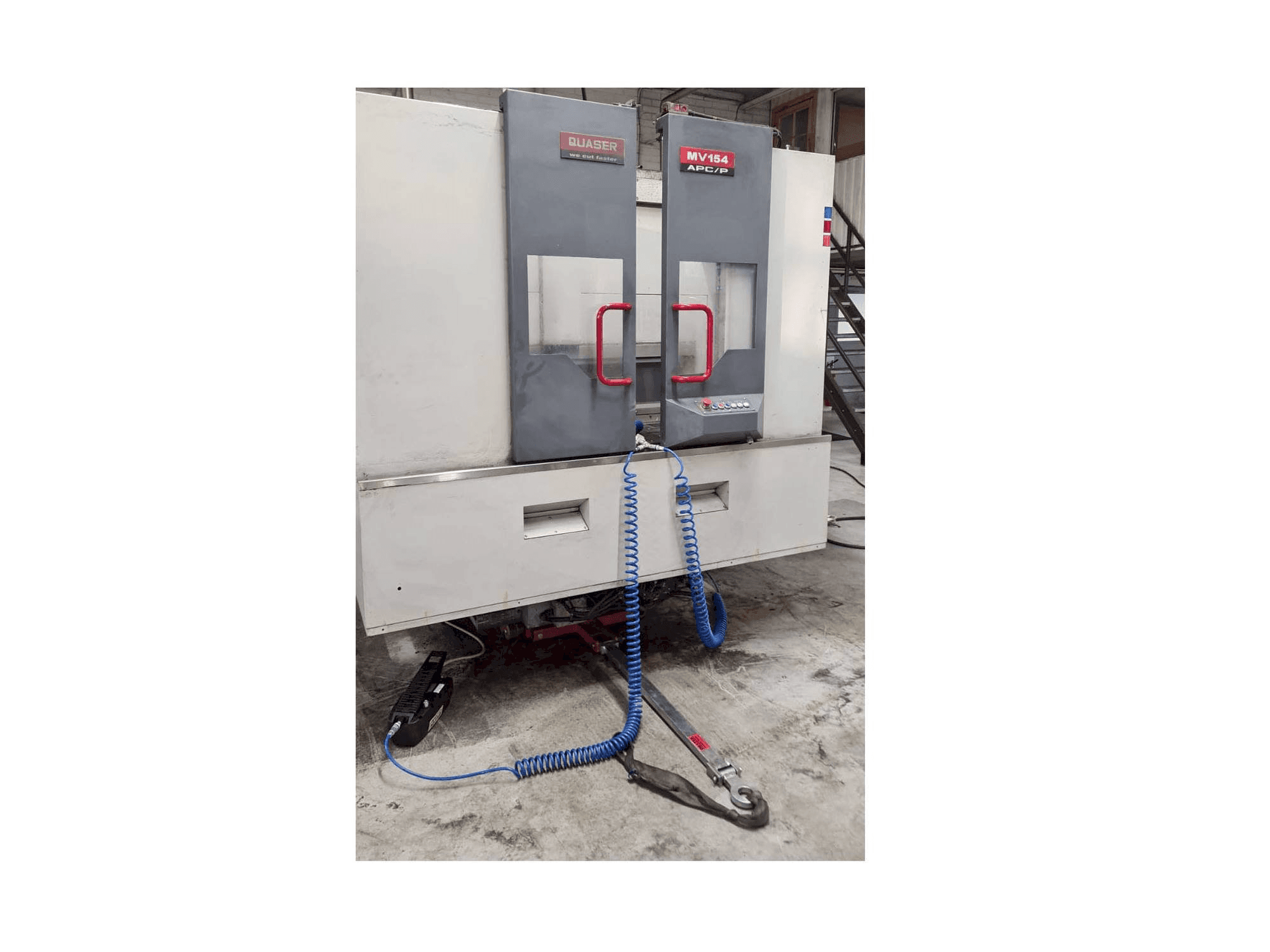

Quaser MV154APC/P12

This Quaser MV154APC/P12 Vertical Machining Center from 2007 was built in Taiwan. It has an approximately cutting time of 6200 hours. This 3 axis machine is operated through a FANUC 18iMB Control Unit. It can work with a spindle speed up to 12000 rpm.

Overview

brand: Quaser
year: 2007
MODEL: MV154APC/P12
production hours: 6200
application type: Milling
Location: Finland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - Quaser MV154APC/P12

General Data

Measurements width: 3980 mm
Measurements depth: 2710 mm
Measurements height: 2760 mm
Machine weight: 8500 Kg

Control Unit

Model: 18iMB
CNC main language: English
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 700 mm
Y-AXIS Movement: 500 mm
Z-AXIS Movement: 560 mm

Table

Outer length: 800 mm
Outer width: 500 mm

Tools

Slots in storage: 32
Max weight: 7 Kg
Max tool diameter: 75 mm
Max tool length: 280 mm
Type of tool holder: BT40

Media

Main electronic connection: 400 V
Power consumption: 30 kVA
Chip conveyor: Yes
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
