Quaser MV154APC/P12

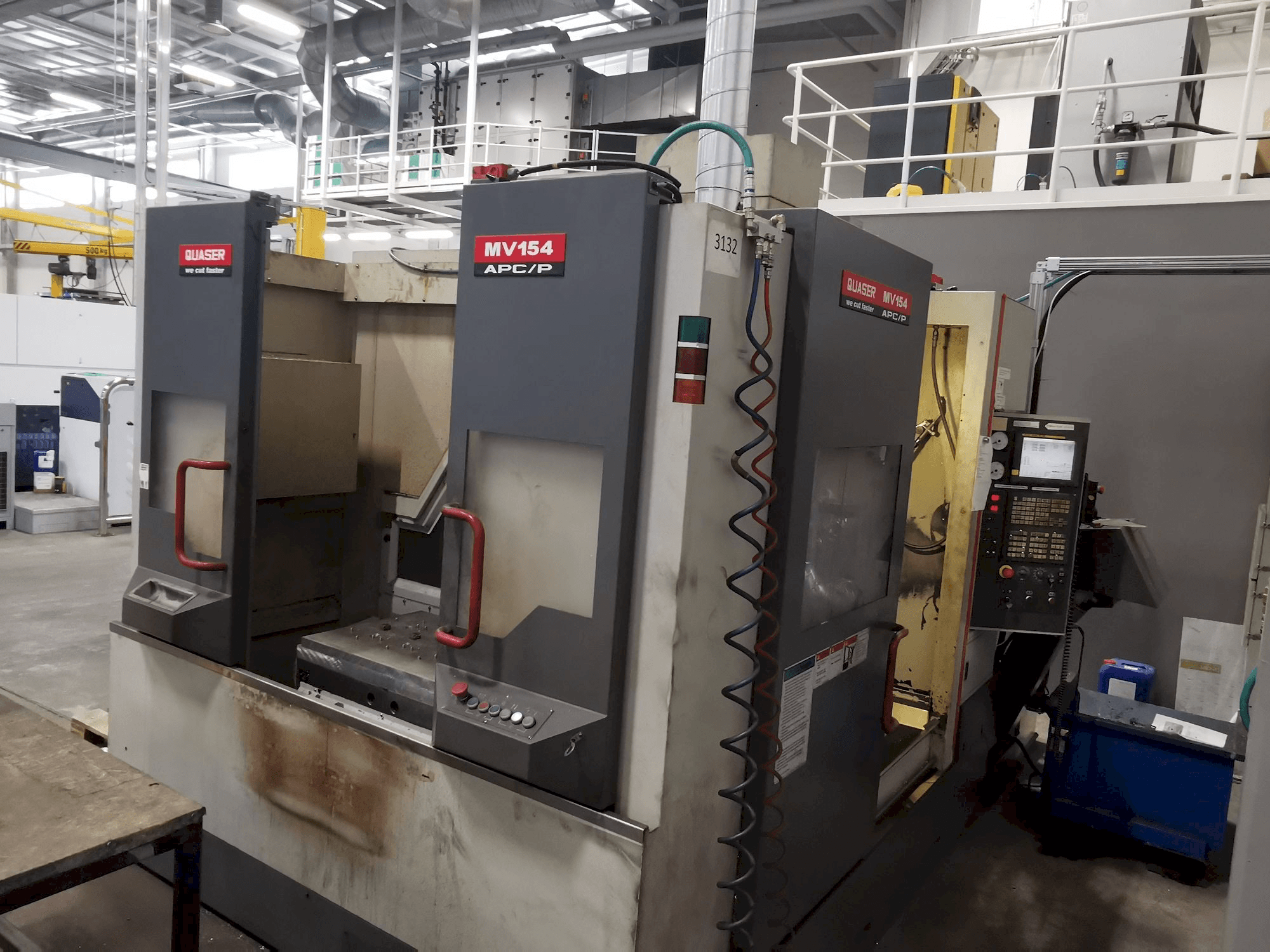

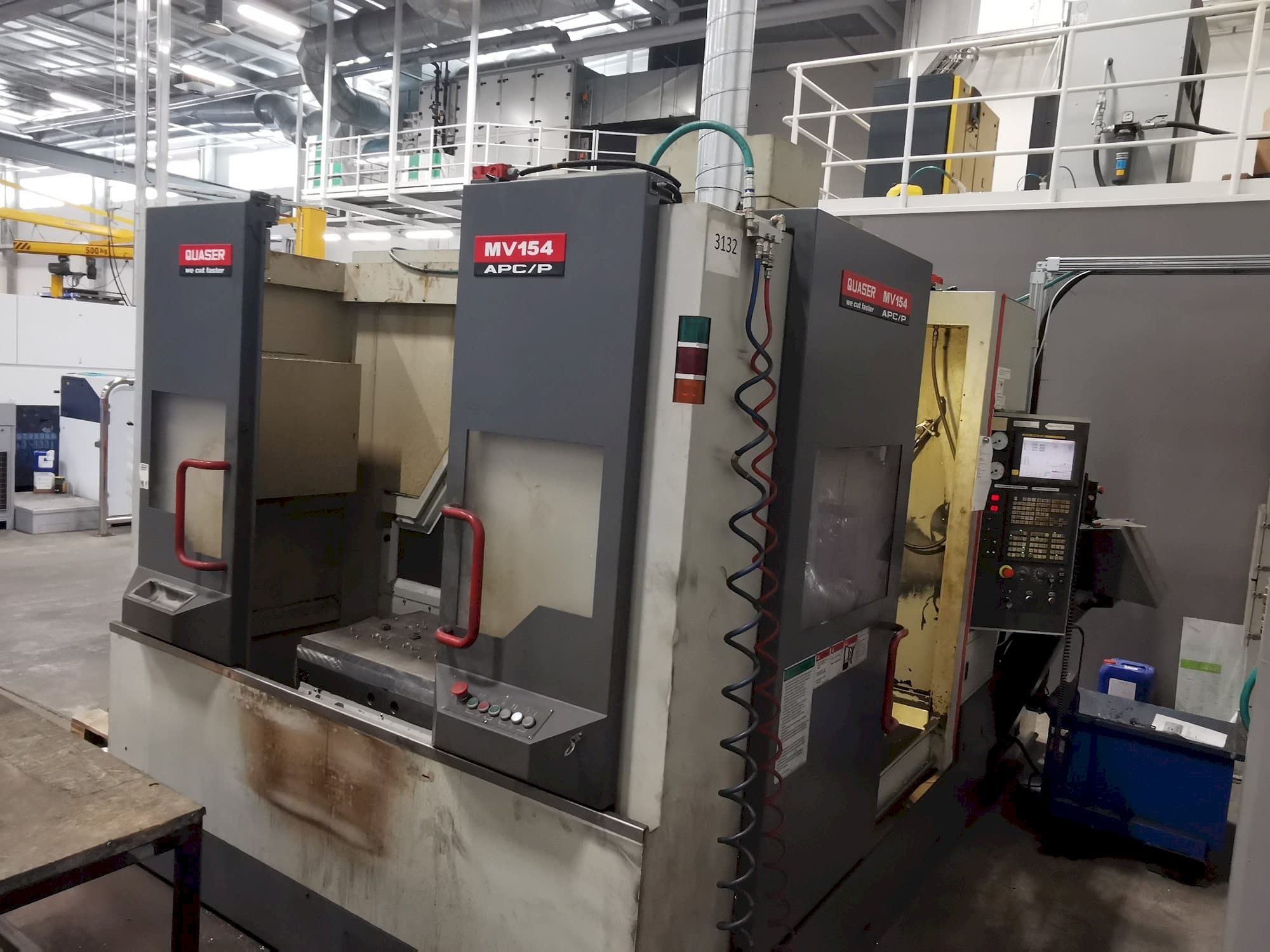

This Quaser MV154APC/P12 Vertical Machining Center from 2008 was manufactured in Taiwan. It has a record of 24358 running time. This machine is operated through a FANUC Series 18i-MB control unit. It can work with a spindle speed up to 12000 rpm and includes an absolent oil mist filtration device with a capacity 2000 m3/h.

Overview

brand: Quaser
year: 2008
MODEL: MV154APC/P12
production hours: 24358
application type: Milling
Location: Finland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - Quaser MV154APC/P12

General Data

Measurements width: 4100 mm
Measurements depth: 2510 mm
Measurements height: 2940 mm
Machine weight: 7500 kg

Control Unit

Model: Series 18i-MB
CNC main language: ENGLISH
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN

Movement

X-AXIS Movement: 700 MM
Y-AXIS Movement: 500 MM
Z-AXIS Movement: 560 MM

Table

Outer length: 800 MM
Outer width: 500 MM

Tools

Slots in storage: 48
Max weight: 7 KG
Max tool diameter: 75 MM
Max tool length: 280 MM
Type of tool holder: BT40

Media

Main electronic connection: 400 V 50 HZ
Power consumption: 30 KVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- Absolent oil mist filtration device, capacity 2000 m3/h

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
