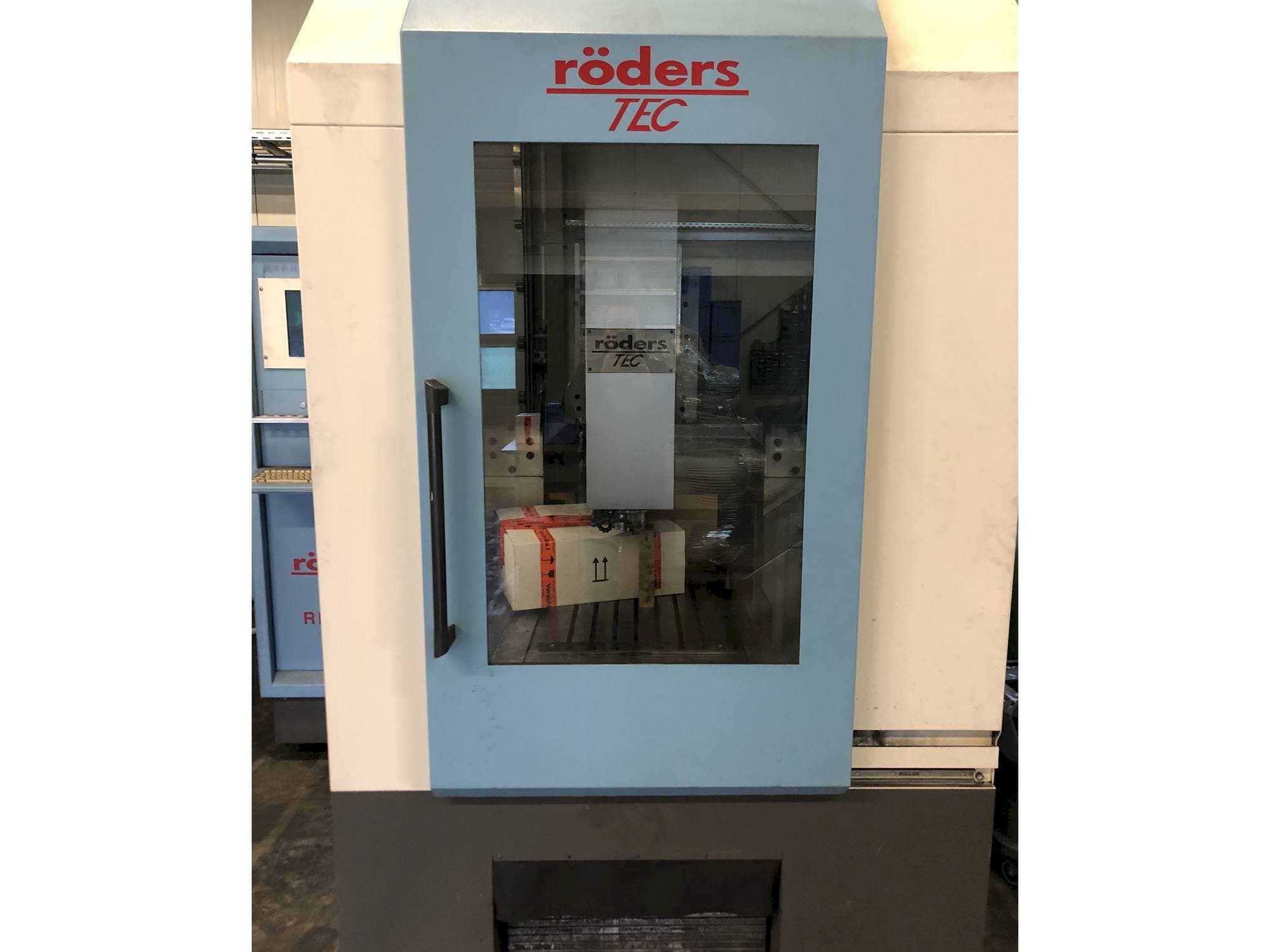

RÖDERS 600 RFM-2 Vertical Machining center

This RÖDERS 600 RFM-2 Vertical Machining center was manufactured in the year 2004 in Germany.

Overview

brand: RÖDERS
year: 2004
MODEL: 600 RFM-2
production hours: 28340
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: RÖDERS

Technical Information - RÖDERS 600 RFM-2

General Data

Measurements width: 2250 mm
Measurements depth: 3000 mm
Measurements height: 2250 mm
Machine weight: 5400 kg

Control Unit

Model: HSC control RMS6
Brand: RÖDERS

Main drive

Spindle speed range: 3000 - 42000 RPM 1/MIN
Spindle motor power: 14 kW
Tool taper: HSK 40
Number of axis: 3

Movement

X-AXIS Movement: 600 mm
Y-AXIS Movement: 450 mm
Z-AXIS Movement: 300 mm

Workpiece

Workpiece drm over bed: 700 mm
Workpiece drm over support: 550 mm
Workpiece weight: 800 kg

Additional Equipment

- Number of tools: 18
- T-slots: 14 mm, spaced 63 mm
- Tool measuring laser integrated in tool changer
- Minimum quantity lubrication with two nozzles
- Workpiece and tool cleaning compressed air nozzles
- High-frequency milling spindle: Make FISCHER MFW1230/42
- Cooling of bearing blocks and nuts of feed drives
- Control system integration into Ethernet network
- Data transmission via IR interface

Additional Information

Machine Benefits

Technical Machine Benefits:
- - High spindle speed (3000 - 42000 rpm) with robust spindle power (14 kw)
- - Advanced tool management with tool measuring laser and 18-position tool changer
Qualitative Machine Benefits:
- - Enclosed cabin with safety glazing allows good visibility and easy crane loading
- - Effective sealing for processing materials like graphite, cast iron, and plastic

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
