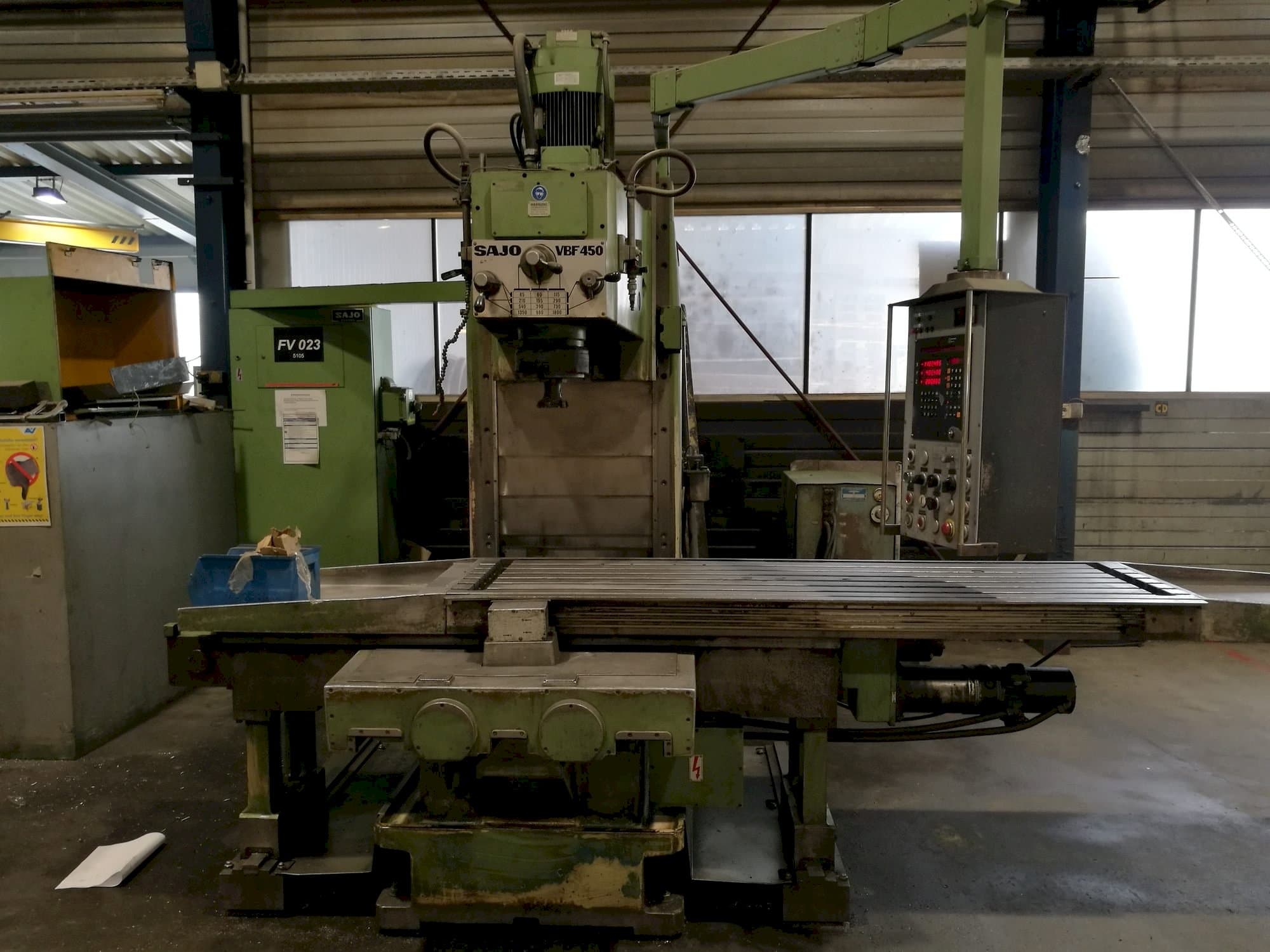

SAJO VBF450 Milling Machine

This SAJO VBF450 Milling Machine was made in the year 1981 in Austria and has been working for approximately 40000 hours. Equipped with a HEIDENHAIN TNC 131 Control unit, this stable machine can work with a spindle speed range of 60-1800 rpm.

Overview

brand: SAJO
year: 1981
MODEL: VBF450
production hours: 40000
application type: Milling
Location: Austria
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - SAJO VBF450

General Data

Measurements width: 5300 mm
Measurements depth: 3500 mm
Measurements height: 3100 mm
Machine weight: 7200 kg

Control Unit

Model: TNC 131
CNC main language: German
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 60-1800 1/MIN

Movement

X-AXIS Movement: 1600 mm
Y-AXIS Movement: 650 mm
Z-AXIS Movement: 500 mm

Table

Outer length: 2100 mm
Outer width: 600 mm
Number of tslots: 6 18H7
Distance between: 80 mm

Media

Main electronic connection: 380 V
Power consumption: 29 kVA

Additional Information

Machine history

Material type: Steel
Industries: Construction

Machine Benefits

Technical Machine Benefits:
- - Hydraulic feed engine

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
