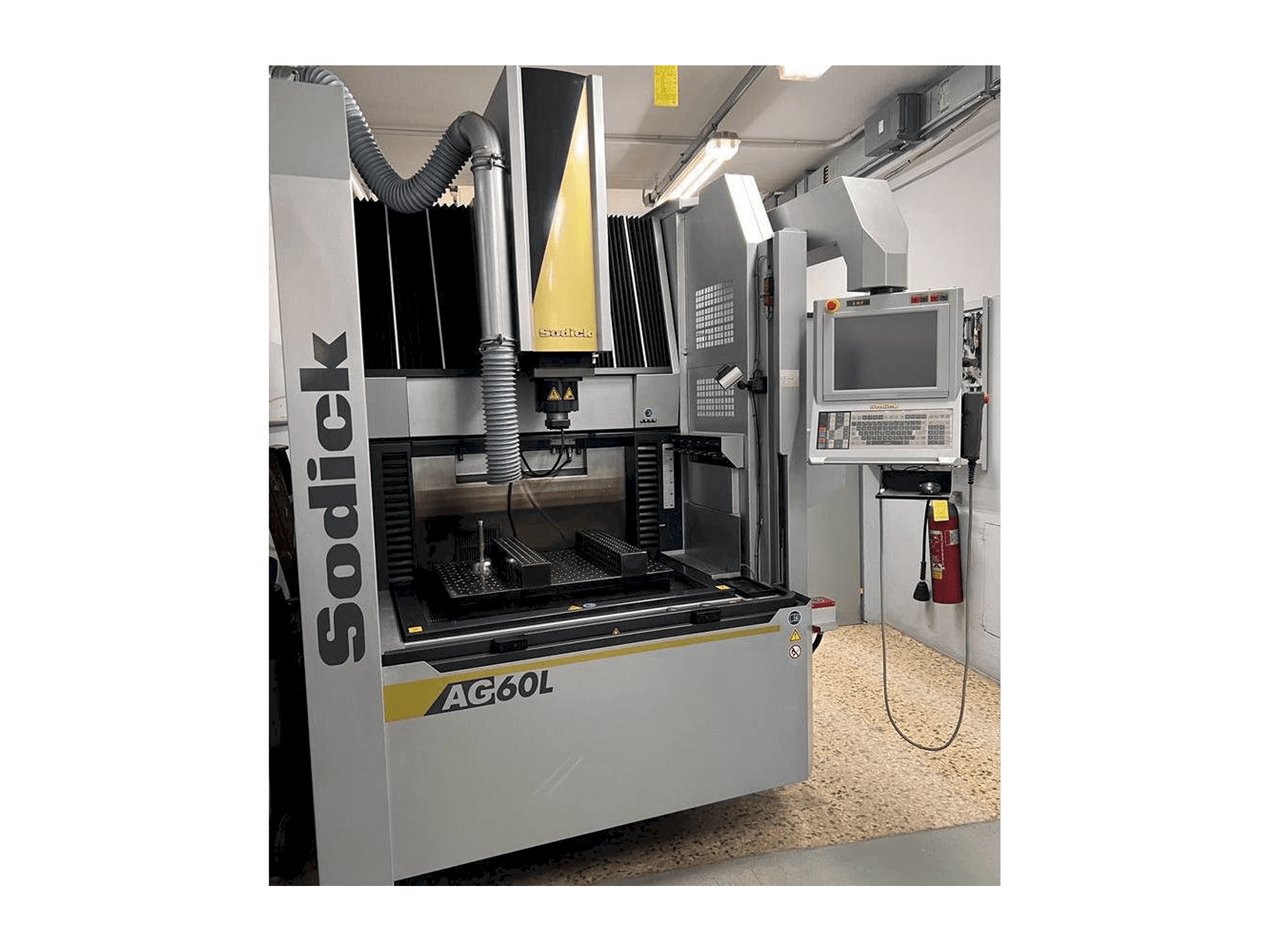

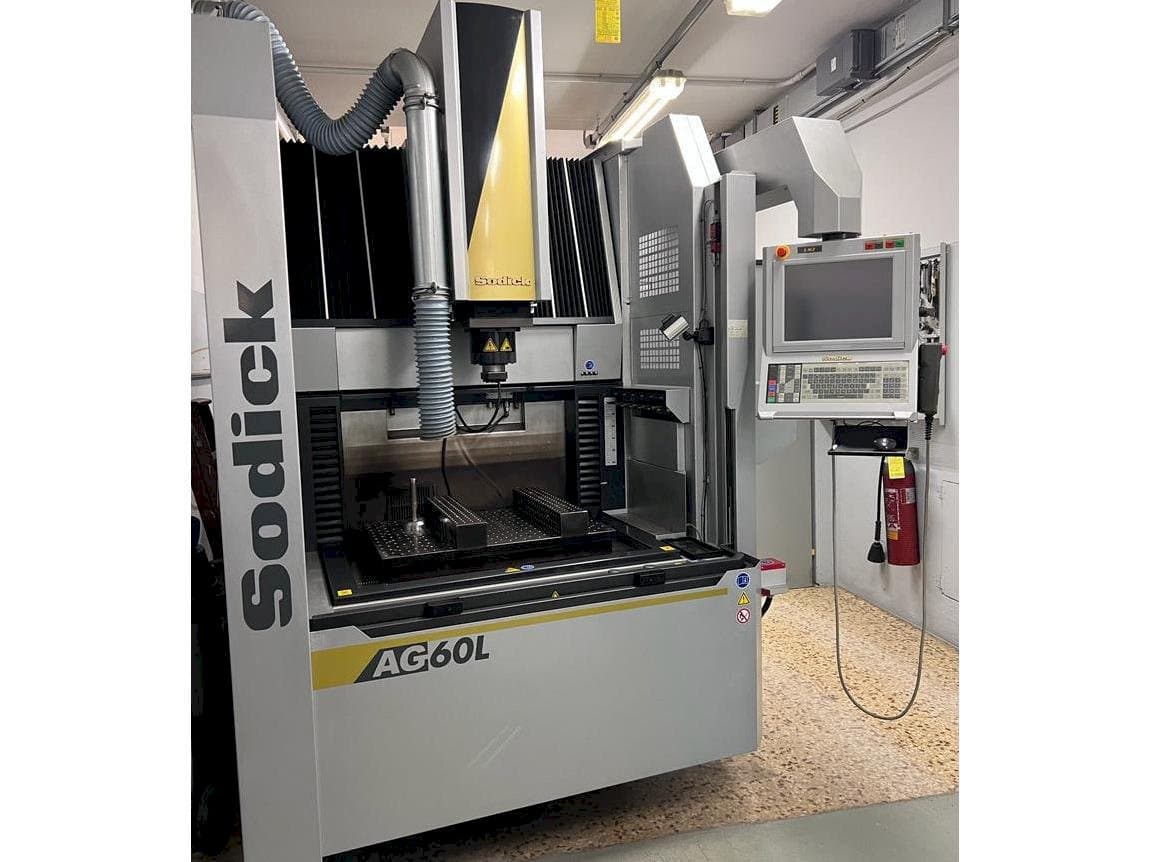

Sodick AG 60L Erosion machine

This Sodick AG 60L Erosion machine was manufactured in the year 2013 and has 11000 hours. It is equipped with a Sodick LN2 control unit. The machine has a distance between tabletop and electrode holder of 200 - 570 mm and an Electrode Max weight of 50 kg.

Overview

brand: Sodick
year: 2013
MODEL: AG 60L
production hours: 11000
application type: EDM
Location: Italy
machine type: Wire EDM Machine
availability: Sold
control unit brand: SODICK

Technical Information - Sodick AG 60L

General Data

Measurements width: 1852 mm
Measurements depth: 2825 mm
Measurements height: 2570 mm
Machine weight: 5350 kg

Control Unit

Model: LN2
Brand: SODICK

Movement

X-AXIS Movement: 600 mm
Y-AXIS Movement: 420 mm
Z-AXIS Movement: 370 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Workpiece holder table usable surface: 70x550 mm.
- - Ground height :850 mm
- - Permitted load :1500 kg
- - Work tank internal dimensions: 950x740x450
- - Containment capacity l. 330 dielectric level: 150 - 400 mm
- - Dielectric external tank
- - Total dielectric required: 560 l
- - Electrode max weight 50 kg
- - Distance between table top and electrode holder 200 - 570 mm
- - Shuttle electrode change (linear) max dimensions:75x75 mm max
Qualitative Machine Benefits:
- - Electrode length: 200 mm ,max electrode weight 3 kg ,atc 3 r 6
- - Positions axis r 2000 rpm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
