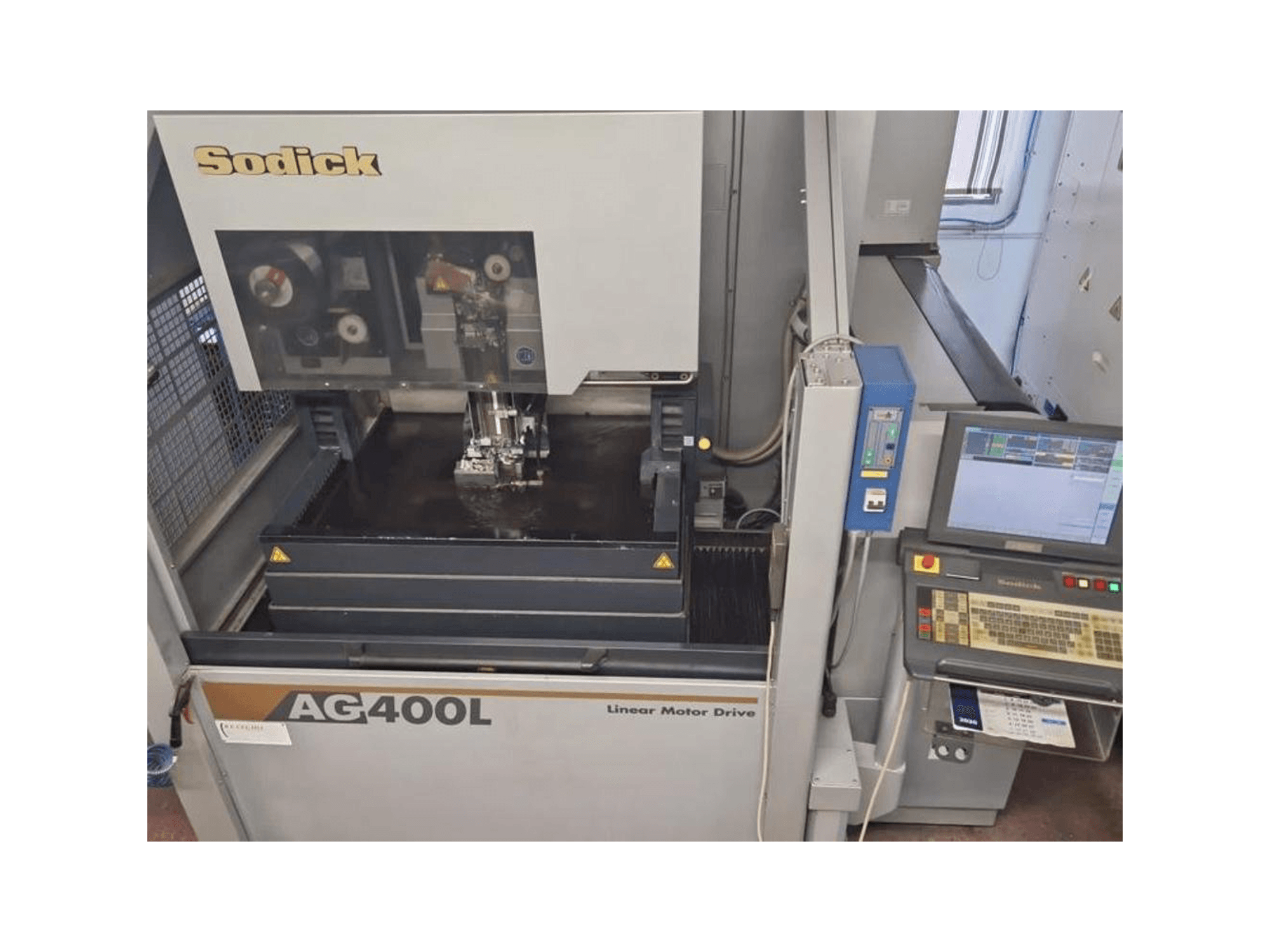

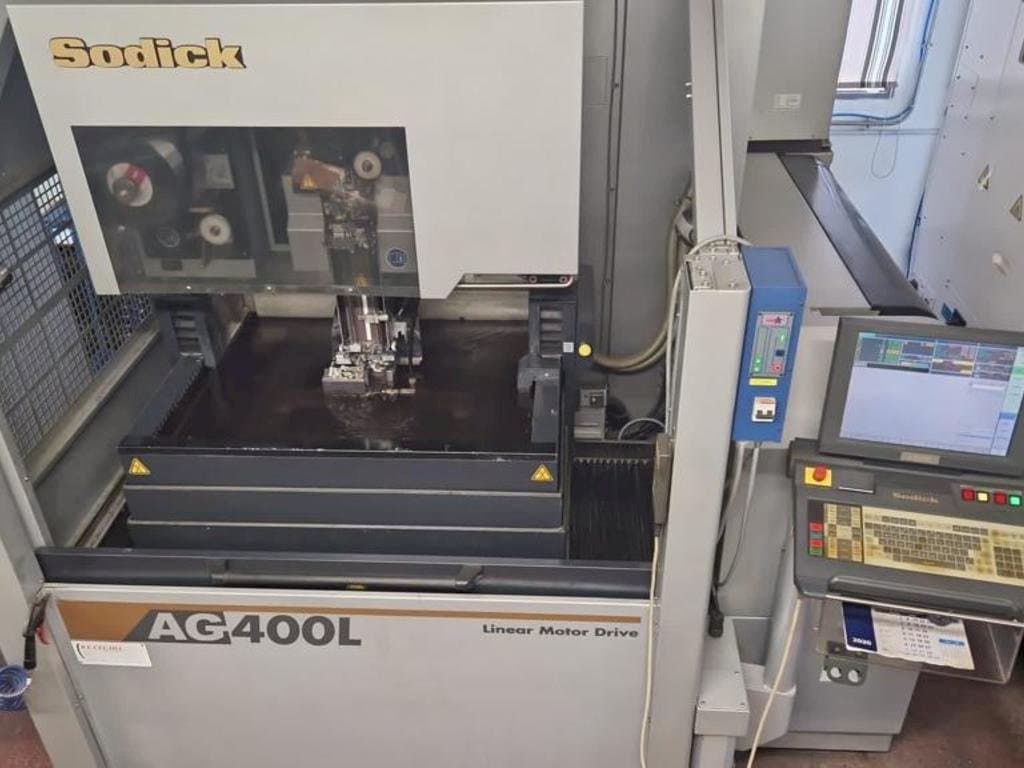

SODICK AG400L Erosion machine

This SODICK AG400L Erosion machine was manufactured in the year 2012 in Thailand and has 15751 production hours. It has 3 axis. The machine has a wire diameter of 0.5 - 3 mm. See original brochure as PDF (EN) attached below for further details.

Overview

brand: Sodick
year: 2012
MODEL: AG400L
production hours: 15751
application type: EDM
Location: Italy
machine type: Die-Sinking EDM Machine
availability: Sold

Technical Information - Sodick AG400L

General Data

Measurements width: 2100 mm
Measurements depth: 2235 mm
Measurements height: 2220 mm
Machine weight: 3800 kg

Movement

X-AXIS Movement: 400 mm
Y-AXIS Movement: 300 mm
Z-AXIS Movement: 250 mm

Workpiece

Workpiece weight: 500 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Wire diameter: 0. 5 - 3mm
- - Max wire speed: 420mm / sec
- - Dielectric tank: 600 liters

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

SODICK AG400L (2012) - Original Brochure (EN).pdf
