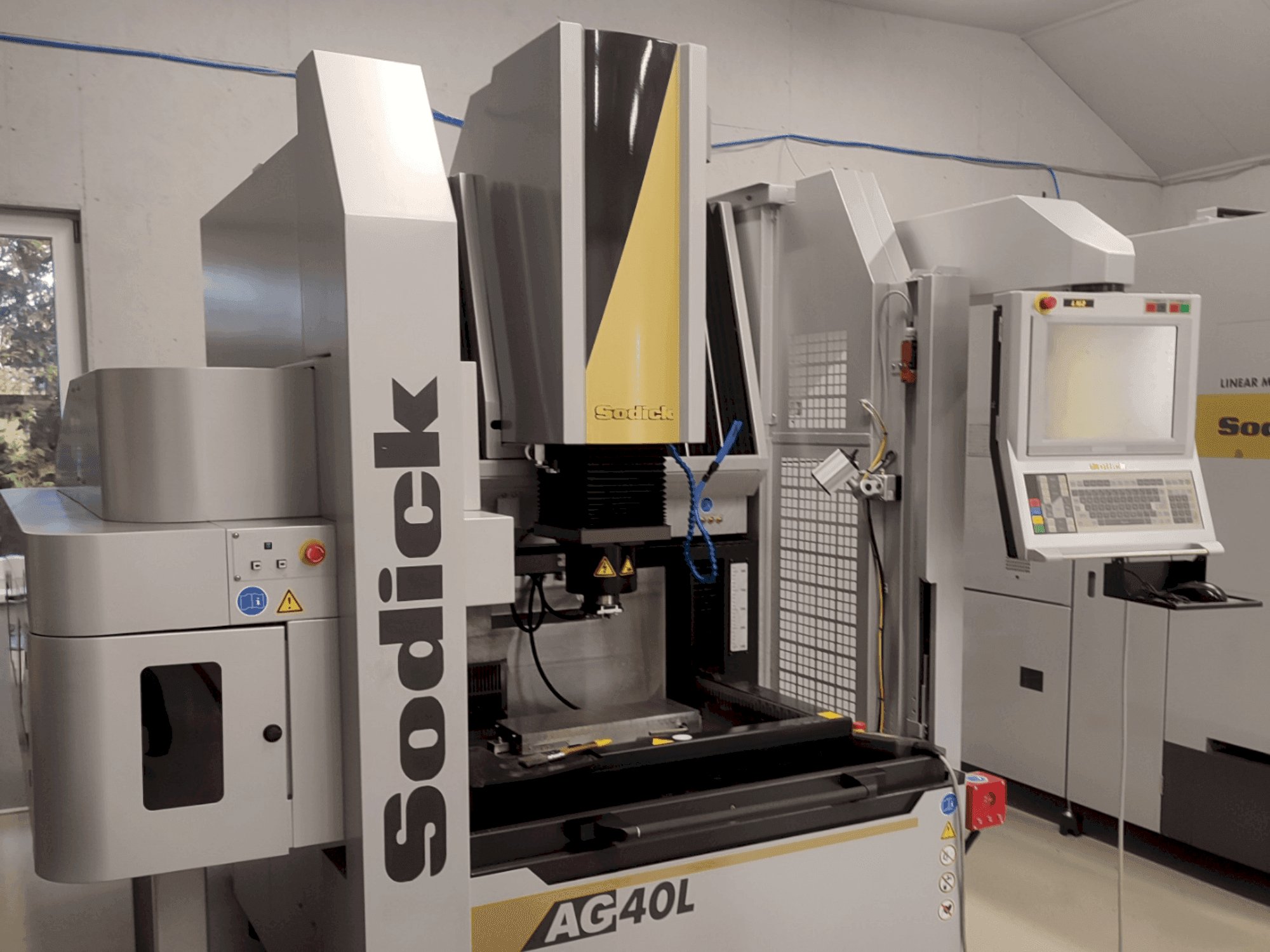

This 3-axis Sodick AG40L erosion machine was manufactured in 2020. It features linear motors on X, Y, Z axes, a 32x tool changer, and SVC circuit for superfine surfaces. Ideal for graphite electrode machining, it supports a max workpiece weight of 550 kg. The machine dimensions are 1662 x 2490 x 2320 mm. A great opportunity to buy this Sodick AG40L erosion machine. Contact us for further details regarding this erosion machine.
Overview
- brand: Sodick
- year: 2020
- MODEL: AG40L
- application type: EDM
- Location: Hungary
- machine type: Die-Sinking EDM Machine
- availability: Immediately
Technical Information - Sodick AG40L
General Data
- Measurements width: 2490 mm
- Measurements depth: 1662 mm
- Measurements height: 2320 mm
- Machine weight: 4100 kg
Control Unit
- Model: LN2 with CNC control
Main drive
- Number of axis: 3
Movement
- X-AXIS Movement: 400 mm
- Y-AXIS Movement: 300 mm
- Z-AXIS Movement: 270 mm
Workpiece
- Workpiece weight: 550 kg
Additional Equipment
- - Linear motors on the X, Y, Z axes: Yes
- - Linear glass scale on all axes: Yes
- - SVC circuit for superfine surfaces and graphite electrode machining: Yes
- - Ceramic parts: Yes
- - 32x tool changer: Yes
- - Max. Electrode Weight: 50 kg
Additional Information
- Technical Machine Benefits:
- - Table size: 600 x 400 mm
- - Distance between the floor and the top plane of the table: 83 mm
- - Advanced machining capabilities with svc circuit for superfine surfaces and graphite electrode machining
- Qualitative Machine Benefits:
- - Enhanced durability with ceramic parts, reliable control with ln2 cnc control
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
