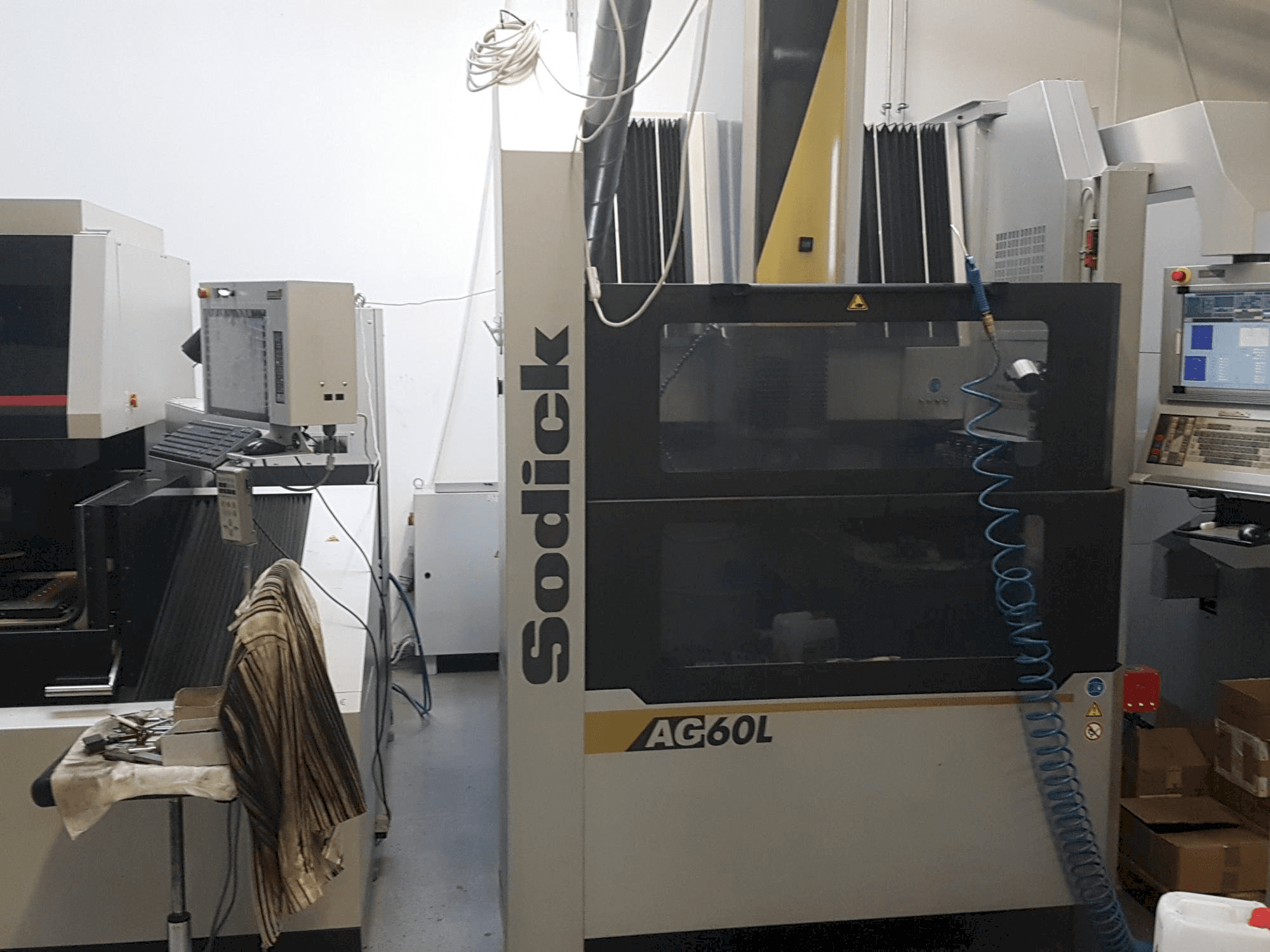

This Sodick AG60L Erosion Machine was built in the year 2016. It has been productive for approximately 5720 working hours. This machine works with a dielectric travel 150 - 400 mm. It is operated through a control unit of the same brand.

Overview

brand: Sodick
year: 2016
MODEL: AG60L
production hours: 5720
application type: EDM
Location: Hungary
machine type: Wire EDM Machine
availability: Sold
control unit brand: SODICK

Technical Information - Sodick AG60L

General Data

Measurements width: 1852 mm
Measurements depth: 2825 mm
Measurements height: 2570 mm
Machine weight: 5350 Kg

Control Unit

Interface: LAN
Brand: SODICK

Movement

X-AXIS Movement: 600 mm
Y-AXIS Movement: 420 mm
Z-AXIS Movement: 370 mm

Workpiece

Workpiece weight: 1500 Kg

Table

Outer length: 750 mm
Outer width: 550 mm
Distance between: 850 mm

Media

Air pressure: 0.65 MPa
Dielectic tank: 465 l.

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Worktank 950 x 740 x 450 mm
- - Dielectric travel 150-400 mm
- - Max electrode weight 50 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
