- Sodick ALC400G Erosion machine

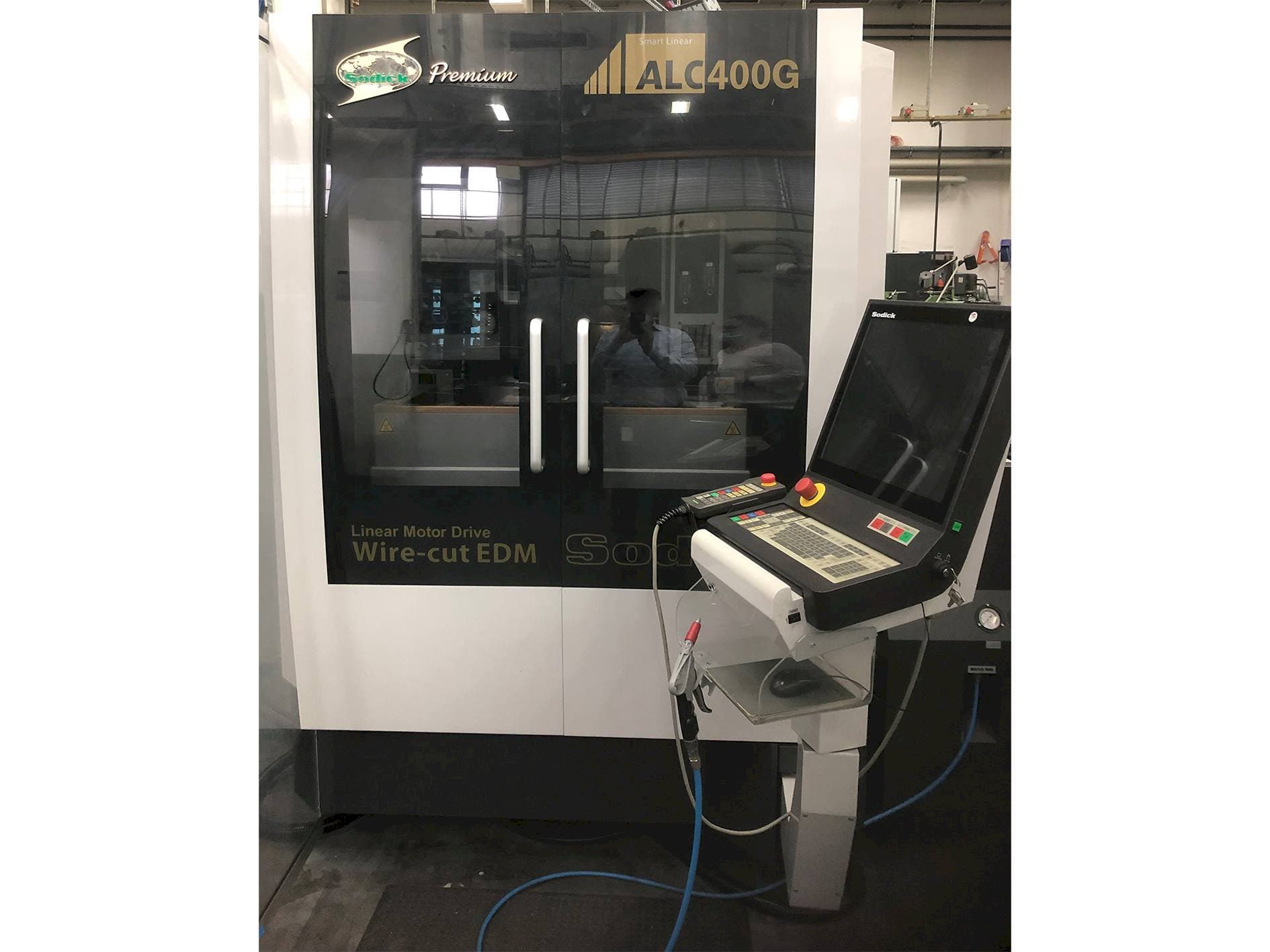

This Sodick ALC400G Erosion machine was manufactured in the year 2017. This machine has been working for 3650 hours. It is operated through a control unit of the same brand. This 3 axis machine comes with a wire diameter between Ø 0.1 - 0.3 mm and a compressed air requirement of 5 bar. Compatible EROWA Robot Compact 80 for this machine available
Overview
- brand: Sodick
- year: 2017
- MODEL: ALC400G
- production hours: 3650
- application type: EDM
- Location: Germany
- machine type: Wire EDM Machine
- availability: Sold
- control unit brand: SODICK
Technical Information - Sodick ALC400G
General Data
- Measurements width: 2115 mm
- Measurements depth: 2500 mm
- Measurements height: 2230 mm
- Machine weight: 3400 KG
Control Unit
- Brand: SODICK
Main drive
- Number of spindles: 1
- Wire diameter: Ø 0.1 - 0.3 mm
- Number of axis: 3
Movement
- X-AXIS Movement: 400 mm
- Y-AXIS Movement: 300 mm
- Z-AXIS Movement: 250 mm
- U/V Movement: 150 x 150 mm
Media
- Main electronic connection: 3 x 200V / 60Hz
- Power consumption: 13 kVA
- Air pressure: 5 bar
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
