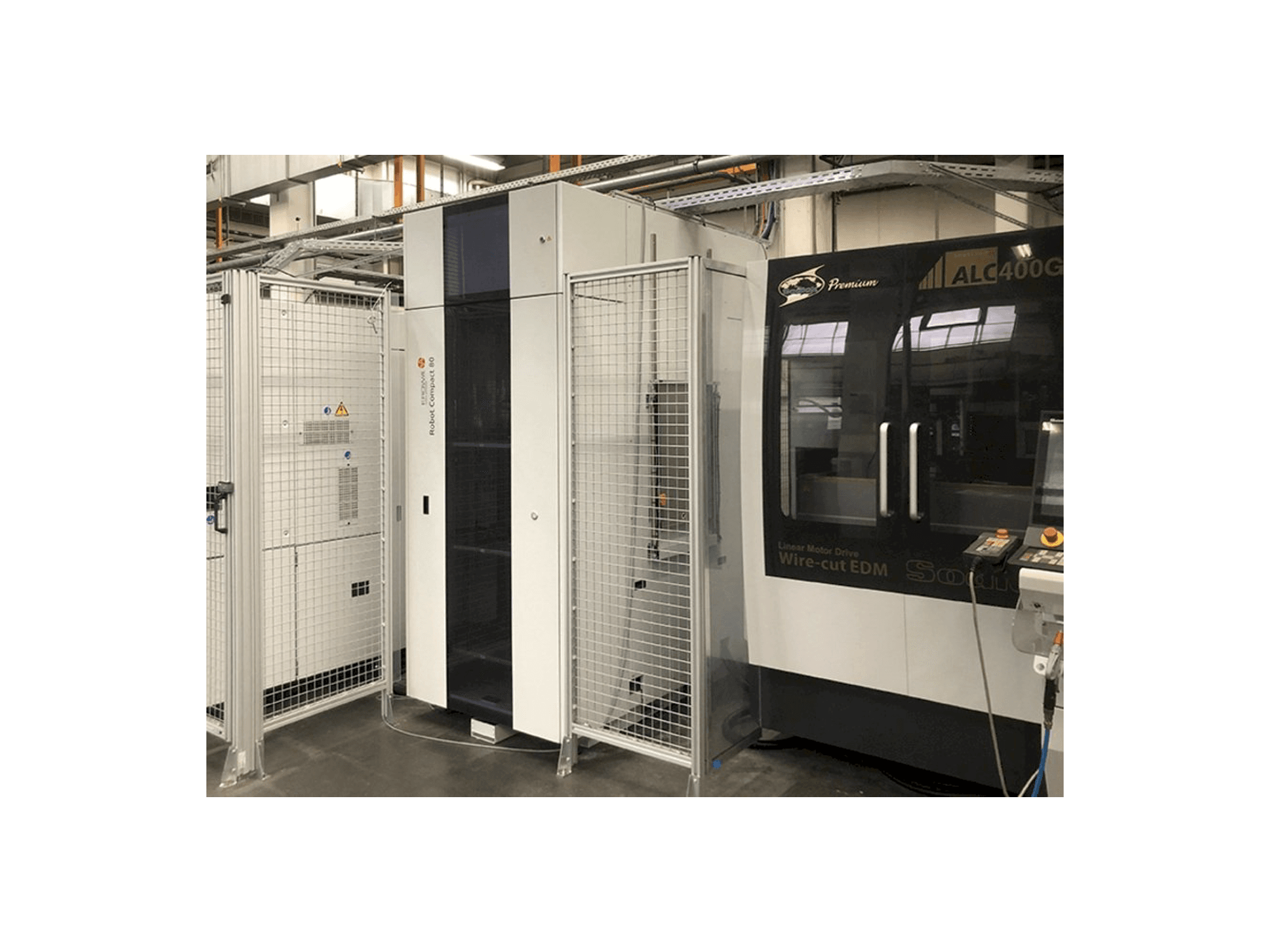

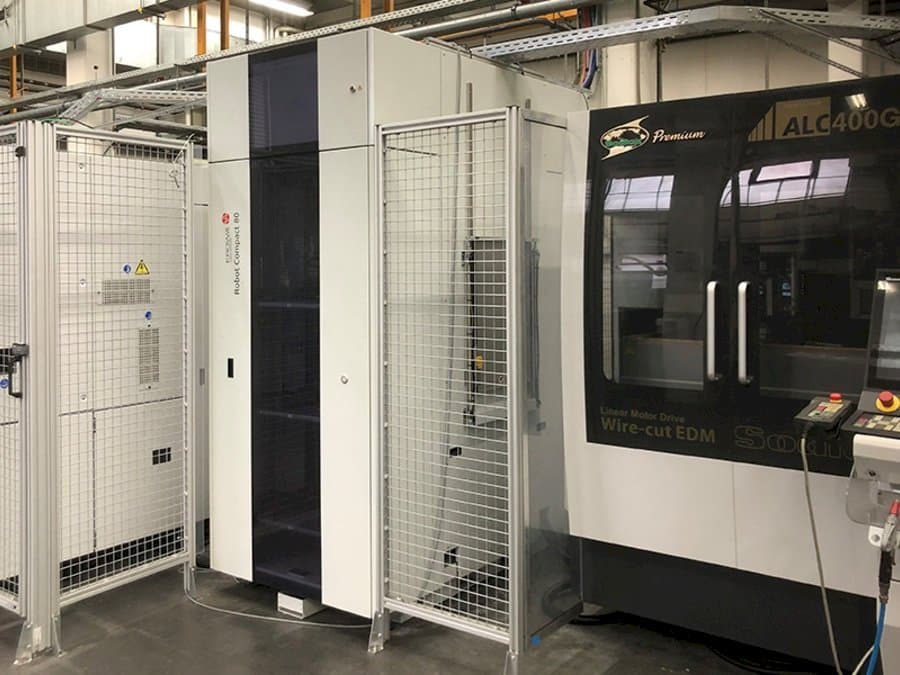

Sodick ALC400G Erosion machine

This Sodick ALC400G Erosion machine was made in the year 2017. This machine has been working for 3650 hours. It is equipped with a control unit of the same brand. This 3 axis machine operates with a wire diameter between 0.1 - 0.3 mm and a compressed air requirement of 5 bar. Compatible EROWA Robot Compact 80 for this machine available

Overview

brand: Sodick
year: 2017
MODEL: ALC400G
production hours: 3650
application type: EDM
Location: Germany
machine type: Wire EDM Machine
availability: Sold
control unit brand: SODICK

Technical Information - Sodick ALC400G

General Data

Measurements width: 2115 mm
Measurements depth: 2500 mm
Measurements height: 2230 mm
Machine weight: 3400 KG

Control Unit

Brand: SODICK

Main drive

Number of spindles: 1
Wire diameter: Ø 0.1 - 0.3 mm
Number of axis: 3

Movement

X-AXIS Movement: 400 mm
Y-AXIS Movement: 300 mm
Z-AXIS Movement: 250 mm
U/V Movement: 150 x 150 mm

Media

Main electronic connection: 3 x 200V / 60Hz
Power consumption: 13 kVA
Air pressure: 5 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
