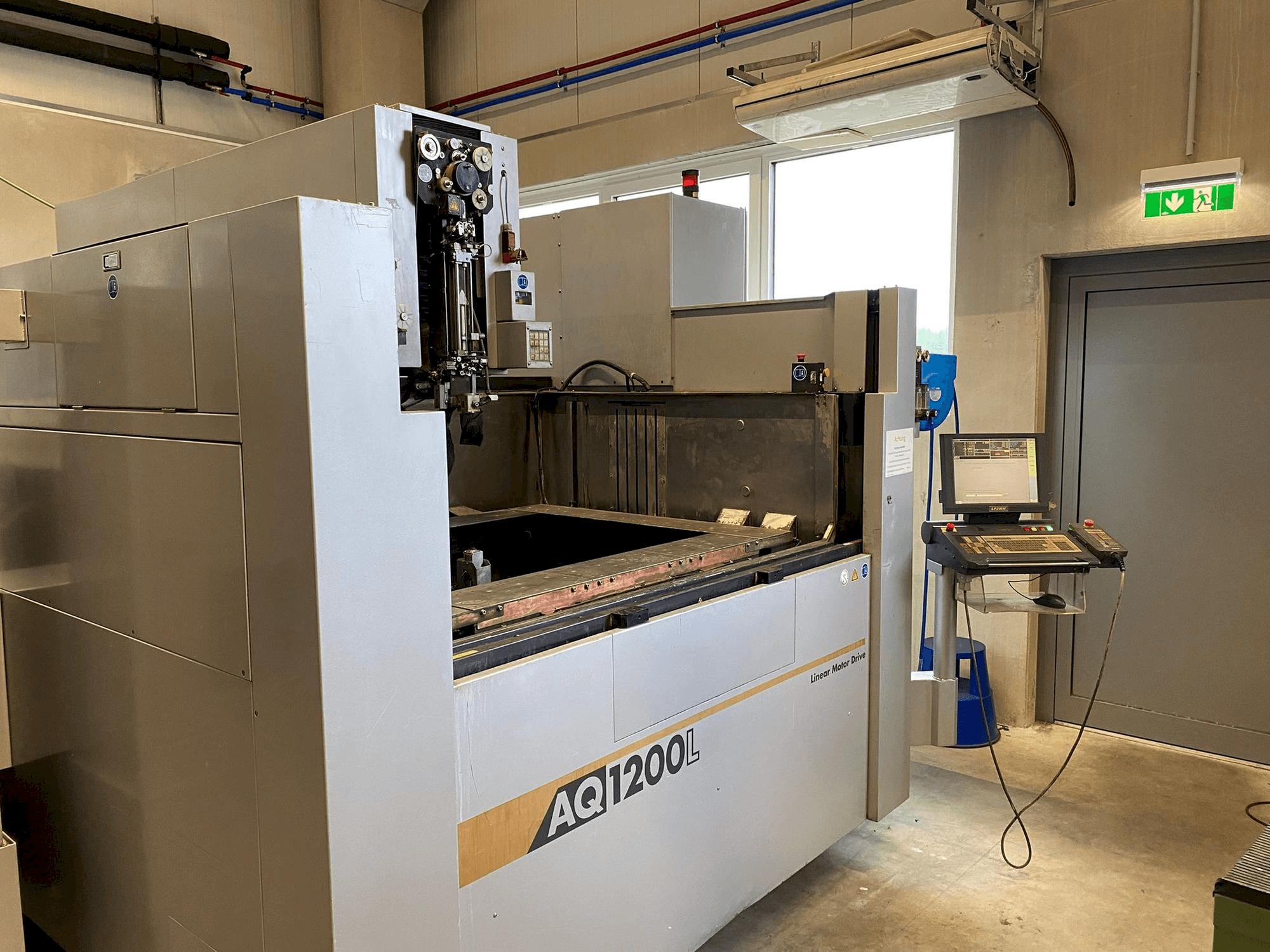

Sodick AQ1200L Erosion machine

This Sodick AQ1200L Erosion machine was manufactured in the year 2011 in Thailand and has 25000 production hours. It is equipped with a Sodick LP2WH control unit and has 5 axis. The machine has a wire diameter of Ø 0. 15 - Ø 0. 33 mm and a max wire speed of 423 mm/sec.

Overview

brand: Sodick
year: 2011
MODEL: AQ1200L
production hours: 25000
application type: EDM
Location: Germany
machine type: Wire EDM Machine
availability: Sold
control unit brand: SODICK

Technical Information - Sodick AQ1200L

General Data

Measurements width: 4100 mm
Measurements depth: 3870 mm
Measurements height: 2490 mm
Machine weight: 11000 kg

Control Unit

Model: LP2WH
Brand: SODICK

Main drive

Number of axis: 5

Movement

X-AXIS Movement: 1200 mm
Y-AXIS Movement: 800 mm
Z-AXIS Movement: 400 mm
V-Axis Movement: 820 mm
U-Axis Movement: 1220 mm

Workpiece

Workpiece weight: 4000 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Taper angle (for 150 mm height): ±30°
- - Internal dimensions of working tank (mm): 1824 x 1400
- - Max. Workpiece dimensions (w x d x h, mm): 1600 x 1200 x 400
- - Wire diameter (mm): Ø 0. 15 - Ø 0. 33
- - Wire tension (n): 3 - 23
- - Max. Wire speed (mm/sec): 420
- - Distance floor - table (mm): 1200
- - Controlled axes: 5
Qualitative Machine Benefits:
- - Y-guides were exchanged.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

Tech info.pdf
