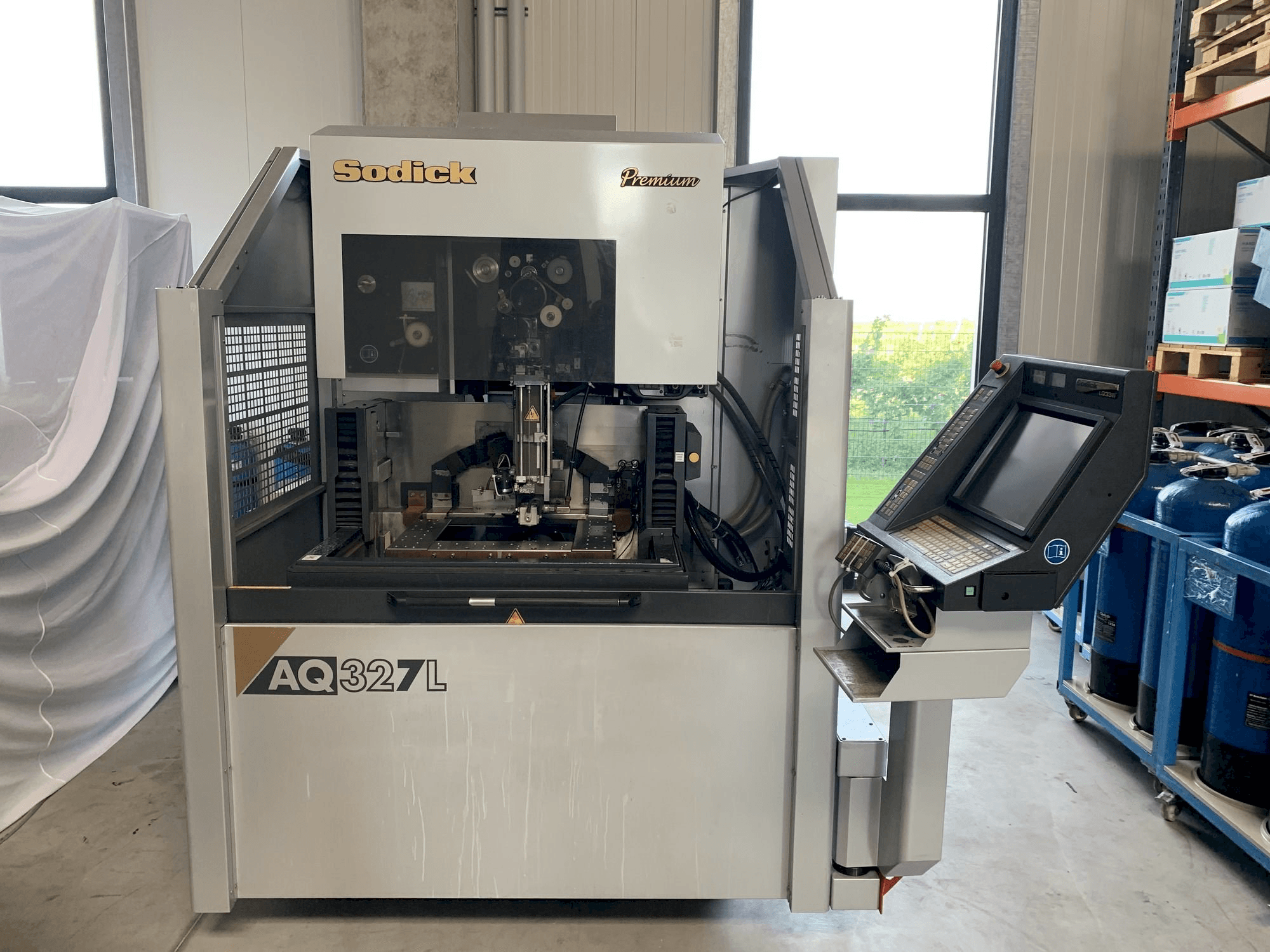

Sodick AQ327L EDM

This Sodick AQ327L Erosion Machine was manufactured in 2007. It is equipped with a control unit of the same brand. This machine can work with a wire diameter of 0.15-.30 mm at a wire speed of 420 mm/sec.

Overview

brand: Sodick
year: 2007
MODEL: AQ327L
application type: EDM
Location: Austria
machine type: Wire EDM Machine
availability: Sold
control unit brand: SODICK

Technical Information - Sodick AQ327L

General Data

Measurements width: 570 mm
Measurements depth: 420 mm
Measurements height: 240 mm
Machine weight: 500 kg

Control Unit

Brand: SODICK

Movement

X-AXIS Movement: 370 mm
Y-AXIS Movement: 270 mm
Z-AXIS Movement: 250 mm
U/V Movement: 120 x 120 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Working tank dimensions: 850 x 610 mm
- - Pcb control with 3d solid data input
- - Optimised dielectric system
- - Thermal multi fit precision thermal compensation system
- - Lp33w high-speed generator
- - Dielectric tank capacity: 600 liters
- - Dielectric tank external dimensions: 650 x 2080 mm
- - Max wire speed 420 mm/ sec.
- - Wire diameter:. 15-0. 30 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
