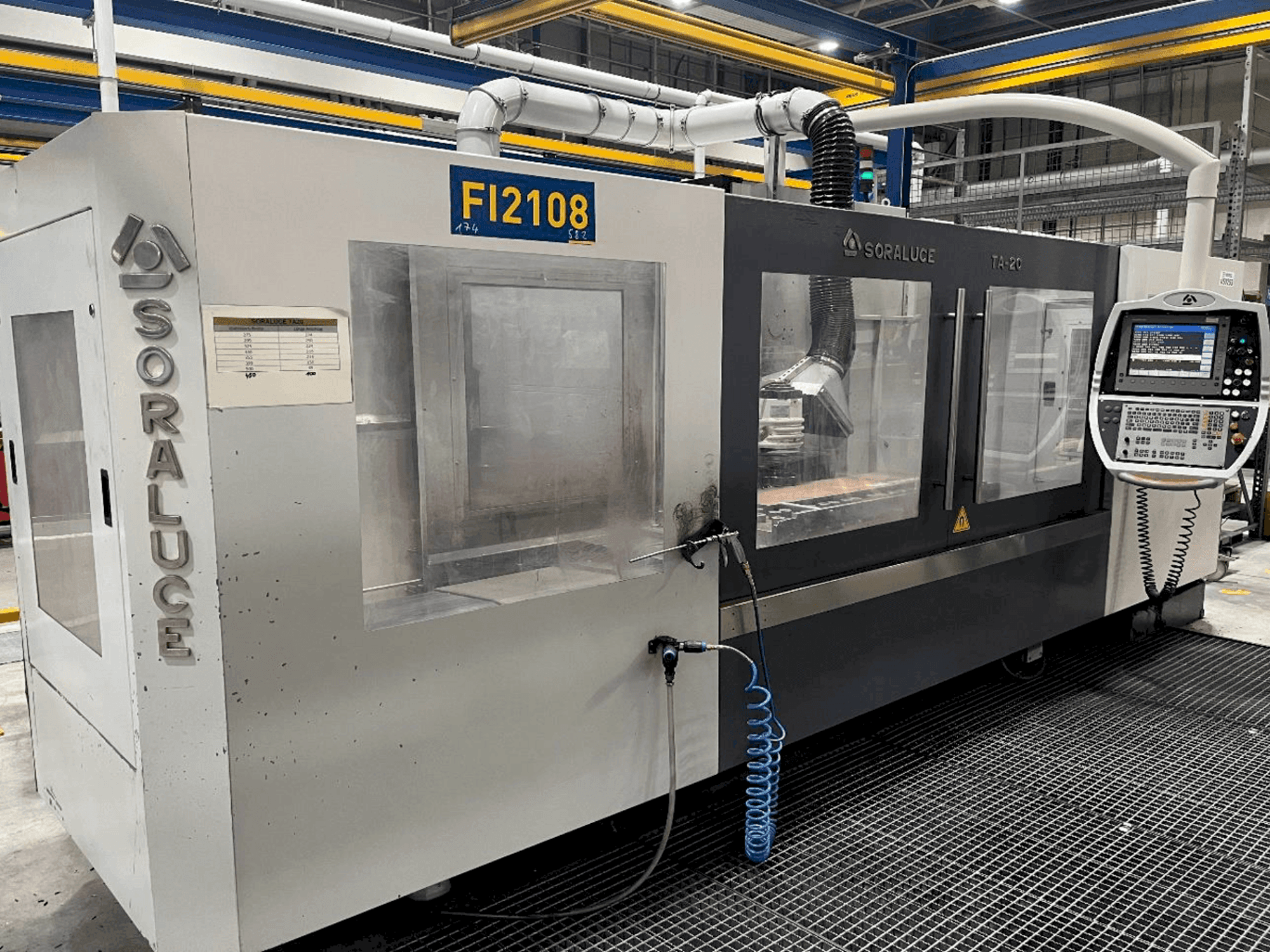

Soraluce TA-20 Milling machine

This Soraluce TA-20 Milling machine was manufactured in the year 2008. It is equipped with a Heidenhain ITNC 530 control unit. The machine has a spindle speed of 20-3000 rpm.

Overview

brand: Soraluce
year: 2008
MODEL: TA-20
application type: Milling
Location: Germany
machine type: Gantry Milling Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Soraluce TA-20

General Data

Machine weight: 12000 kg

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 20-3000 1/MIN

Table

Outer length: 2000 mm
Outer width: 800 mm
Table load: 4000 kg

Tools

Type of tool holder: ISO 50, DIN 69871-A

Additional Information

Machine Benefits

Technical Machine Benefits:
- - T-slot distance: 140 mm
- - Feed range: 10 - 10000 mm/min (x, y, z)
- - Rapid traverses: 25000 mm/min (x, y, z)
- - Two longitudinal conveyors and one cross conveyor
- - Tank volume: 150 l
- - Conveying capacity 50 l/min
- - Manual universal milling head with 3000 min^1
- - Working in 2/3 shift operation

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
