➤ Used SPINNER TC 600 65 MC For sale | gindumac.com

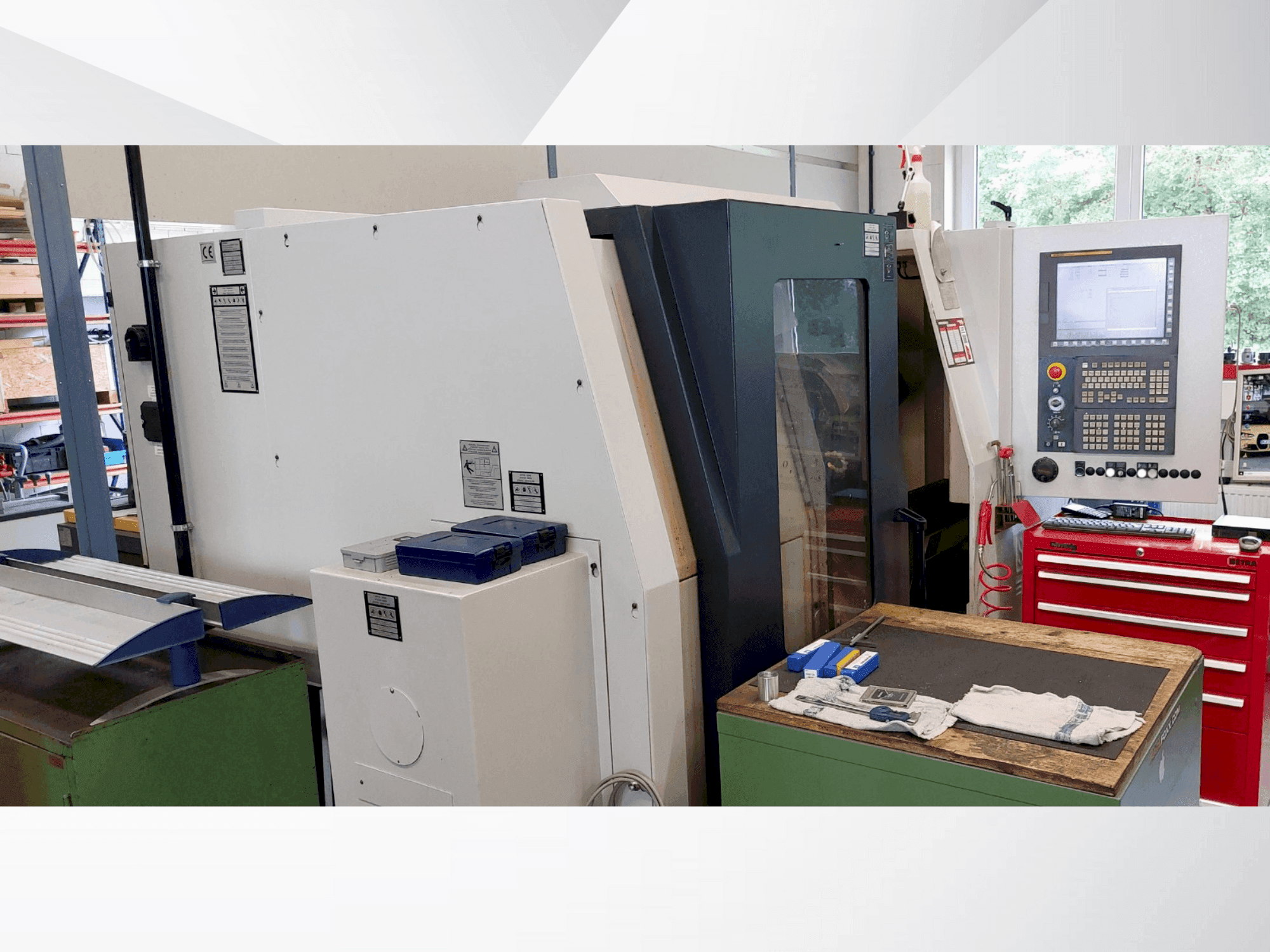

This SPINNER TC 600 65 MC was manufactured in 2012. A robust universal turning lathe machine, it features a max. turning diameter of 400mm and a length of 650mm. It includes two spindles with speeds up to 4500 and 6000 rpm respectively. Weighing between 5600-5800 kg, it's designed for precision and durability. Consider the SPINNER TC 600 65 MC machine we have for sale. Contact us for further details regarding this universal turning lathe machine.

Overview

brand: SPINNER
year: 2012
MODEL: TC 600 65 MC
application type: Milling
Location: Germany
machine type: Universal Machining Centre
availability: Sold

Technical Information - SPINNER TC 600 65 MC

General Data

Measurements width: 1600 MM
Measurements depth: 2500 MM
Measurements height: 2000 MM
Machine weight: 5800 KG

Main drive

Spindle speed range: spindle 1- 4500, spindle 2-6000 1/MIN
Number of axis: 2

Movement

X-AXIS Movement: 275 mm
Z-AXIS Movement: 700 mm

Media

Chip conveyor: Yes

Additional Equipment

- The turret will be fully equipped with tool holders, 3 of which are driven
- Control GE Fanuc 31iTA
- Chip conveyor TC600
- With enlarged L-shaped coolant tank approx. 180 litres
- Centrifugal pump 50 l/min /
- Three-jaw chuck 250mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle motor torque: turning spindle 1: 250 nm turning spindle 2: 80 nm
- - Max. Turning diameter: 400mm
- - Max. Turning length: 650mm
- - Mounting: mk 4

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
