➤ Used SPINNER TTS 65-DUPLEX For Sale | gindumac.com

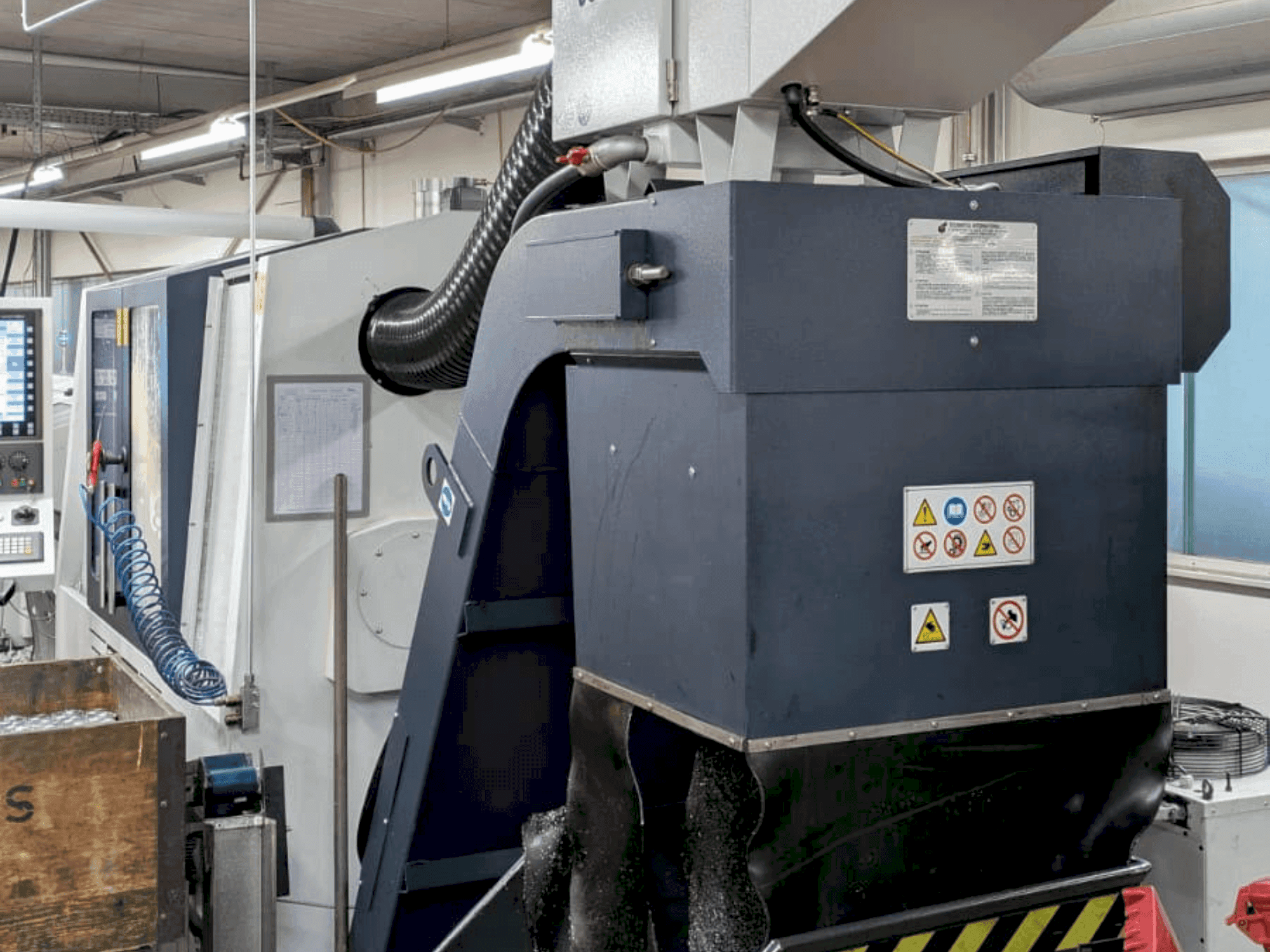

This 7-axis SPINNER TTS 65-DUPLEX horizontal turning machine was manufactured in 2020. It features a spindle bore of Ø65 mm, a chuck diameter of 210 mm, and a maximum spindle speed of 5000 rpm. The machine includes a 3-meter bar loader, enhancing its productivity. With rapid traverses of 30 m/min and an acceleration of 0.5 g, it ensures efficient operations. If you are looking to get high-quality turning capabilities, consider the SPINNER TTS 65-DUPLEX machine we have for sale.Contact us for more information.

Overview

brand: SPINNER
year: 2020
MODEL: TTS 65-DUPLEX
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Immediately
control unit brand: SIEMENS

Technical Information - SPINNER TTS 65-DUPLEX

General Data

Measurements width: 2130 mm
Measurements depth: 2880 mm
Measurements height: 1990 mm
Machine weight: 7500 kg

Control Unit

Brand: SIEMENS
Model: 840D-SL

Main drive

Spindle speed range: 5000 rpm 1/MIN
Spindle motor power: 24 kW
Spindle bore: Ø65 mm
Number of axis: 7

Movement

X-AXIS Rapid traverse: 30 m/min
Y-AXIS Rapid traverse: 30 m/min
Z-AXIS Rapid traverse: 30 m/min

Media

Main electronic connection: 60 kW

Additional Equipment

- Coolant Tank Volume: Approximately 200 liters
- Hydraulic Tank Volume: Approximately 120 liters
- Central Lubrication Unit Volume: Approximately 2 liters
- Operating Current (IB): 76 A
- Rated Current of Protection Device (IN): 80 A

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Acceleration: 0. 5 g
- - Spindle nose: a6 type
- - Chuck diameter: 210 mm
- - Maximum torque: 151 nm / 115 nm (s3 40% / s1)
- - Coolant tank volume: approximately 200 liters

Extra information

- Travel Paths: X1, X3: 180 mm X2: 180 mm Y1, Y3: ±45 mm Z1, Z3: 704 mm Z2: 620 mm E2: 720 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
