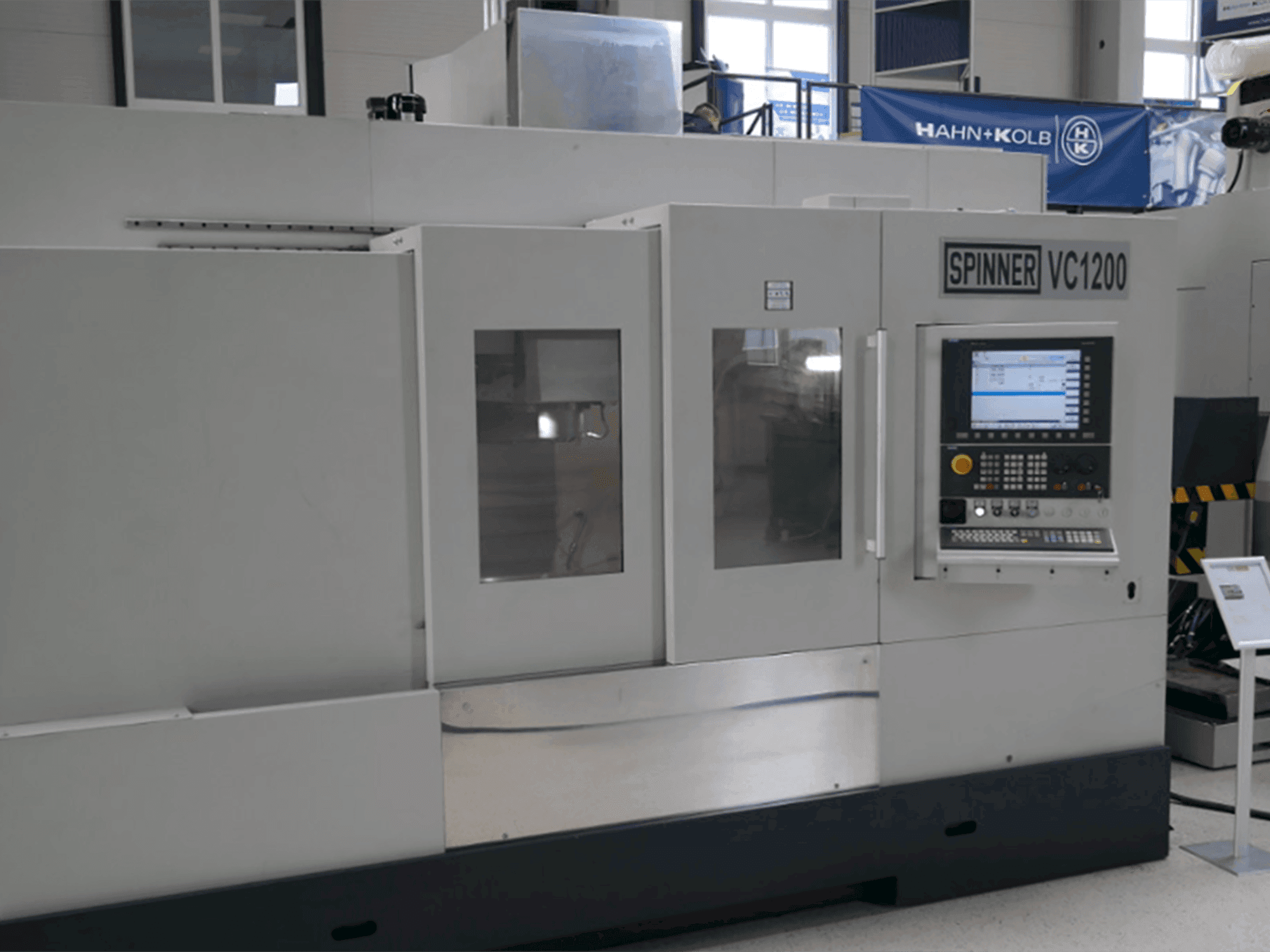

SPINNER VC 1200 Vertical Machining Center

This SPINNER VC 1200 Vertical Machining Center was manufactured in 2014. It has a working history of approximately 22000 hours. It is operated through a Siemens 840D-SL control unit. This machine can operate with a spindle speed up to 12000 rpm. It includes a chip conveyor, and a coolant.

Overview

brand: SPINNER
year: 2014
MODEL: VC 1200
production hours: 22000
application type: Milling
Location: Germany
machine type: Universal Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - SPINNER VC 1200

General Data

Measurements width: 4240 mm
Measurements depth: 2270 mm
Measurements height: 3000 mm
Machine weight: 10500 kg

Control Unit

Model: 840D-SL
Brand: SIEMENS

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 28 kW

Movement

X-AXIS Movement: 1200 mm
X-AXIS Rapid traverse: 48 m/min
Y-AXIS Movement: 730 mm
Y-AXIS Rapid traverse: 48 m/min
Z-AXIS Movement: 650 mm
Z-AXIS Rapid traverse: 48 m/min

Table

Outer length: 1400 mm
Outer width: 710 mm
Table load: 1000 kg

Tools

Type of tool holder: SK 40

Media

Main electronic connection: 400 V

Additional Equipment

- Chip conveyor
- Coolant thought spindle, 22 bar

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle torque: 178 nm
- - Tool magazin: 32 stations
- - Clamping surface: 1400 x 710 mm
- - Load capacity: 1000 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
