STAR MICRONICS - SB-20R-GDE-TUR-STA-2024-00001

Additional Equipment

• - Linear slide
• - 6-fold tool holder shank 12x12mm
• - 2 cross drilling attachments ER11
• - 2 cross drilling units ER16
• - Drilling device for front/rear face machining with 4 drilling quills (2x ER16 single, 2x ER16 double)
• - Drive unit for tools for main side machining
• - ER16 front drilling unit for rear end machining with reinforced bearing
• - 4 additional free M commands for valve control of the HP valve positions

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Counter spindle for rear end machining
  • - Cut-off steel breakage protection
  • - Mechanical workpiece ejection device
  • - Part ejection control
  • - Blow-out device for counter spindle
  • - Workpiece collector
  • - Workpiece conveyor for discharging the workpiecesworkpiece conveyor for discharging the workpieces
  • - Separate coolant tank with level and flow monitoring
  • - Automatic centralised lubrication with level monitoring
  • - Tool box with special tools
• Qualitative Machine Benefits:
  • - 5 cross drilling units can be used if the 4-fold drilling unit is not used
  • - Rear end machining with 4 machining stations er16
  • - Drive unit for tools for rear end machining on 4 stations
  • - 4 additional m commands for valve control of the hp valve positions
  • - Hp pressure levels: up to 8 possible

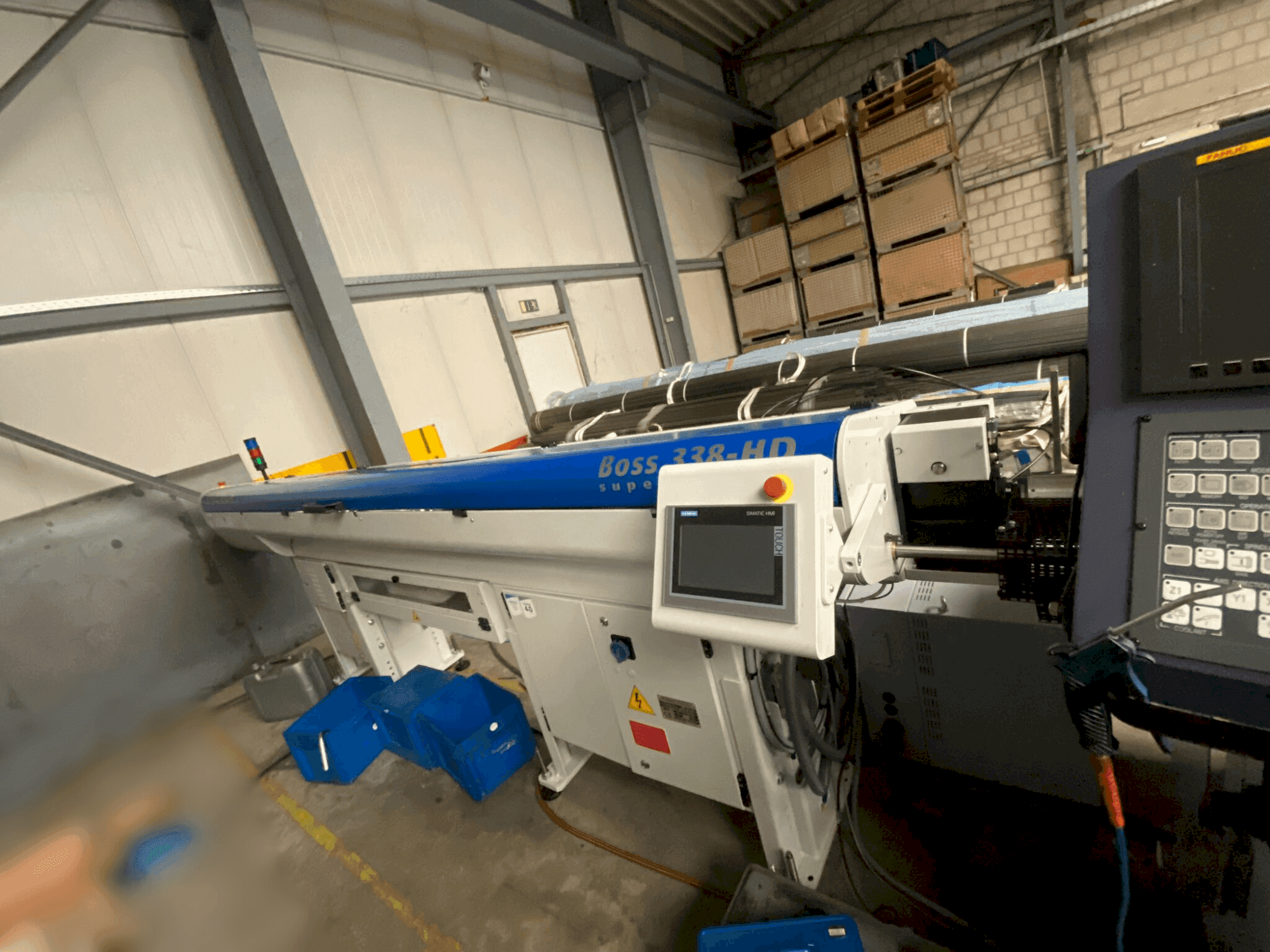

  • - Loading magazine iemca boss 338/32 h: channel diameter 24 mm, Ø 3-38 mm, slide diameter 23 mm

Extra information

• - Machine still under power
