Star SR20J type C Lathe

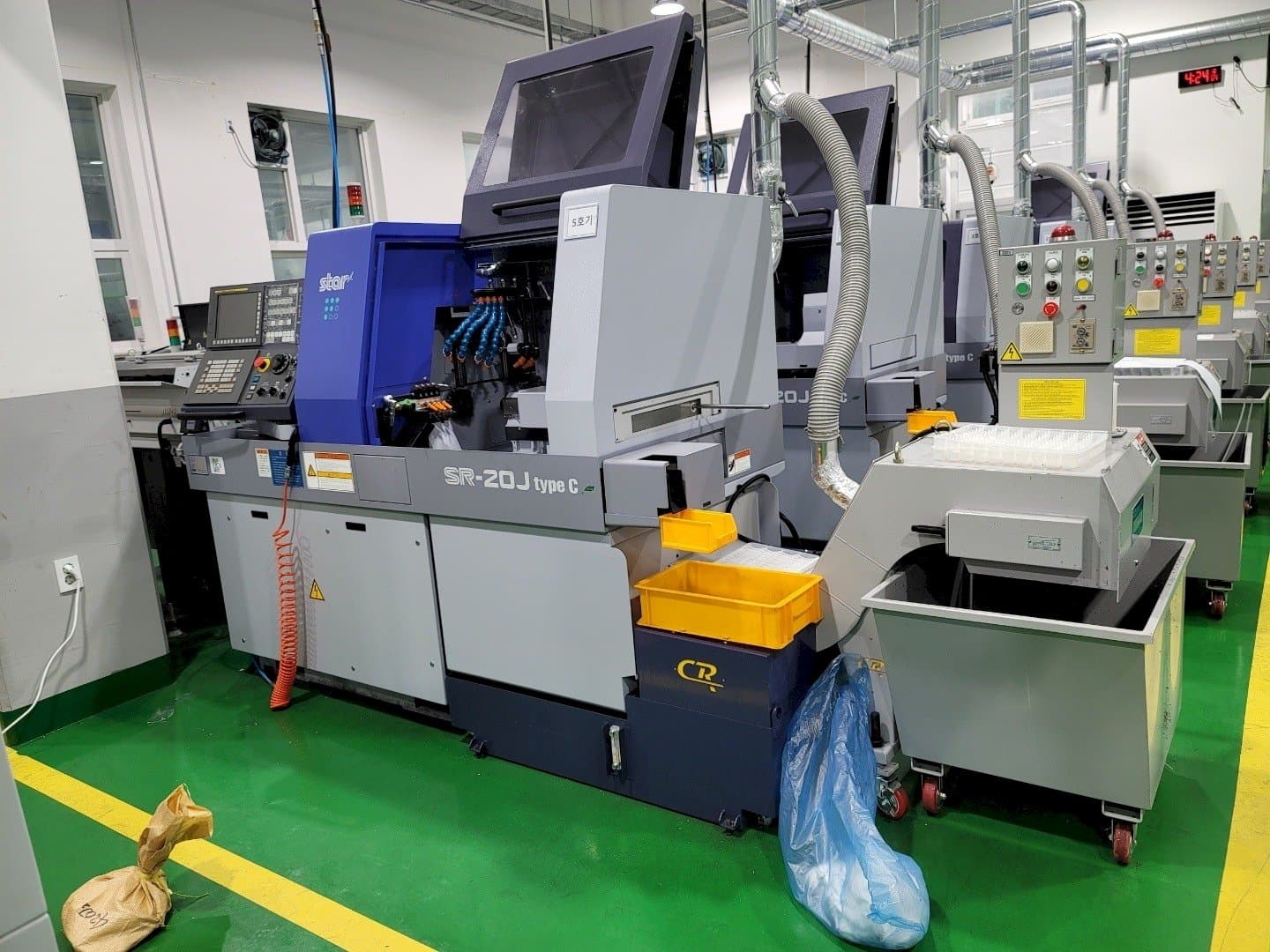

This Star SR20J type C Lathe was made in Japan in the year 2020. It has a record of only 200 hours. This machine is operated through a FANUC Series 31i-MODEL B control unit. It can work with a spindle speed up to 10000 rpm and a headstock stroke 205 mm. This machine has a sub-spindle and 4 spindle drilling head. Included coolant pump 120 Bar.

Overview

brand: Star
year: 2020
MODEL: SR20J type C
application type: Turning
Location: South Korea
machine type: Swiss Type Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Star SR20J type C

General Data

Machine weight: 2200 kg

Control Unit

Model: SERIES 31I-MODEL B
Brand: FANUC

Main drive

Spindle speed range: 10000 1/MIN
Spindle motor power: 2.2 KW / 3.7 KW

Movement

X-AXIS Rapid traverse: 35 M/MIN
Y-AXIS Rapid traverse: 35 M/MIN
Z-AXIS Rapid traverse: 35 M/MIN

Media

Main electronic connection: 220 V 60 HZ
Chip conveyor: Yes

Additional Equipment

- INCLUDED COOLANT PUMP 120 BAR

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Diameter: 20 mm
- - Max. Headstock stroke standard: 205 mm
- - Number of tools: 6 tools; front 4 tools, rear 4 tools
- - Spindle speed: 8000 rpm (secondary) drive motor: 1. 2 kw
- - Tool shank: 12 mm [4 spindle sleeve holder]
- - Max. Drilling capability:∮10mm; max. Tapping capability: m8*p1. 25
- - [2 spindle front sleeve holder] number of tools: front 2 tools
- - Max. Drilling capability:∮ 8 mm, max. Depth of hole: 100mm
- - Number of tools: cross milling 3 tools
- - Max. Drilling capability:∮8 mm; max. Tapping capability: m6*p1. 0
Qualitative Machine Benefits:
- - Rapid feed rate: 35m/min (xb, zb)
- - Main spindle indexing angle: c axis control
- - Axis: c1, c2, x1, y1, z1, x2, z2
- - Bar-feeder (barload bwg)
- - Chip bucket
- - Call right (led 3 step)
- - Guideway type: lm guide
- - Mpg handle; manual books
- - Ce mark
- - The machine has sub-spindle and 4 spindle drilling head

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
