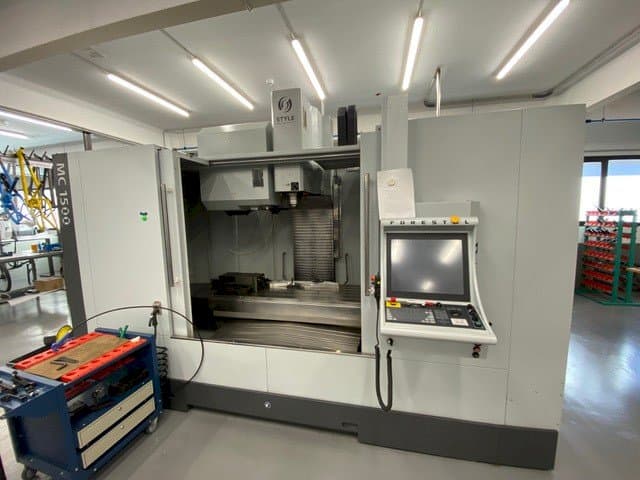

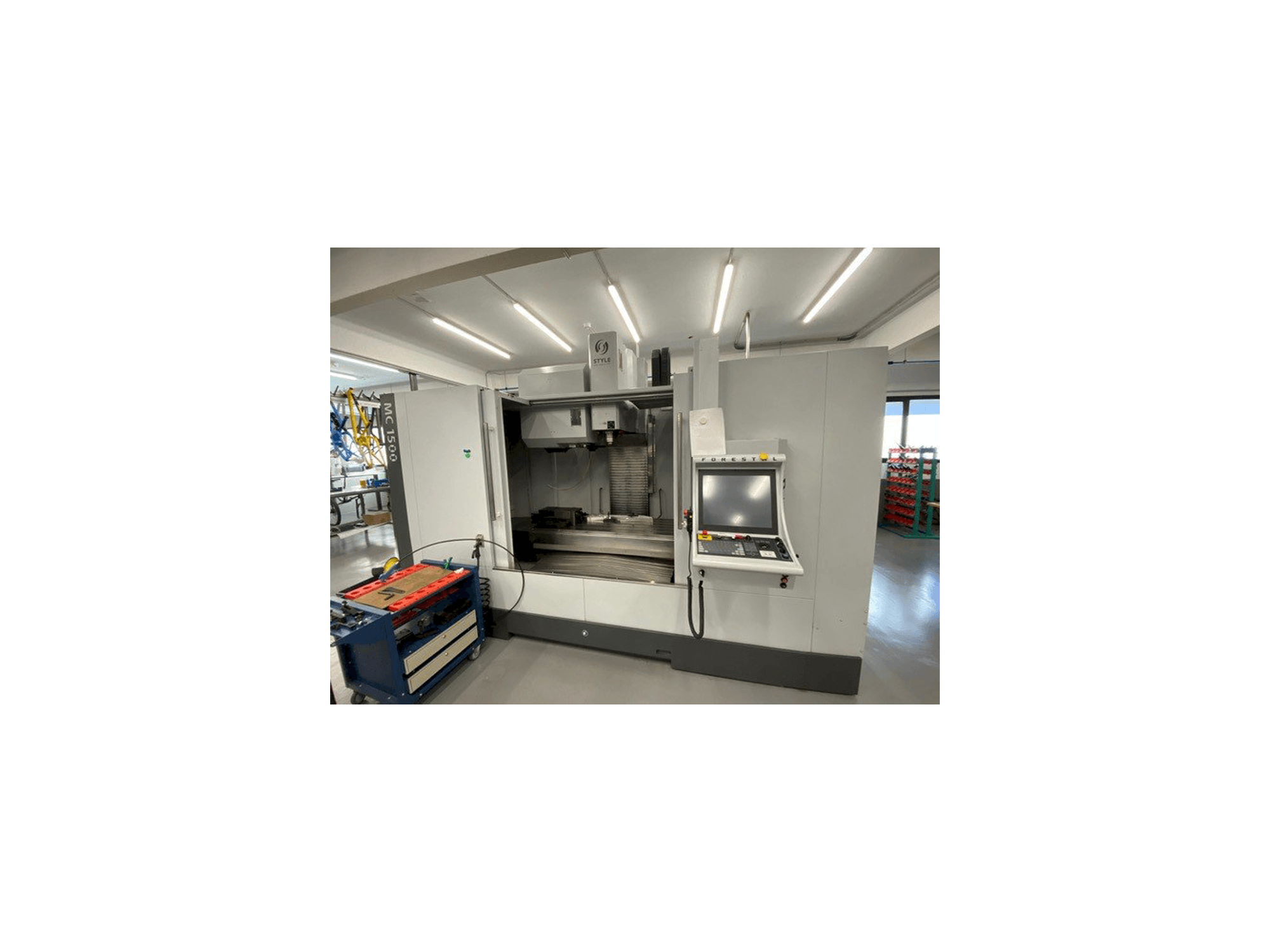

STYLE MC 1500 Vertical Machining center

This STYLE MC 1500 Vertical Machining center was manufactured in the year 2020 in the Netherlands and has 2255 production hours. It has 3 axis. The machine has a spindle speed of 10000 rpm. Original machine PDF (EN) is attached, see below.

Overview

brand: STYLE
year: 2020
MODEL: MC 1500
production hours: 2255
application type: Milling
Location: Andorra
machine type: Vertical Machining Centre
availability: Sold

Technical Information - STYLE MC 1500

General Data

Measurements width: 4200 mm
Measurements depth: 2400 mm
Measurements height: 3200 mm
Machine weight: 6600 kg

Main drive

Spindle speed range: 10000 1/MIN
Spindle motor power: 11 kW
Tool taper: BT 40
Number of axis: 3

Movement

X-AXIS Movement: 1500 mm
Y-AXIS Movement: 680 mm
Z-AXIS Movement: 880 mm

Table

Outer length: 1700 mm
Outer width: 600 mm
Height adjustment: 850 mm
Distance between: 100-980 mm
Table load: 1000 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance spindle nose to z-axis way cover 720 mm
- - X, y and z-axis: rapid feed x/y/z 24/24/24 m/min feed rate x/y/z 12/12/12 m/min
- - Guide way type linear way
- - Tool changer
- - Vertical automatic tool changer pos. 24

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
