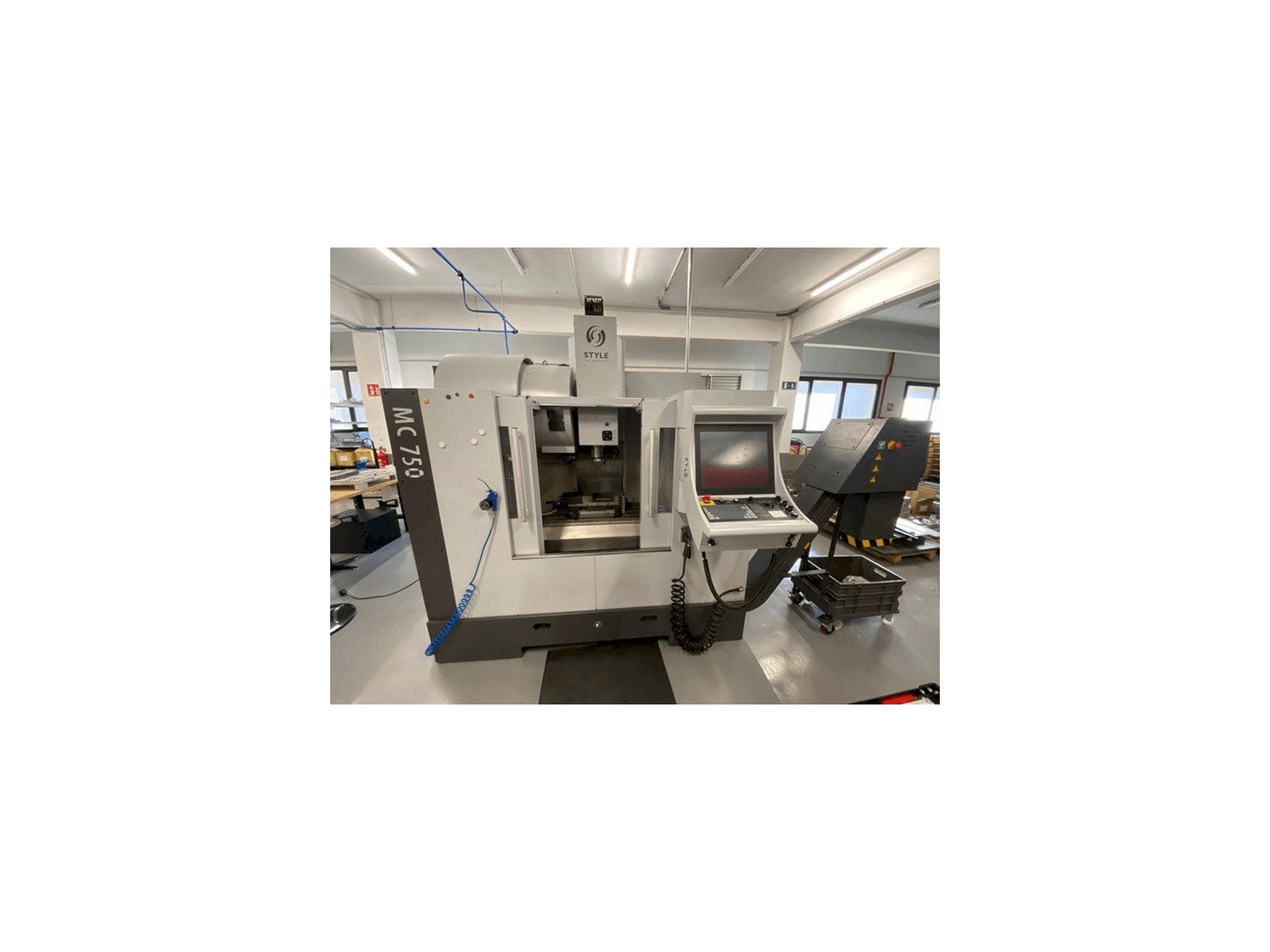

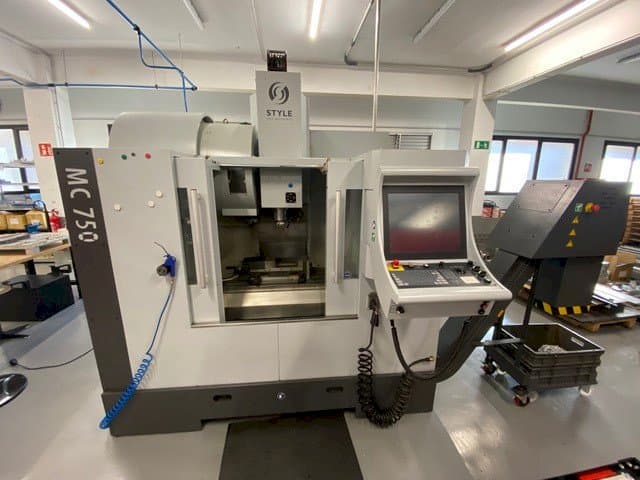

STYLE MC 750 Vertical Machining center

This STYLE MC 750 Vertical Machining center was manufactured in the year 2020 in the Netherlands and has 1156 production hours. It has 4 axis. The machine has a spindle speed of 8000 rpm. See the extract of the original order confirmation (EN) attached as PDF below.

Overview

brand: STYLE
year: 2020
MODEL: MC 750
production hours: 1156
application type: Milling
Location: Andorra
machine type: Machining centers (vertical)
availability: Sold
GINDUMAC ID: AD-MIL-STY-2020-00002

Technical Information

General Data

Measurements width: 2200 mm
Measurements depth: 2100 mm
Measurements height: 2500 mm
Machine weight: 3300 kg

Main drive

Spindle speed range: 8000 1/MIN
Spindle motor power: 5.5 kW
Tool taper: BT 40
Number of axis: 4

Movement

X-AXIS Movement: 760 mm

Table

Outer length: 900 mm
Outer width: 410 mm
Height adjustment: 820 mm
Table load: 350 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance spindle nose to table 100-560 mm
- - Distance spindle nose to column 475 mm
- - X-, y- and z-axis
- - Rapid movement x/y/z 24 m/min
- - Feed rate x/y/z 10 m/min
- - Axis guide width x/y/z mm lineair 35
- - Automatic tool changer 16/24
- - Max. Weight tools 8 kg
- - Max. Tools length 300 mm
- - T-slots (din 650) 16x100x4 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
