➤ Used Takumi V11 Machining Centre For sale | gindumac.com

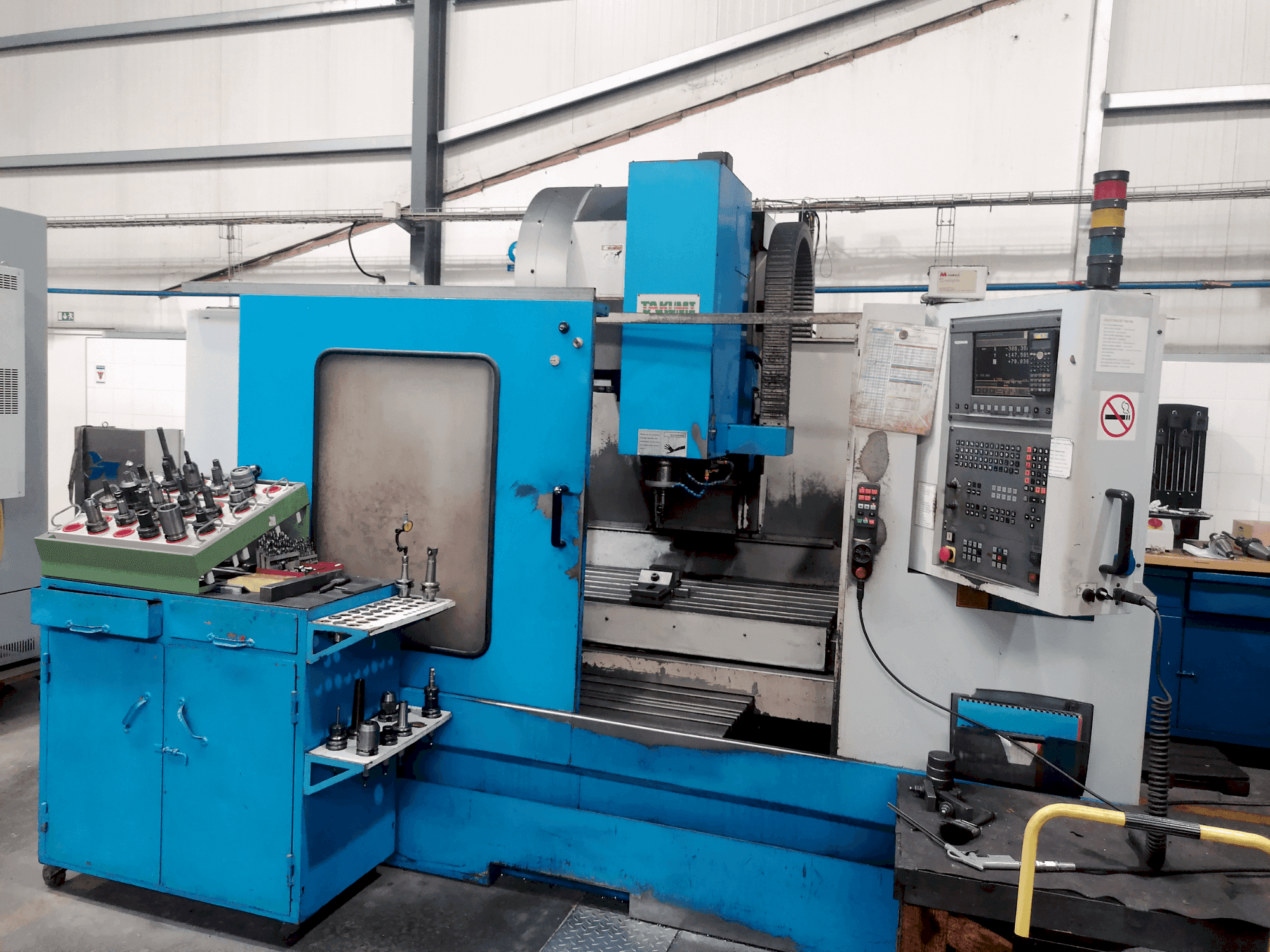

This 3-axis Takumi V11 was manufactured in 1999 and features a Heidenhain TNC 426 MA control, a portable electronic steering wheel, and an RS 232 interface. The table supports up to 1090 kg with a surface of 1150x550 mm. It boasts a maximum speed of 12,000 rpm and rapid advances in X and Y at 24000 mm/min. The automatic tool changer accommodates 24 tools. Consider the opportunity to buy this Takumi V11 machining centre. Contact us for more information.

Overview

brand: Takumi
year: 1999
MODEL: V11
application type: Milling
Location: Portugal
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Takumi V11

Control Unit

Model: TNC 426 MA
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 12000 rpm 1/MIN
Spindle motor power: 11 kW
Tool taper: BT40
Number of axis: 3

Movement

X-AXIS Movement: 1100 mm
Y-AXIS Movement: 550 mm
Z-AXIS Movement: 650 mm

Tools

Max weight: 7 kg
Max tool diameter: 90 mm/ 180 mm
Max tool length: 250 mm

Additional Equipment

- Portable electronic steering wheel, RS 232 interface, Automatic Tool Change system.

Additional Information

Machine Benefits

Technical Machine Benefits:
- - High spindle speed, rapid advances, precision in positioning and repeatability.
- - Table surface: 1150x550 mm.
- - T-slots: 18x5x100 mm.
- - Allowable weight on table: 1090 kg.
- - Distances: from spindle to table 150 ~ 800 mm, from center of table to column 550 mm.
Qualitative Machine Benefits:
- - Robust construction and precision engineering.

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
