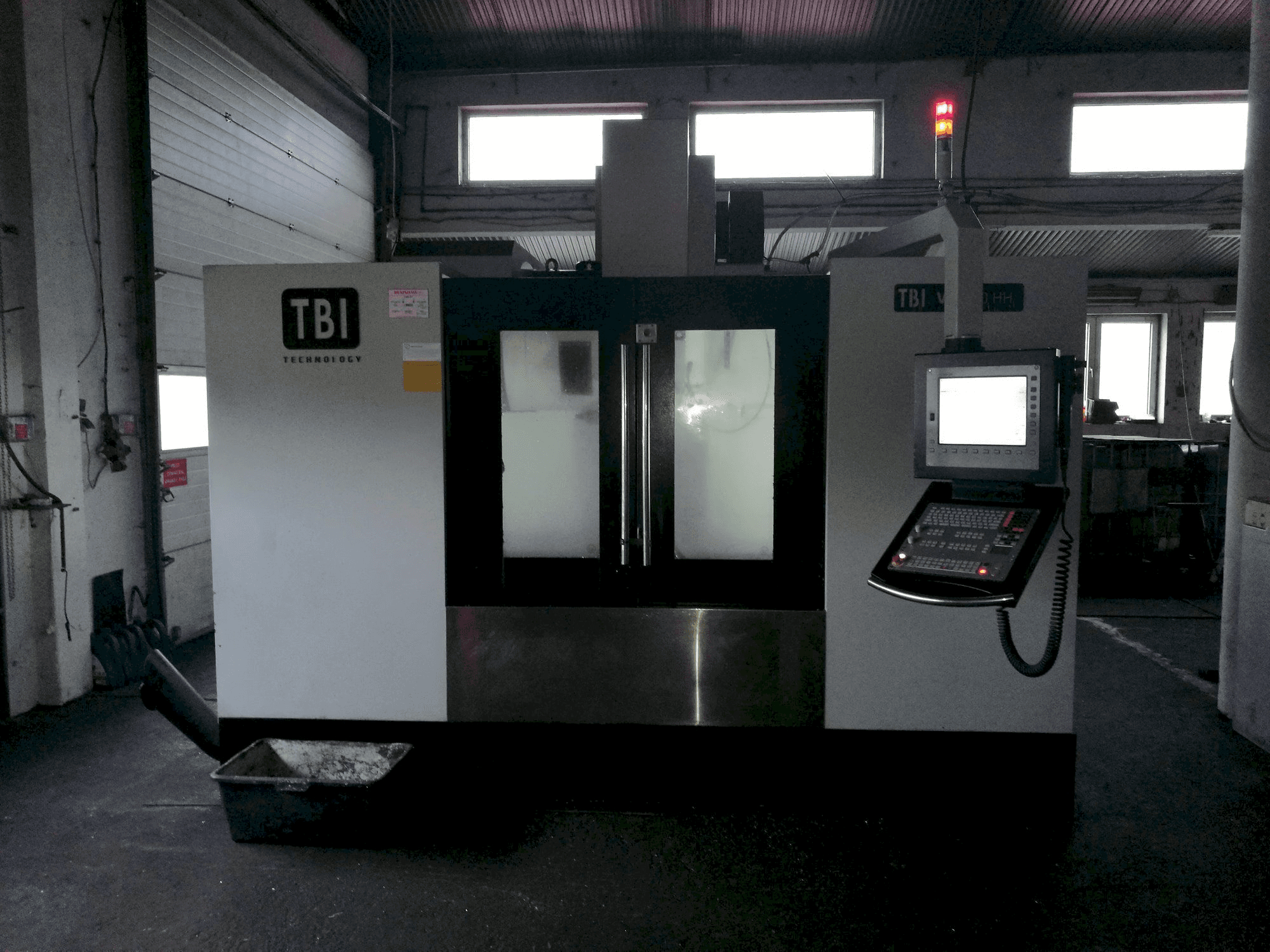

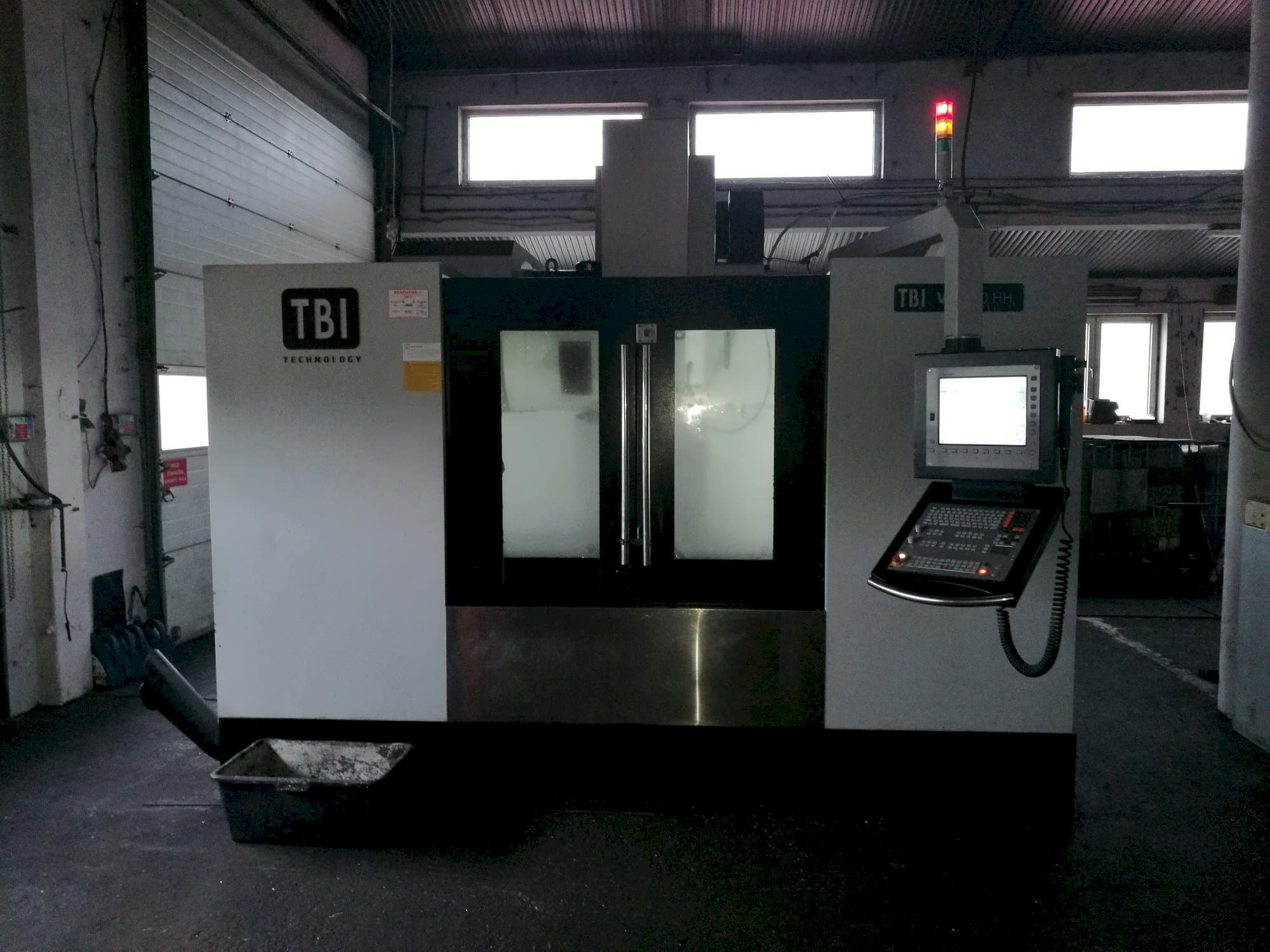

TBI VC 1270 HH Vertical Machining Center

This TBI VC 1270 HH Vertical Machining Center was manufactured in the year 2014 in Taiwan and has been working for 6968 hours. Equipped with a HEIDENHAIN TNC 620 Control unit, this machine includes a Renishaw sonda for tool and details and an oil skimmer.

Overview

brand: TBI
year: 2014
MODEL: VC 1270 HH
production hours: 6968
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - TBI VC 1270 HH

General Data

Measurements width: 3400 mm
Measurements depth: 2250 mm
Measurements height: 2800 mm
Machine weight: 7700 kg

Control Unit

Model: TNC 620
Brand: HEIDENHAIN

Movement

X-AXIS Movement: 1200 mm
Y-AXIS Movement: 700 mm
Z-AXIS Movement: 650 mm

Workpiece

Workpiece weight: 1200 kg

Table

Outer length: 1350 mm
Outer width: 600 mm

Media

Main electronic connection: 400V / 50Hz
Power consumption: 45 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- Renishaw sonda for tool and details
- oil skimmer

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
