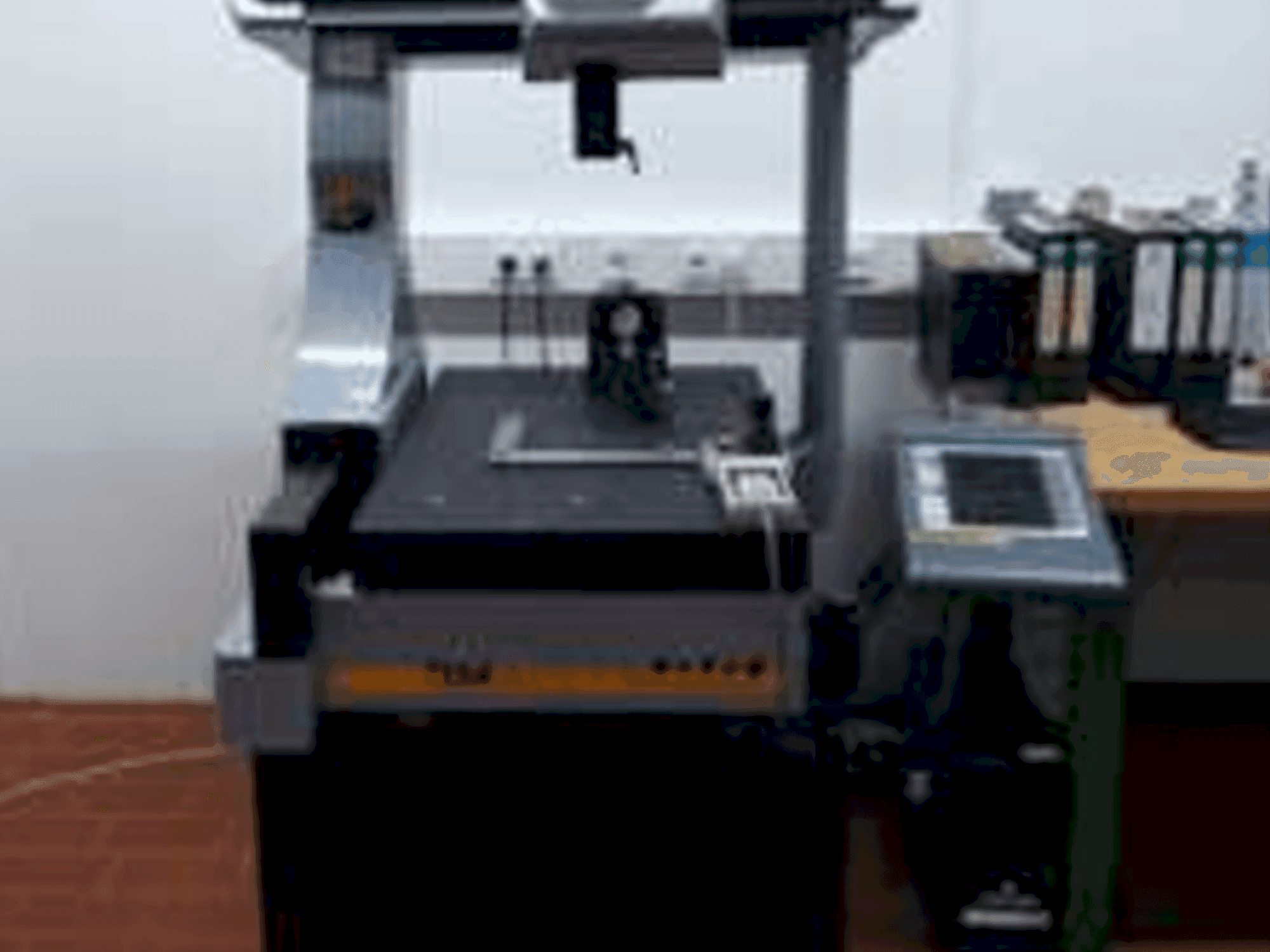

➤ Used TESA Micro-Hite MH3D Recorder 454 Tesaslar-i | CMM

This 3-axis TESA Micro-Hite MH3D Recorder 454 Tesaslar-i was manufactured in 2013. Ideal for precise measurements, this CMM machine offers reliable performance for quality control in manufacturing. Consider the opportunity to buy this TESA Micro-Hite MH3D Recorder 454 CMM machine. Contact us for more information about this machine.

Overview

brand: TESA
year: 2013
MODEL: Micro-Hite MH3D Recorder 454 Tesaslar-i
application type: Measuring
Location: Germany
machine type: Coordinate Measuring Machine (CMM)
availability: Immediately

Technical Information - TESA Micro-Hite MH3D Recorder 454 Tesaslar-i

General Data

Machine weight: 350 kg

Main drive

Number of axis: 3

Workpiece

Workpiece x: 600 mm
Workpiece y: 750 mm
Workpiece z: 430 mm

Table

Table load: 227 kg

Tools

Type of tool holder: SK40 / VDI 30

Additional Equipment

- Accessories: Various probes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Measuring range (x/y/z): 454 x 440 x 490 x 390 mm
- - Measurement uncertainty according to vdi/vde: u1 (3+ 3l/1000) µm u3 (3+ 4l/1000) µm
- - Repeatability: joystick operation: 3 µm cnc operation: 2. 5 µm
- - Maximum traverse speed: 760 mm/s
- - Compressed air requirements: pressure: 4 bar, filtered to iso 8753 part 1 class 4 air consumption: max. 81 l/min
- - Voltage: 115 to 230 v
- - Frequency: 50-60 hz
- - Current: 0. 3 - 0. 7 a
- - Operating temperature range: 20 ± 1°c
- - Working temperature range: 13 to 38°c

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
