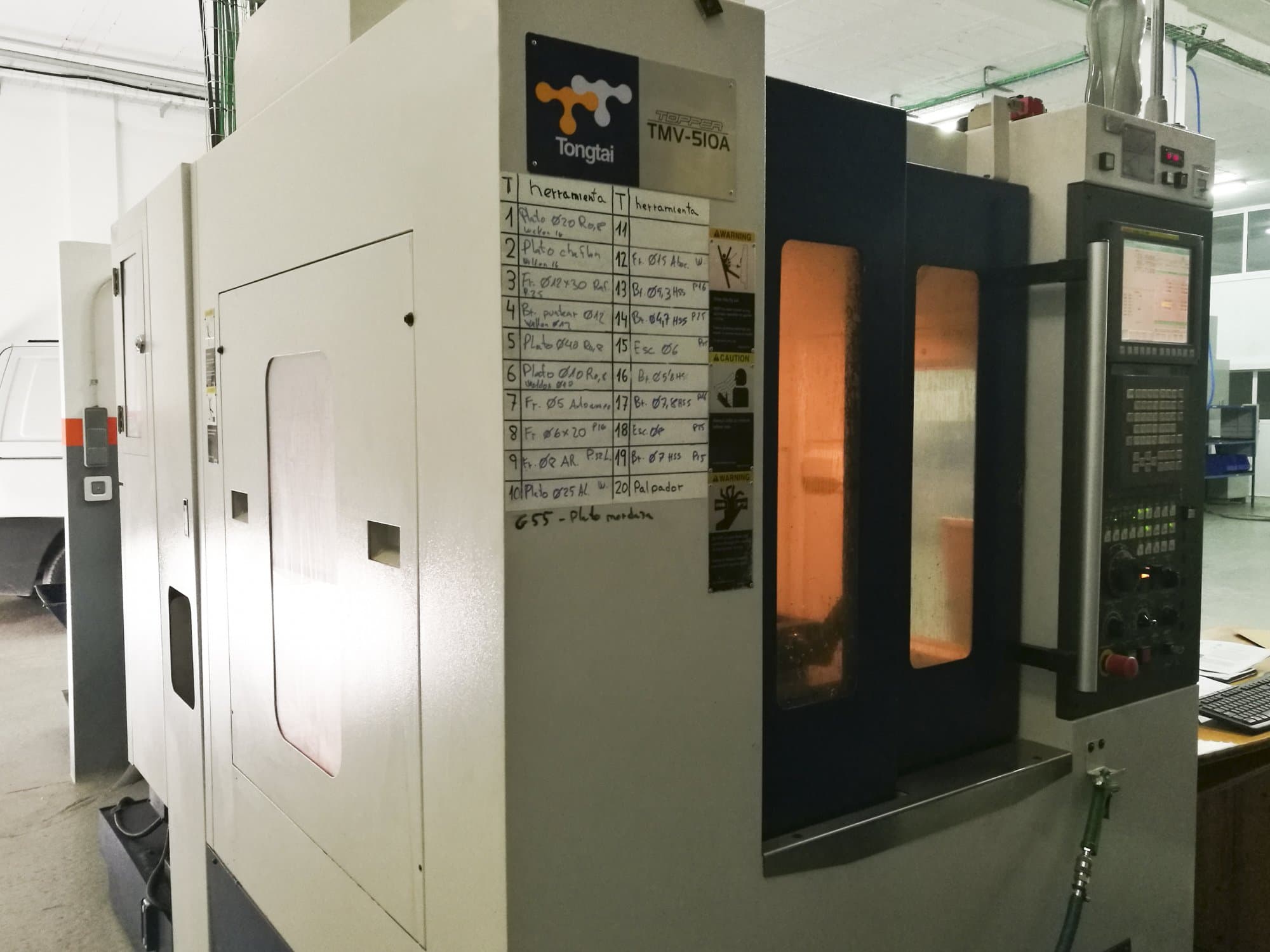

Tongtai TMV-510A Machining Center

This Tongtai TMV-510A Machining Center has a record of 5000 working hours since its manufacture in 2012. Operated through a FANUC 0i-MD Control unit with Manual Guide, HPCC and Data server, this equipment has handled mostly aluminium and soft steel. As main advantages, the TMV-510A stands out for its bt30 cone and its high-speed capability, and is an exceeding model for working in series (especially with soft materials). Moreover, 20-25 cones are included as additional equipment.

Overview

brand: Tongtai
year: 2012
MODEL: TMV-510A
production hours: 5000
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - Tongtai TMV-510A

General Data

Measurements width: 2100 mm
Measurements depth: 1400 mm
Measurements height: 2300 mm
Machine weight: 2500 kg

Control Unit

Model: 0i-MD
Interface: With Manual Guide, HPCC, Data server
Brand: FANUC

Main drive

Spindle speed range: 15000 1/min
Tool taper: BT-30

Movement

X-AXIS Movement: 510 mm
Y-AXIS Movement: 360 mm
Z-AXIS Movement: 300 mm

Table

Outer length: 600 mm
Outer width: 360 mm

Tools

Slots in storage: 20

Media

Main electronic connection: 380 V
Power consumption: 9 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- 20-25 Cones

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
