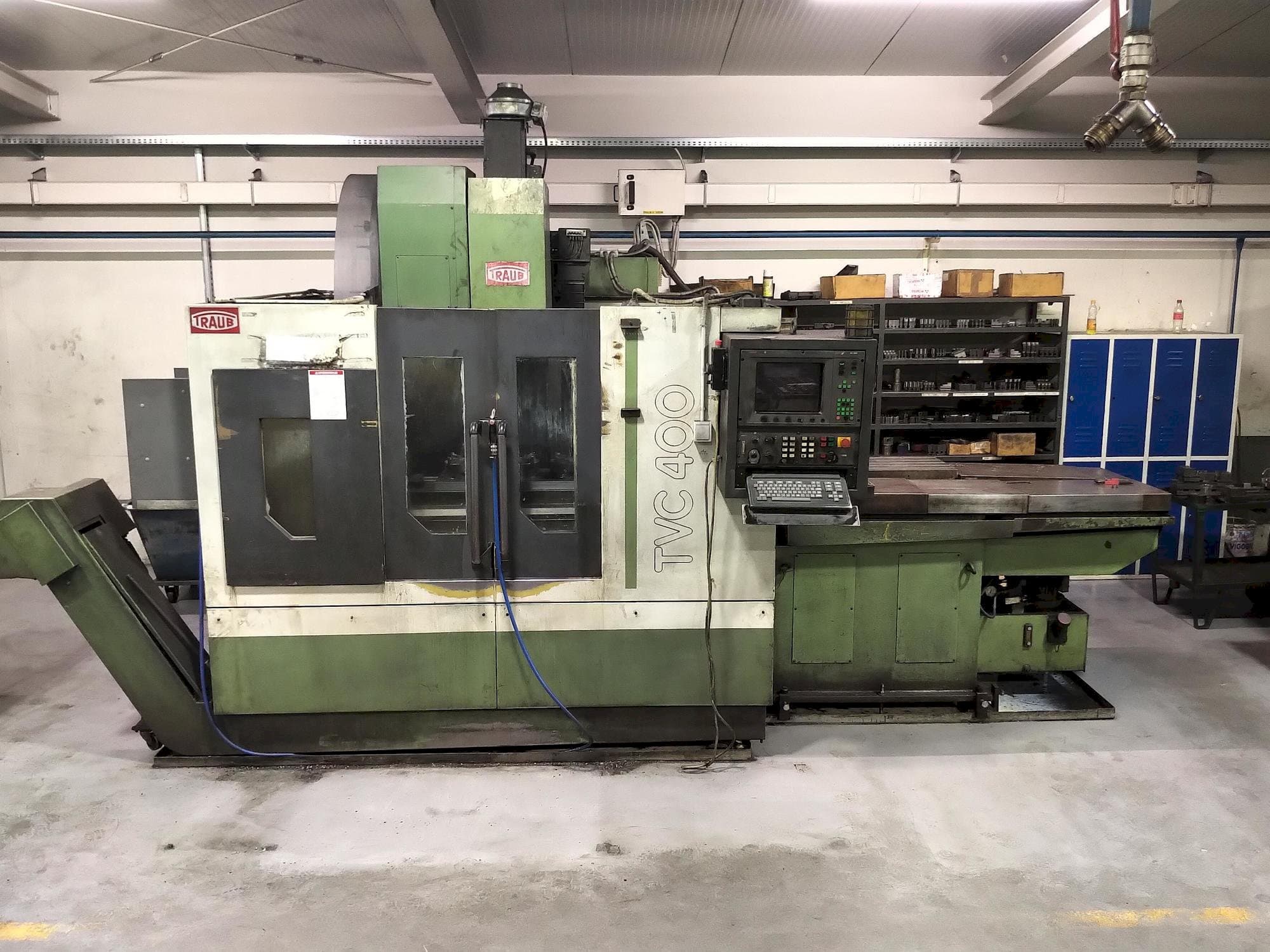

TRAUB TVC 400 P Vertical Machining Center

This TRAUB TVC 400 P Vertical Machining Center, produced in Italy in 1992. It has a production history of approximately 47000 working hours. It is equipped with a Bosch CC200 control unit. This machine can work with a spindles up to 6000 rpm. This model comes with a pallet changer and 2 pallets. During this past, this TRAUB has mainly worked with bronze, cast iron and steel.

Overview

brand: TRAUB
year: 1992
MODEL: TVC 400 P
production hours: 47000
application type: Milling
Location: Croatia
machine type: Vertical Machining Centre
availability: Sold
control unit brand: BOSCH

Technical Information - TRAUB TVC 400 P

General Data

Measurements width: 3620 mm
Measurements depth: 2440 mm
Measurements height: 2804 mm
Machine weight: 7500 kg

Control Unit

Model: CC200
CNC main language: Italian
Brand: BOSCH

Main drive

Number of spindles: 1
Spindle speed range: 6000 rpm 1/MIN

Movement

X-AXIS Movement: 700 mm
Y-AXIS Movement: 500 mm
Z-AXIS Movement: 650 mm

Workpiece

Workpiece weight: 500 kg

Table

Outer length: 1000 mm
Outer width: 400 mm
Number of tslots: 5
Distance between: 80 mm

Tools

Slots in storage: 24
Max weight: 8 kg
Max tool diameter: 100 mm
Max tool length: 300 mm
Type of tool holder: ISO 40 DIN 69871

Media

Main electronic connection: 380V 50Hz
Power consumption: 15 kVA
Chip conveyor: Yes

Additional Information

Machine history

Material type: Bronze, cast iron, steel
End product: Moulds for glass
Industries: Tooling, glass industry

Machine Benefits

Technical Machine Benefits:
- - Pallet changer, 2 pallets

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
