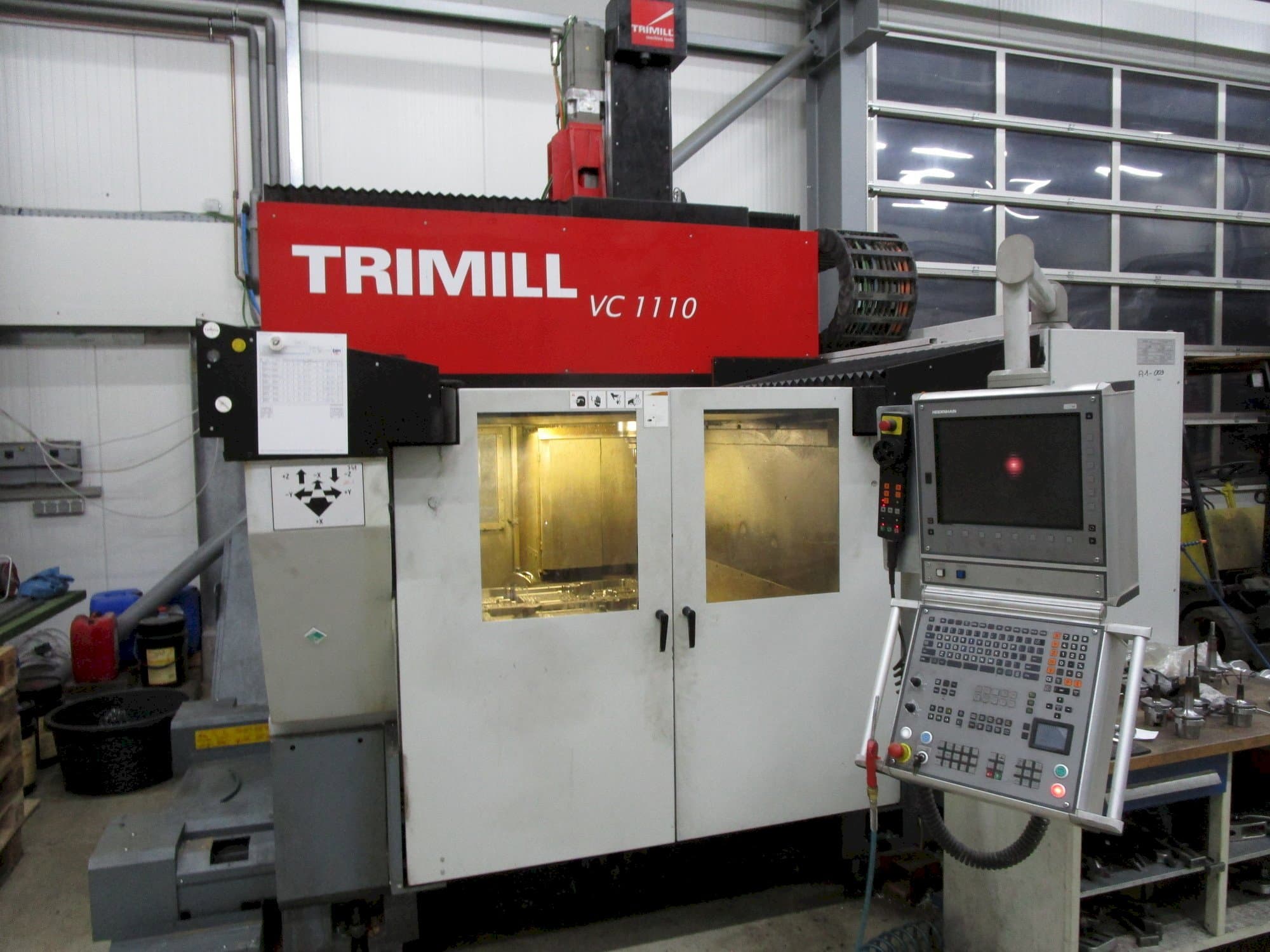

TRIMILL VC1110 Vertical Machining Center

This TRIMILL VC1110 Vertical Machining Center was made in the year 2011 in the Czech Republic and has 34000 production hours, of which 15250 are spindle hours. It is equipped with a Heidenhain iTNC 530 control unit. The machine has a spindle speed of 24000 rpm.

Overview

brand: TRIMILL
year: 2011
MODEL: VC1110
production hours: 34000
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - TRIMILL VC1110

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 24000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1100 mm
Y-AXIS Movement: 1000 mm
Z-AXIS Movement: 700 mm

Workpiece

Workpiece weight: 8000 kg

Table

Outer length: 1300 mm
Outer width: 1370 mm

Tools

Type of tool holder: HSK - A100

Additional Information

Machine Benefits

Technical Machine Benefits:
- - High-frequency main spindle 25 kw, 170 nm, hsk 80 tool holder
- - Milling spindle cooling
- - Supply of compressed air through the inner spindle
- - Machine table for receiving the workpieces
- - Cnc control heidenhain itnc 530 hsci with 15" tft color screen
- - Direct path measuring systems in all axes
- - Tool changer in plate design for 10 tools
- - 2 screw conveyors, 1 gooseneck slat conveyor
- - Work area enclosure complete, incl. Textile roof
- - High frequency finishing spindle imt 8 kw with automatic tool clamping hsk 40, 24. 000 1/min, docking station
Qualitative Machine Benefits:
- - Blum laser control for tool measurement
- - Low pressure minimum quantity oiling with external feed trimill inform
- - Trimill teleservice
- - Attachment clamping plate 1. 300 x 1. 350 x 150 mm with t-slots
- - Stable 3-axis machine, specially developed for tool, die and mold making
- - Traversing speeds [mm/min] 30,000
- - Axis accelerations [m/s2] 3

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
