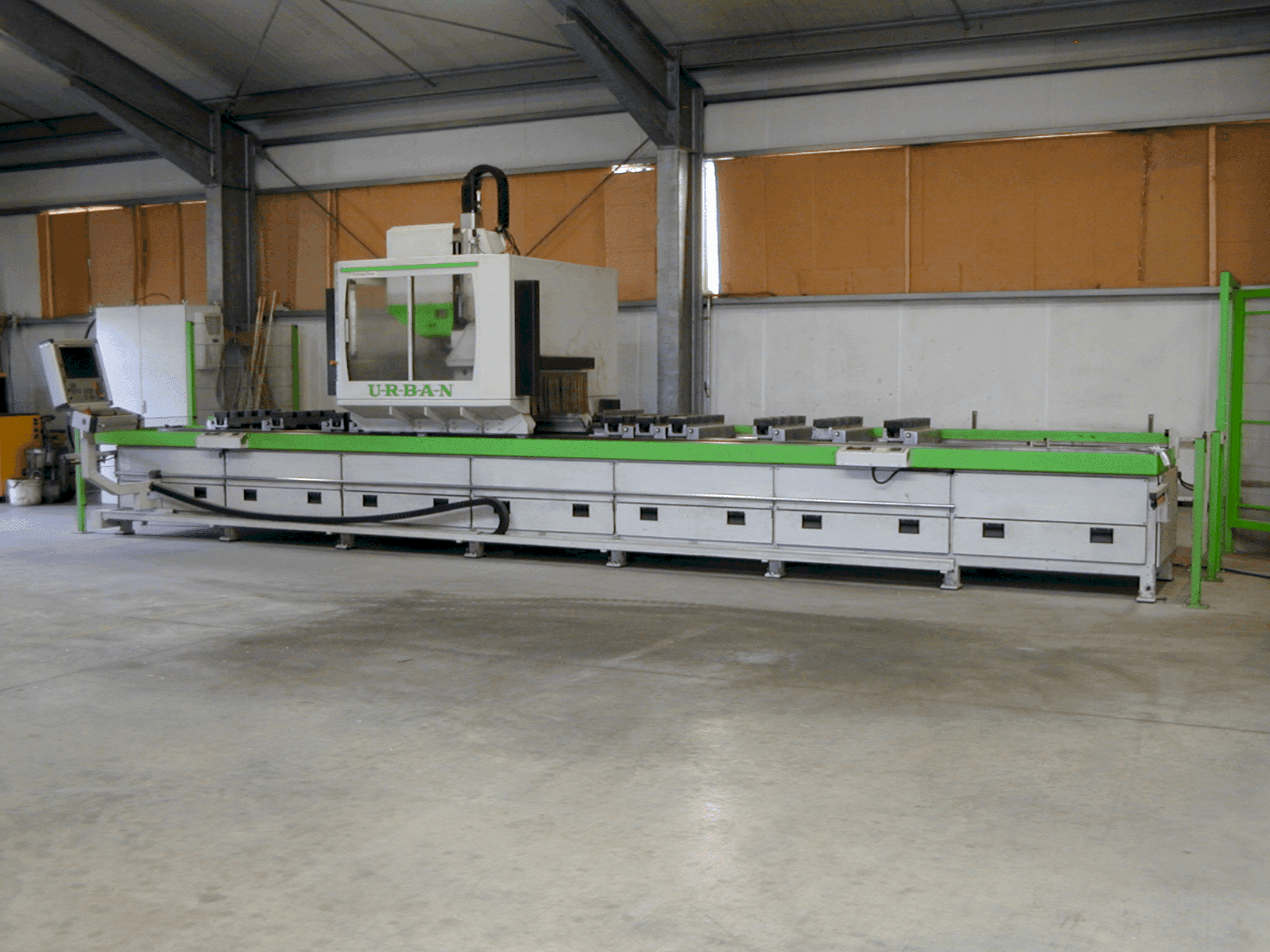

Front view of URBAN PF 6500  machine

URBAN - PF 6500DE-MIL-URB-2009-00001

73,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 3-axis URBAN PF 6500 milling machine was manufactured in 2009. It features a Heidenhain ITNC 620 CNC control, a 12-position tool changer, and a spindle capable of 6000 rpm. The machine offers a machining length of 6500 mm and supports a table load of up to 500 kg/m. Additional features include a special hydraulic/pneumatic clamping unit and safety fencing. A great opportunity to buy this URBAN PF 6500 milling machine. Contact us for further details regarding this milling machine.

Overview

  • brand: URBAN
  • year: 2009
  • MODEL: PF 6500
  • application type: Milling
  • Location: Germany
  • machine type: Universal Machining Centre
  • availability: Immediately
  • control unit brand: Heidenhain

Technical Information - URBAN PF 6500

General Data

  • Machine weight: 6500 kg

Control Unit

  • Brand: Heidenhain
  • Model: ITNC 620

Main drive

  • Number of spindles: 1
  • Spindle speed range: 6000 rpm 1/MIN
  • Spindle motor power: 5.5 kW
  • Tool taper: SK40
  • Number of axis: 3

Movement

  • X-AXIS Movement: 6670 mm
  • Y-AXIS Movement: 695 mm
  • Z-AXIS Movement: 585 mm

Table

  • Table load: 500 kg

    Additional Equipment

    • - Heidenhain HR130 handwheel: Yes
    • - Control panel: Can be moved along the entire length
    • - Tool cooling: By compressed air/cold air down to -20°C
    • - Automatic central lubrication system: Yes
    • - Chip tray: With 6 drawers
    • - Safety fencing: Yes
    • - Special hydraulic/pneumatic clamping unit: 2x4-fold for bar and profile processing
    • - Quick clamping units: 6 4-fold per side
    • - Pendulum operation: 2 working areas with 2650 mm processing length each
    • - Tool Changer: 12-position tool changer with disc magazine

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Clamping stroke: 55 mm
        • - Clamping range: 28-80 mm
        • - Safety zone: 1200 mm
        • - Long machining length of 6500 mm, tool cooling by compressed air/cold air down to -20°c, pendulum operation with 2 working areas for increased efficiency
      • Qualitative Machine Benefits:
        • - Precision control with heidenhain itnc 620, enhanced safety with safety fencing and safety zone

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
