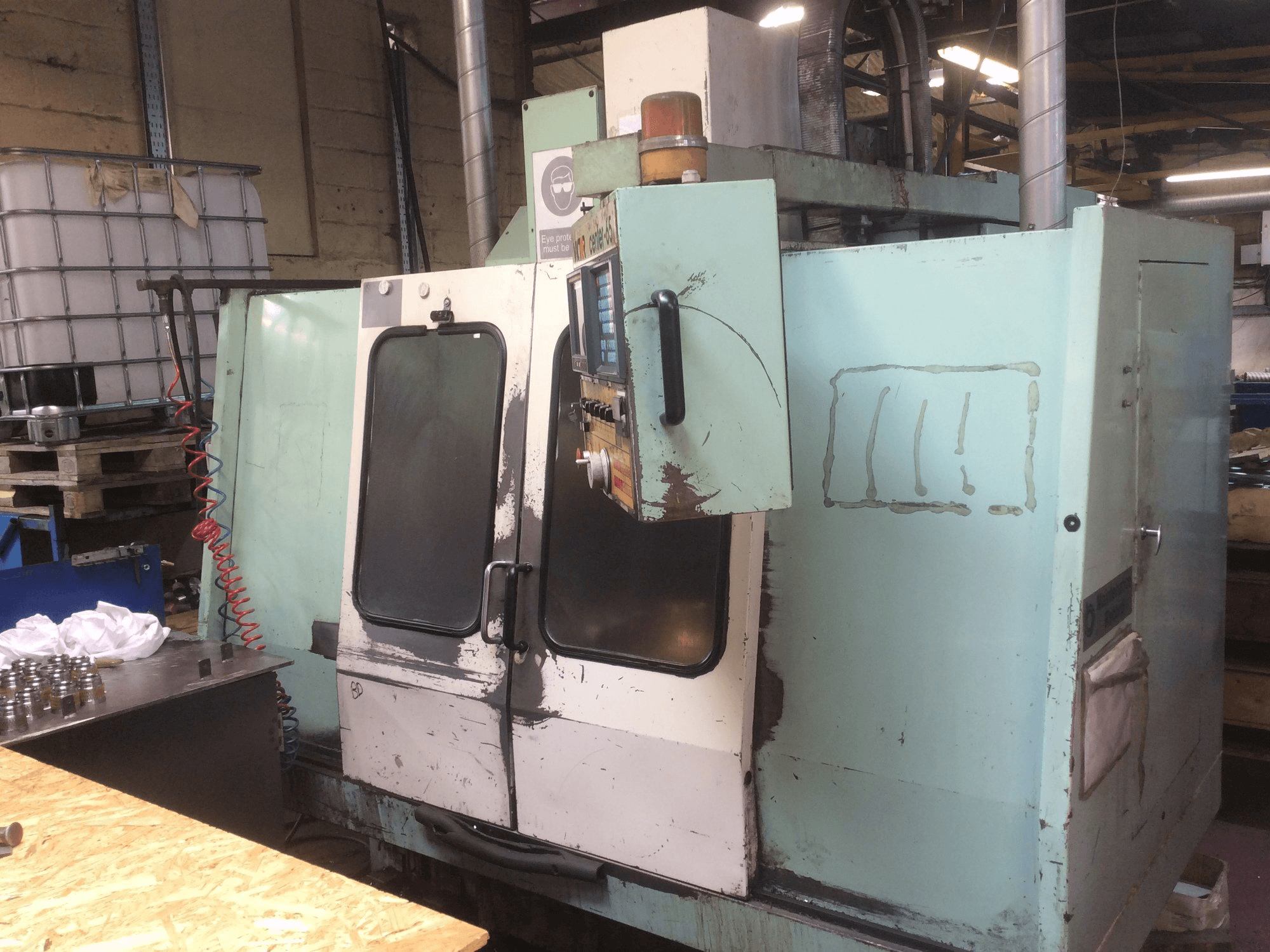

Victor V Center-65 Vertical Machining Center

This Victor V Center-65 Vertical Machining Center was built in Taiwan in 1994. It is operated with a FANUC Series O-M control unit. This machine operates with a spindle speed up to 6000 rpm. It presents good conditions, as it has been well maintained.

Overview

brand: Victor
year: 1994
MODEL: V Center-65
application type: Milling
Location: Ireland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - Victor V Center-65

General Data

Measurements width: 2510 mm
Measurements depth: 2800 mm
Measurements height: 2300 mm
Machine weight: 6000 kg

Control Unit

Model: Series O-M
CNC main language: English
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 6000 rpm 1/MIN

Movement

X-AXIS Movement: 650 mm
Y-AXIS Movement: 410 mm
Z-AXIS Movement: 510 mm

Table

Outer length: 890 mm
Outer width: 400 mm
TSlots size: 3

Tools

Slots in storage: 24
Max weight: 6 kg
Max tool diameter: 125 mm
Max tool length: 300 mm
Type of tool holder: BT40

Media

Main electronic connection: 415 V
Power consumption: 20 kVA

Additional Information

Machine Benefits

Qualitative Machine Benefits:
- - Well maintained machine

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
