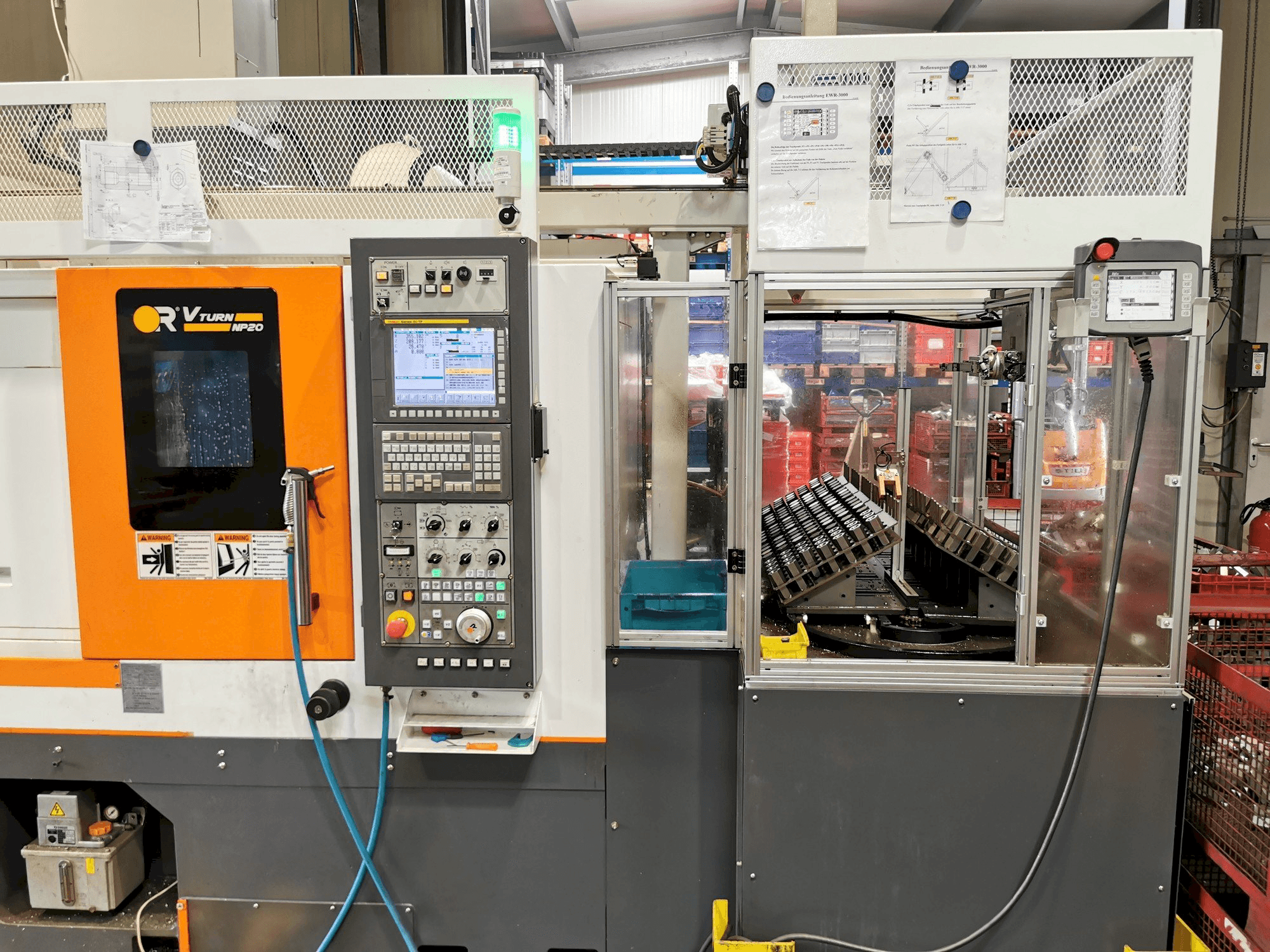

This Victor V Turn NP Lathe was manufactured in 2018 in Taiwan. It has a record of 6138 working hours, of which 2698 are running time and 945 are machining hours. This machine is equipped with a FANUC Series Oi-TF control unit. It can operate with a spindle speed up to 4200 rpm and a turning length 400 mm. This machine includes several options as 1 set of soft jaws and 1 servo turret with driven tools.

Overview

brand: Victor
year: 2018
MODEL: V Turn NP
production hours: 6138
application type: Turning
Location: Germany
machine type: Vertical Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Victor V Turn NP

General Data

Machine weight: 4300 KG

Control Unit

Model: SERIES 0I-TF
Brand: FANUC

Main drive

Spindle speed range: 4200 1/MIN
Spindle motor power: 7.5/15 kw

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 650 mm

Workpiece

Workpiece weight: 3 kg

Media

Main electronic connection: AC 200/220 V 50/60 HZ
Power consumption: 18 KVA
Chip conveyor: Yes

Additional Equipment

- 1 circle interpolation
- 1 coolant system with pump SPK2-3 AC 0.25 kw
- 1 hydraulic power chuck 8'' with hollow clamping cylinder and draw tube
- 1 set of soft jaws
- 1 servo turret with driven tools
- 1 chip conveyor with chip carriage (rear chip ejector)
- 1 complete splash guard with sliding door
- 1 automatic central lubrication with pump and motor AND 1 workpiece counter
- 1 machine lamp (built-in) AND 1 PCMCIA interface 1 RJ 45 interface standard
- 1 set of hand tools and manuals (CD)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Turning diameter 260 mm and turning length 400 mm
- - Spindle diameter 52 mm and chuck diameter 200 mm
- - 12 driven bmt 55 tool holders
- - Feed speed 90/90 m/min
- - Positioning accuracy +/- 0. 05 mm
- - Parts x long 120 x 140 mm (flange) 35 x 400 mm (shaft)
- - Loading magazine 20 -120 mm 30 kg / pallete
- - Turning station ts-03
- - For part size 3 kg 20 - 120 mm l-40-100 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
