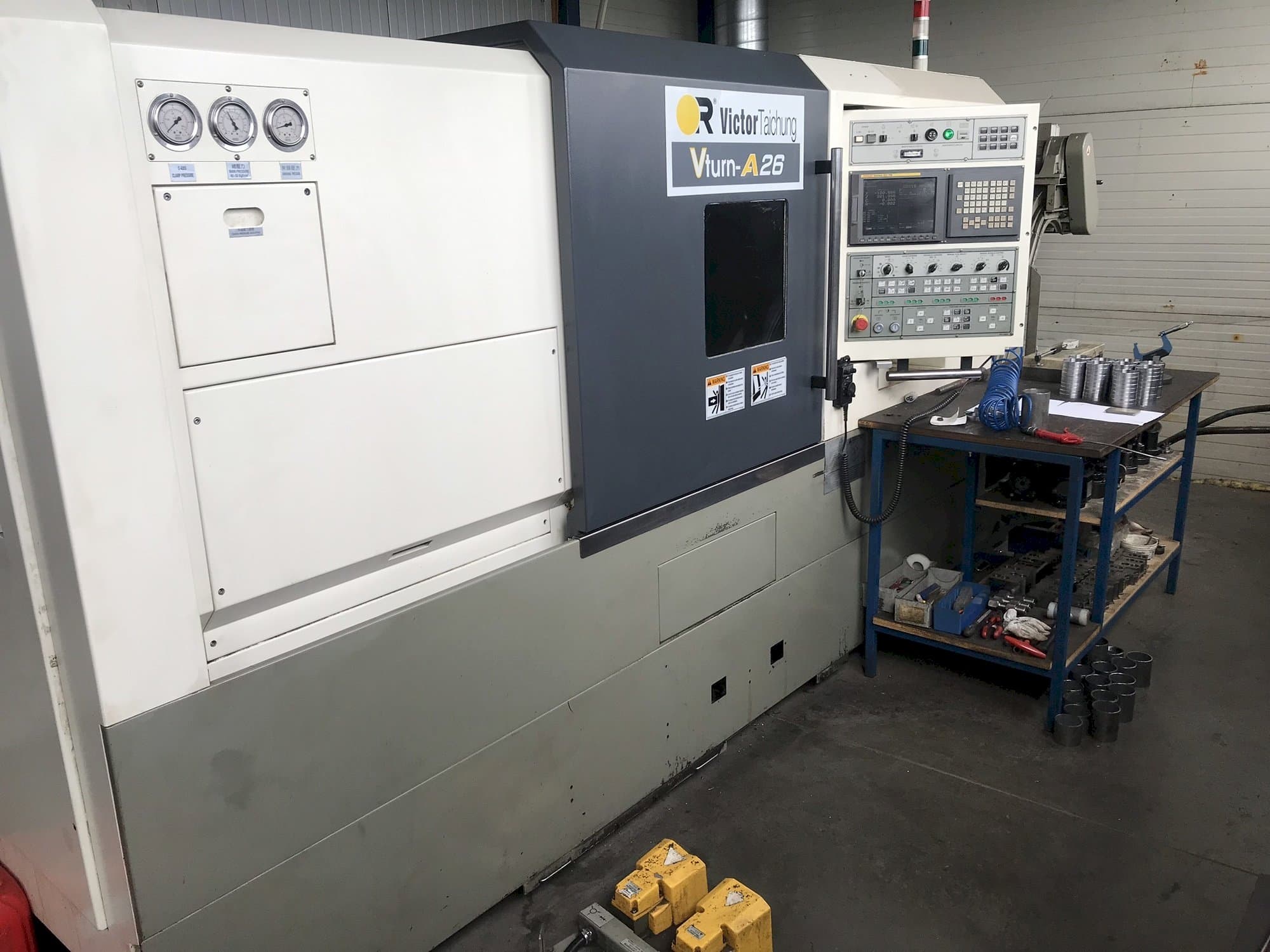

Victor Vturn-A26 Lathe

This Victor Vturn-A26 Lathe was built in 2011 in Taiwan. It has been working for only 2230 hours. It is equipped with a Fanuc Series 21i-TB control unit. This machine incorporates 1 spindle and can operate with a spindle speed up to 3500 rpm. It includes 3 sets of jaws, 24 pcs of tool holders (5 driven), and a 12“ hydraulic chuck.

Overview

brand: Victor
year: 2011
MODEL: Vturn-A26
production hours: 2230
application type: Turning
Location: Slovakia
machine type: Vertical Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Victor Vturn-A26

Control Unit

Model: Series 21i-TB
CNC main language: Czech
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 3500 1/MIN
Spindle motor power: 15/22 kW

Movement

X-AXIS Movement: 142,5 mm + 117,5 mm
Z-AXIS Movement: 850 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 12
Max tool diameter: 40 mm
Max tool length: 25 mm

Media

Main electronic connection: 380 V
Power consumption: 44 kVA
Chip conveyor: Yes

Additional Equipment

- 12“ hydraulic chuck
- 3 sets of soft jaws
- 24 pcs of tool holders (5 driven)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed 900 mm
- - Max. Turning diameter 351 mm
- - Turning length 950 mm
- - Spindle bore diameter 86 mm
- - Vdi 40 victor turret with 12 positions (all for live tools)
- - Spindle dds with c axis indexed by 0. 001 degree with a brake
- - High-pressure cooling grundfos spk 2-3
- - Manual arm with renishaw tool probe
- - Programmable tailstock

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
