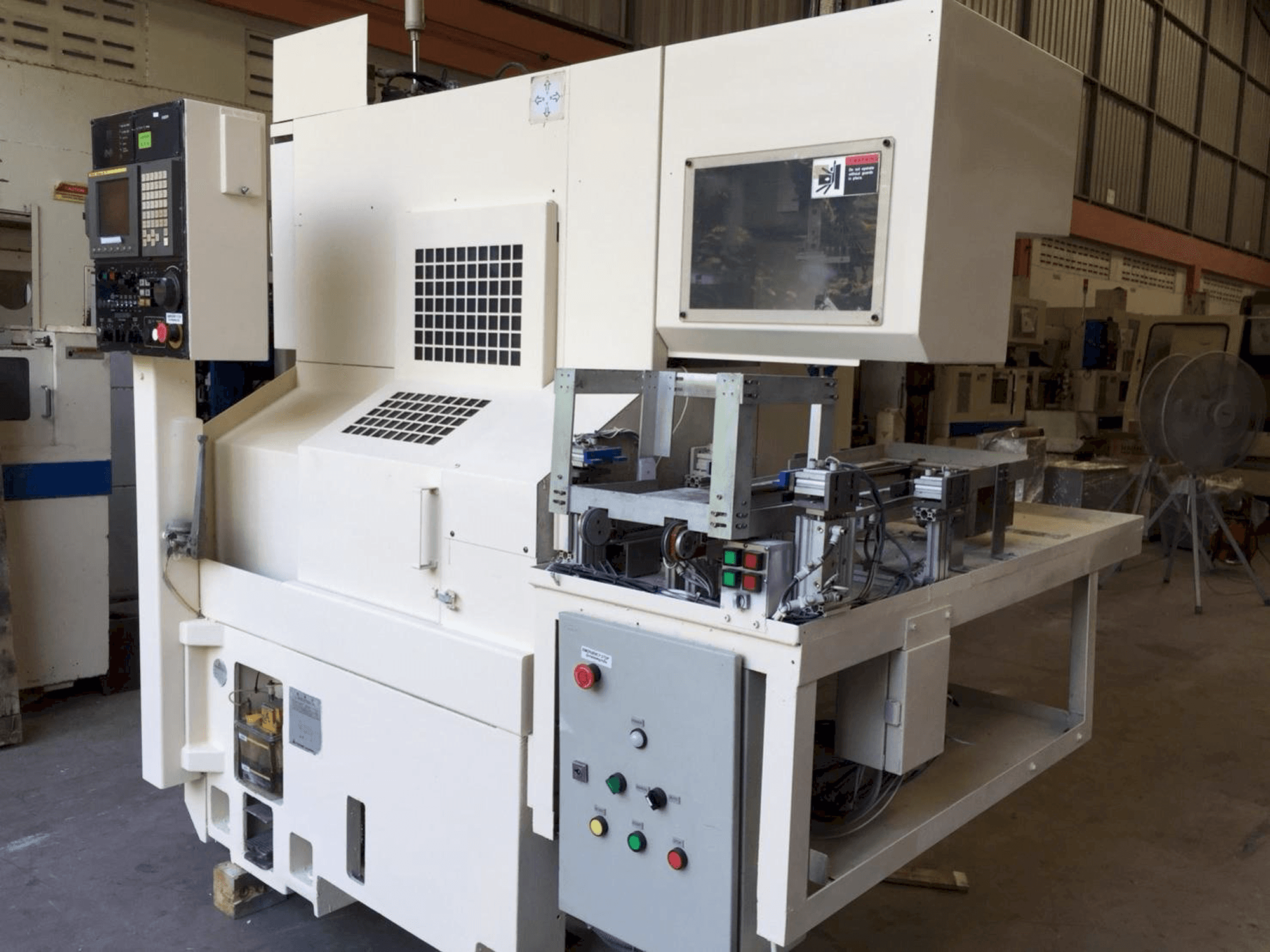

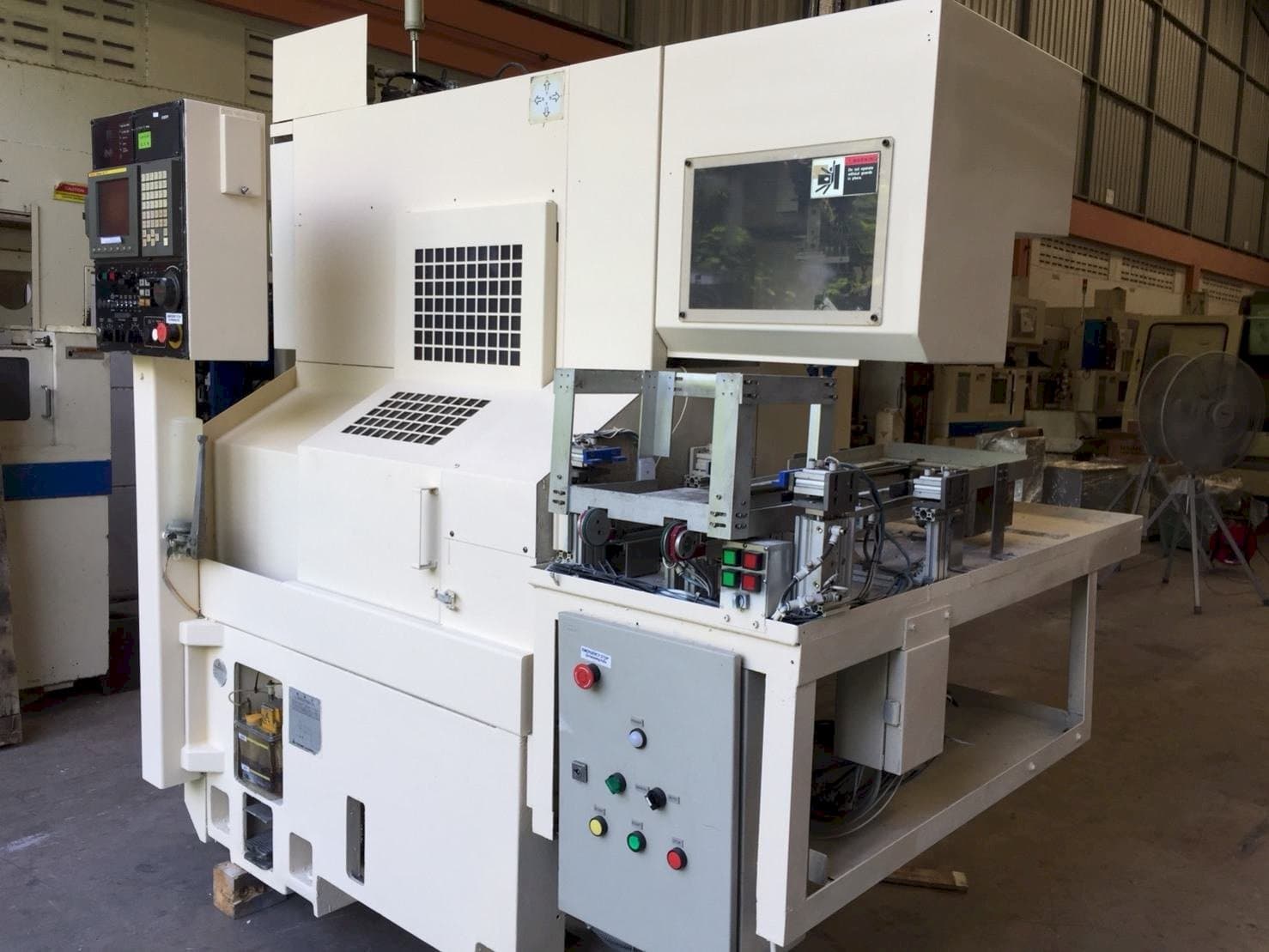

WASINO G-05 Lathe

This WASINO G-05 Lathe was produced in 2003 in Spain. Operated through a FANUC 21i-T Control unit, this machine can perform with a spindle speed up to 8000 rpm.

Overview

brand: WASINO
year: 2003
MODEL: G-05
application type: Grinding
Location: India
machine type: Surface Grinding Machine
availability: Sold
control unit brand: FANUC

Technical Information - WASINO G-05

General Data

Measurements width: 1879 mm
Measurements depth: 1295 mm
Measurements height: 1676 mm

Control Unit

Model: 21i-T
CNC main language: English
CNC language customizable: Yes
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 8000 rpm 1/MIN

Movement

X-AXIS Movement: 221 mm
Y-AXIS Movement: 221 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Turning diameter: 50 mm
- - Turning length: 40 mm
- - Chucking diameter: 100 mm
- - Spindle nose mount: a 2-4

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
