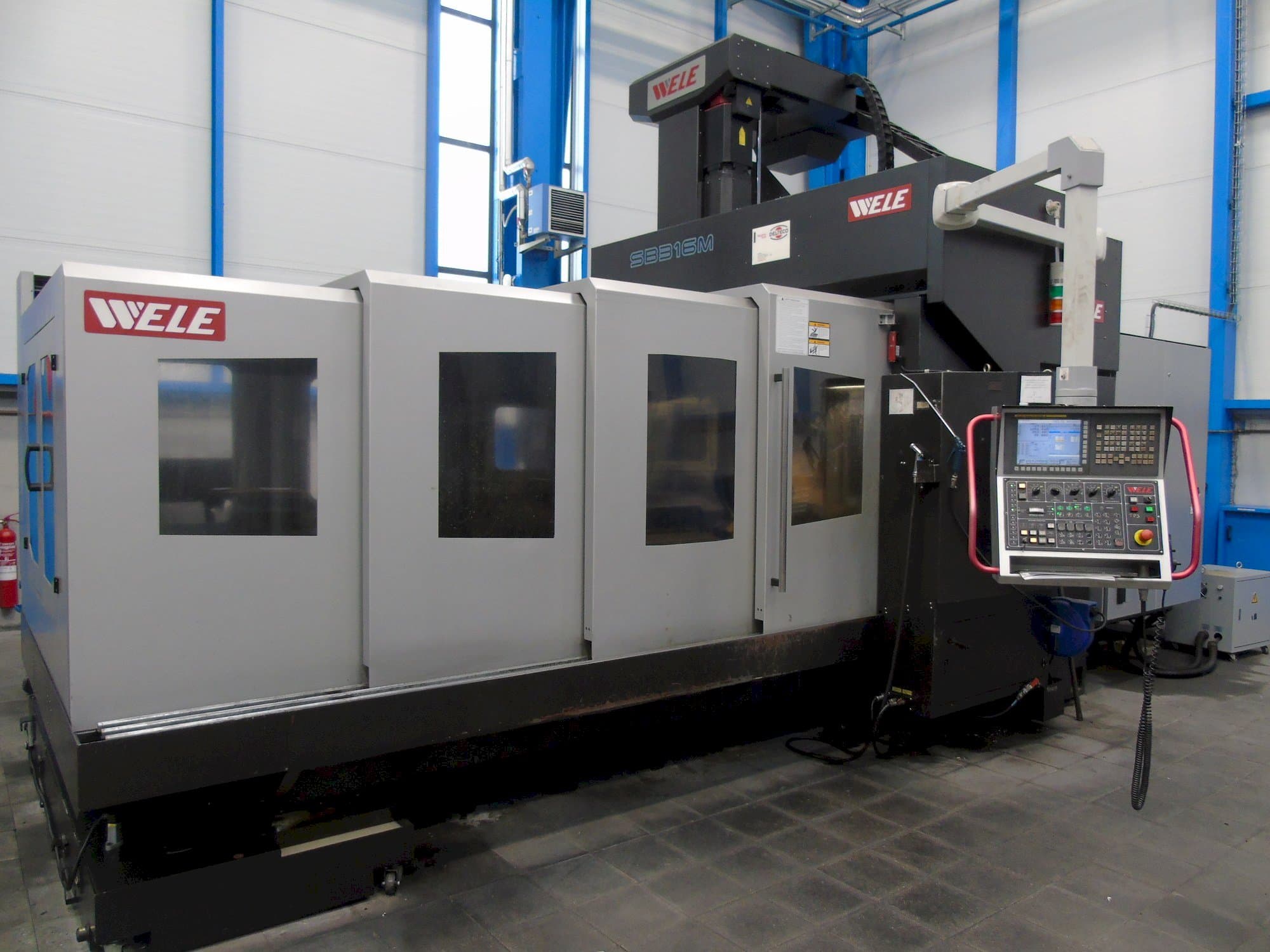

Wele SB-316M Vertical Machining Center

This Wele SB-316M Vertical Machining Center, produced in the year 2013. It has been working for 22718 hours. The machine is equipped with a Fanuc Series 31 iB control unit. It can work with a spindle speed range up to 6000 rpm. It presents good conditions.

Overview

brand: Wele
year: 2013
MODEL: SB-316M
production hours: 22718
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
availability: Sold
control unit brand: Fanuc

Technical Information - Wele SB-316M

General Data

Measurements width: 8300 mm
Measurements depth: 4650 mm
Measurements height: 4400 mm
Machine weight: 27000 kg

Control Unit

Brand: Fanuc
Model: 31 iB

Main drive

Number of spindles: 1
Spindle speed range: 6000 1/MIN

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 1600 mm
Z-AXIS Movement: 800 mm

Table

Outer length: 3000 mm
Outer width: 1500 mm

Tools

Slots in storage: 32
Max weight: 20 kg
Max tool diameter: 215 mm
Max tool length: 400 mm
Type of tool holder: BT50

Additional Information

Machine Benefits

Qualitative Machine Benefits:
- - Good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
